Moving Light

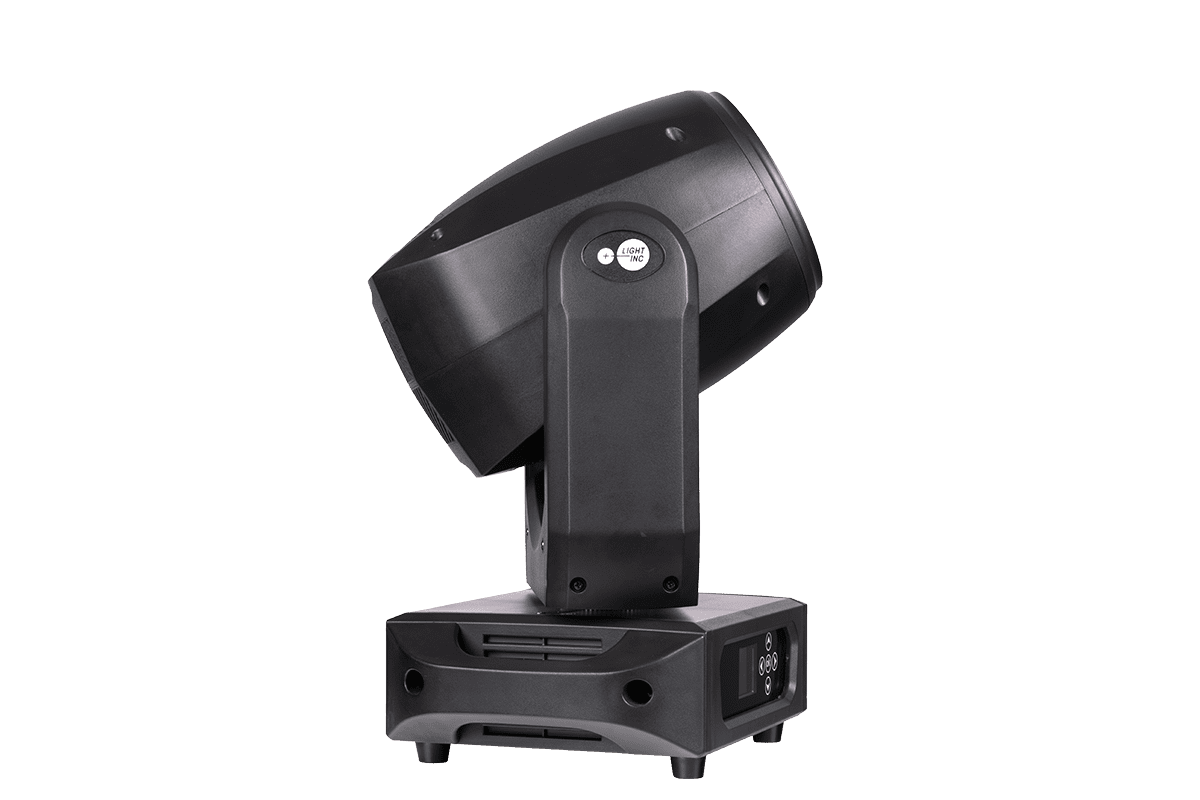

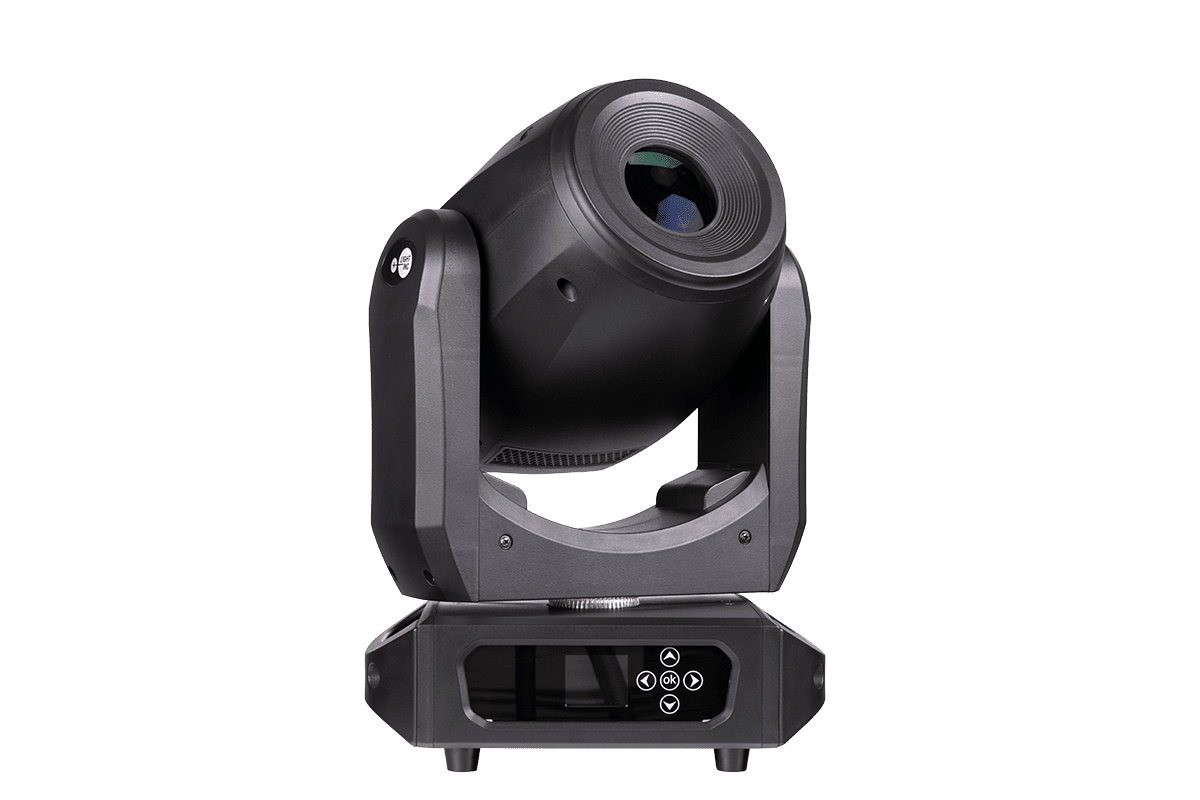

ERA SPOT-200 LED
200 Watt LED - Dual Prism - Color Wheel - Frost
SKU 8718868788177
1 / 11
Product details

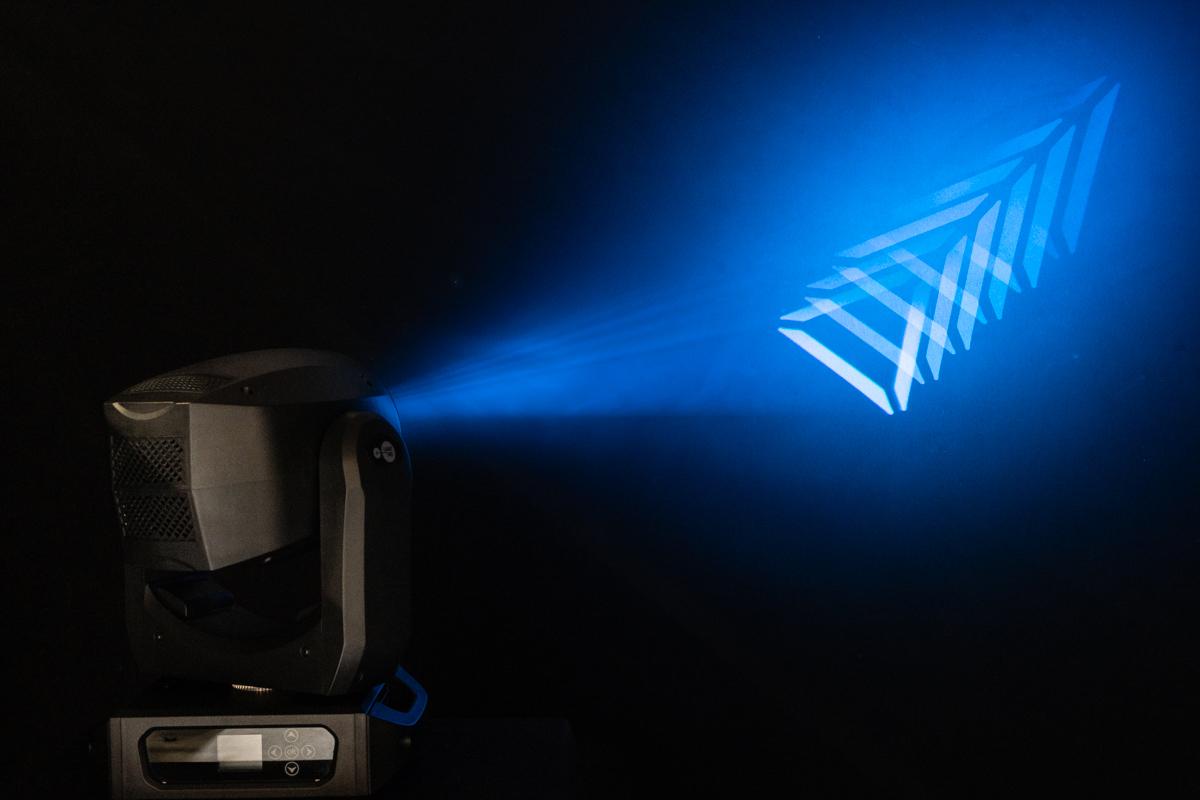

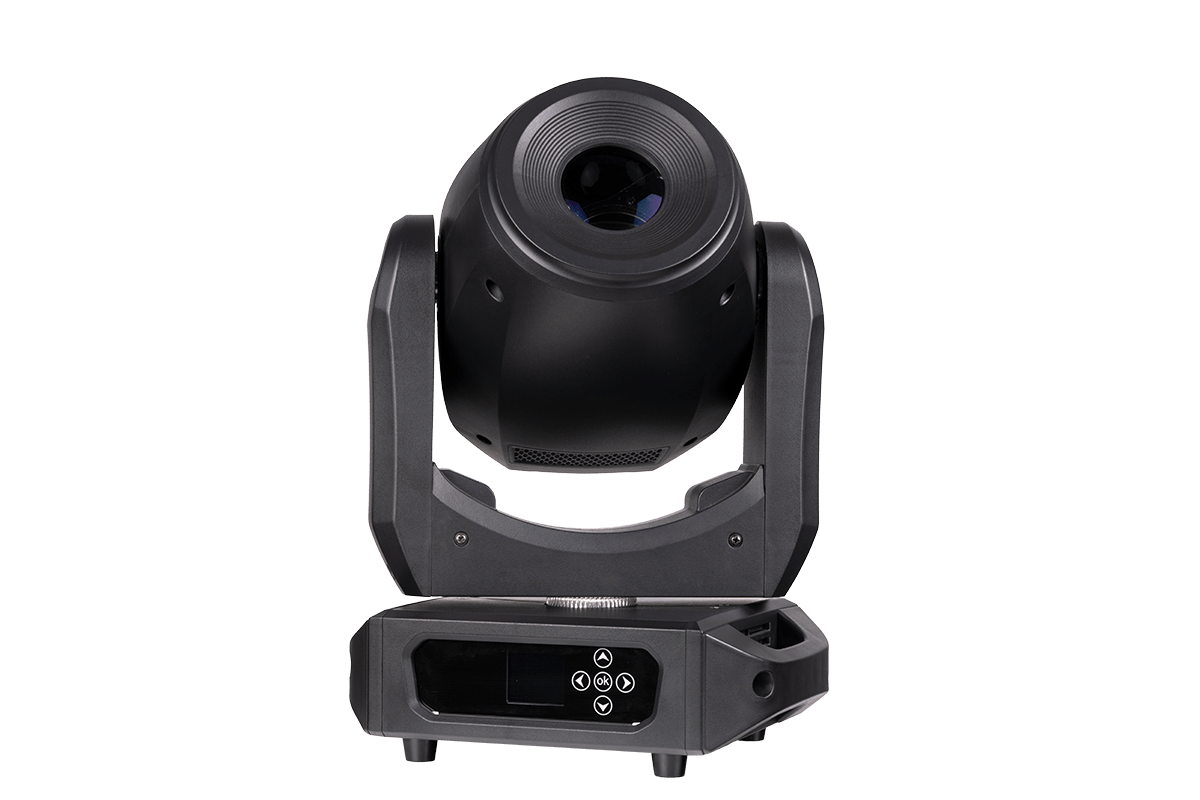

The ERA Spot-200 LED, the ultimate spot moving head that raises the bar for illumination, is now available. This fixture distinguishes out from the competition because to its potent 200 Watt LED source, which has an amazing 20,000 hours of longevity and a 7600K color temperature.
Utilize the ERA Spot-200’s precision lighting effects and smooth 0–100% dimming capabilities to create lighting effects with a 12° beam angle. With 14/16 DMX channels, a dual overlapping prism, and a linear frost system for more creative options, its versatility is unsurpassed. With its 180° reversible LCD vivid display and a number of operation modes, including DMX512, Master-Slave, Auto Run, and Music, the ERA Spot-200 provides a user-friendly experience. This moving head was created with ease and effectiveness in mind. It is small, light, and has Powercon in/out connections.
Specifications
Light source and output
- Light source
- 200 Watt LED (7600K, 20.000hrs)
Optics
- Beam angle
- 12°
Movement
- Pan / Tilt
- 540°/270°
- Pan / Tilt resolution
- 8/16 bit
Control
- DMX channels
- 14/16
- Display

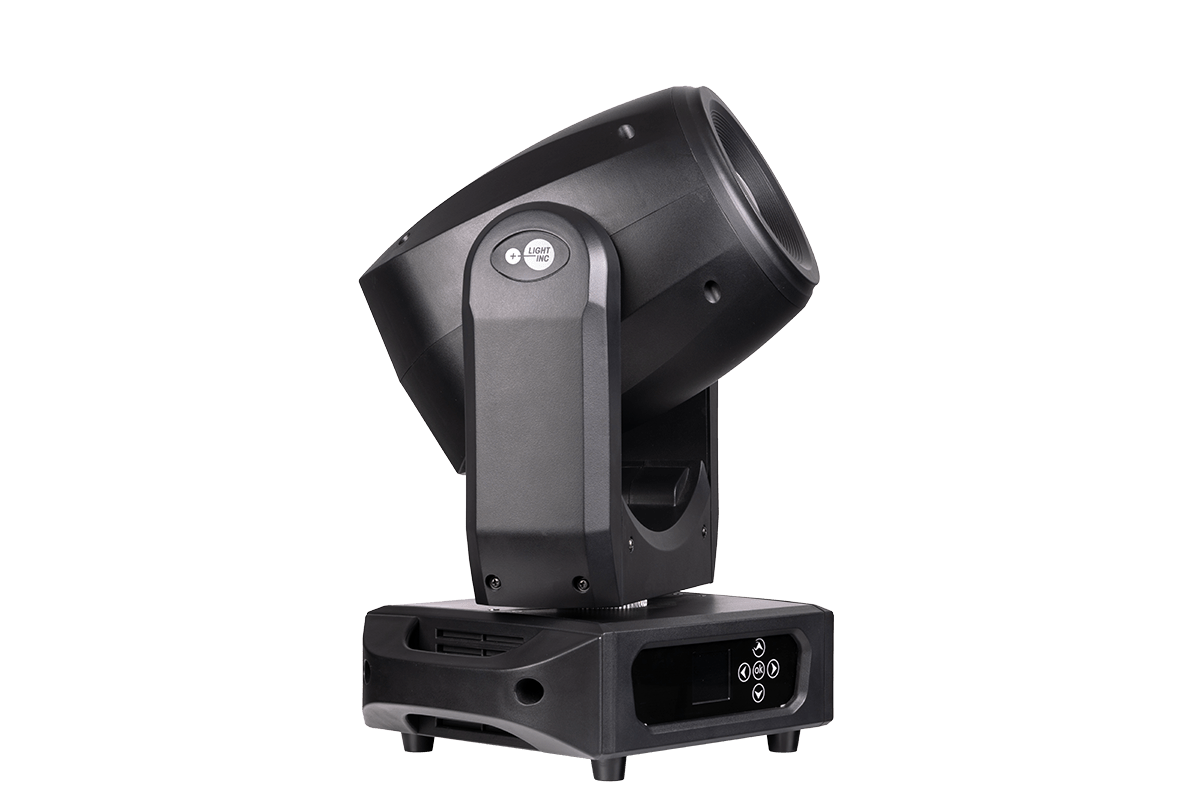

- 180° reversible LCD colorful display
- Operating modes
- DMX512/mater-Slave/Auto Run/Music
Connections
- Data connection

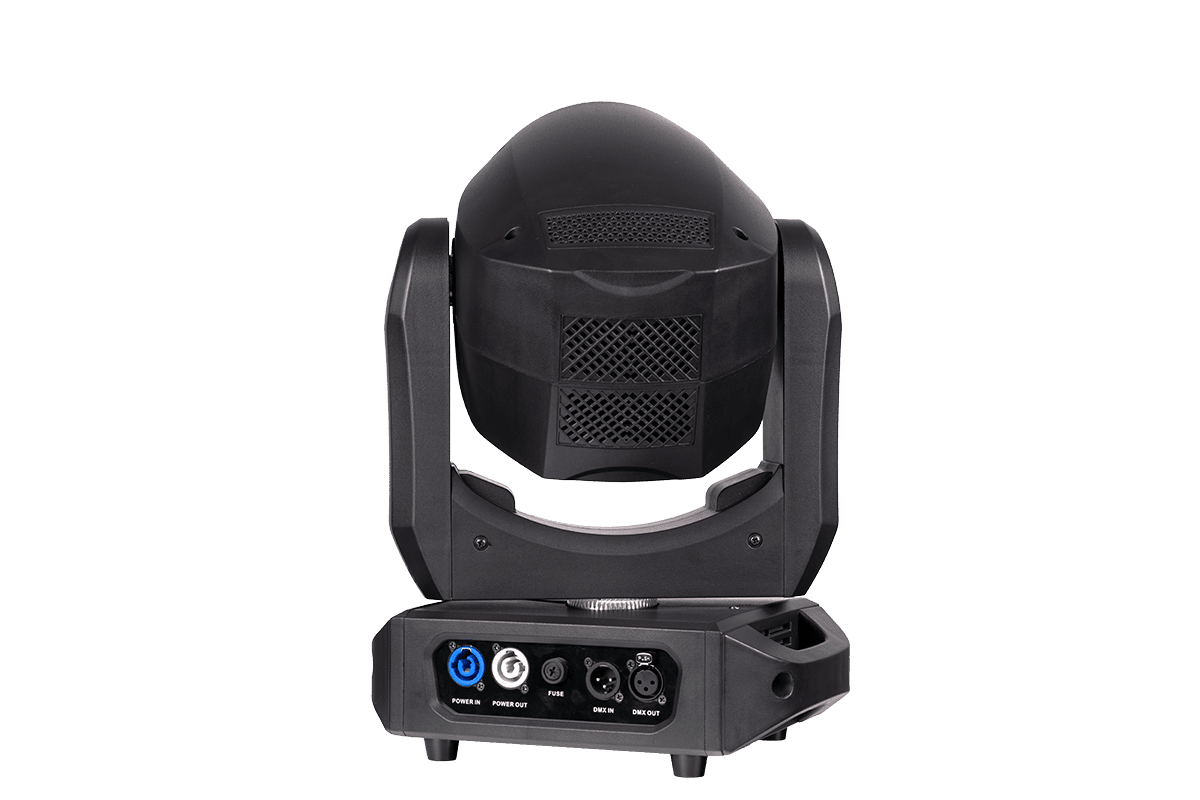

- 3-pin XLR sockets
- Power connection

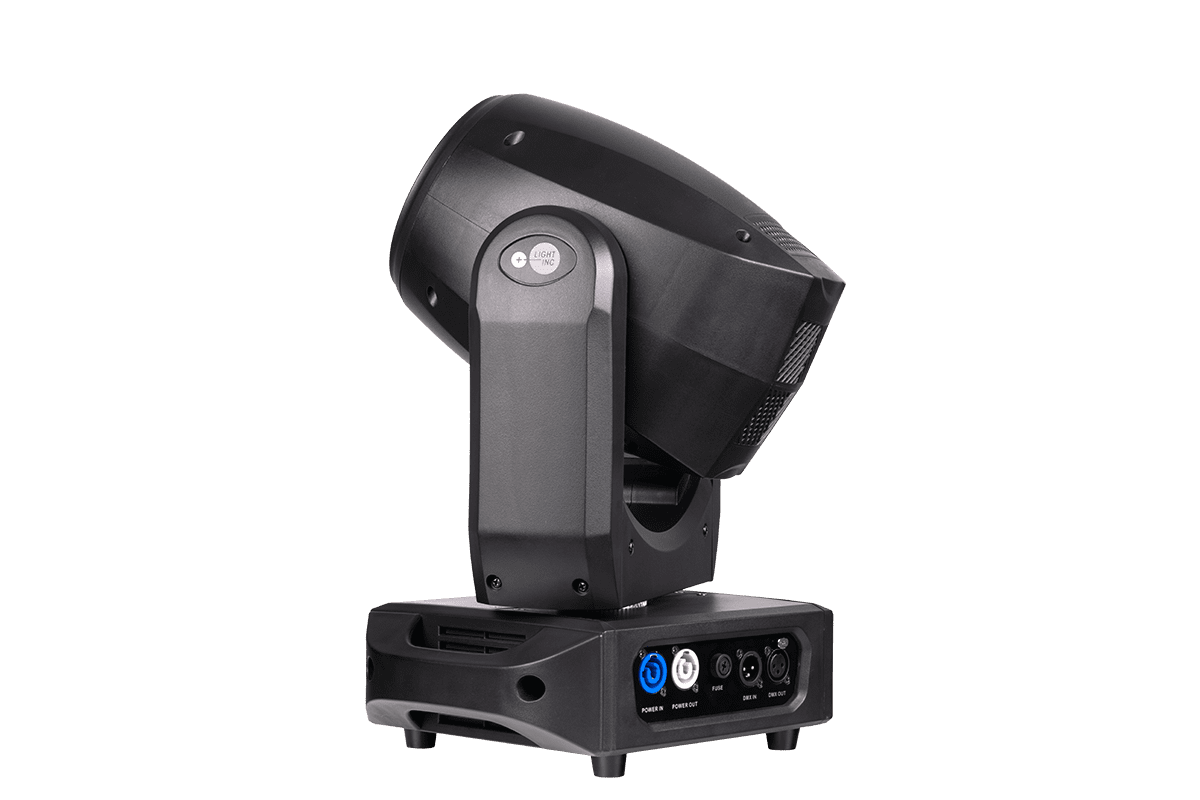

- Powercon in/out
Power
- Input voltage
- AC 100-240 V 50/60 Hz
- Power consumption
- 300 W
Physical
- Dimensions
- 293 mm × 205 mm × 416 mm
- Weight
- 9.3 kg
Protection
- Protection rating
- IP20
Features
- Dimmer 0-100% smooth dimming
- Dual overlapping prism
- Linear Frost system
Wheel tables and DMX values
DMX ranges and labels from the linked product manual.
Gobo
Manual ↓- DMX 0-7
- Open
- DMX 8-15
- Gobo1
- DMX 16-23
- Gobo2
- DMX 24-31
- Gobo3
- DMX 32-39
- Gobo4
- DMX 40-47
- Gobo5
- DMX 48-54
- Gobo6
- DMX 55-76
- Shake from slow to fast: Gobo 1
- DMX 77-98
- Shake from slow to fast: Gobo 2
- DMX 99-120
- Shake from slow to fast: Gobo 3
- DMX 121-142
- Shake from slow to fast: Gobo 4
- DMX 143-164
- Shake from slow to fast: Gobo 5
- DMX 165-186
- Shake from slow to fast: Gobo 6
- DMX 187-201
- Open
- DMX 202-227
- Clockwise rotation:Fast->Slow
- DMX 228-229
- Stop
- DMX 230-255
- Anti-clockwise rotation: Slow->Fast
