Moving Light

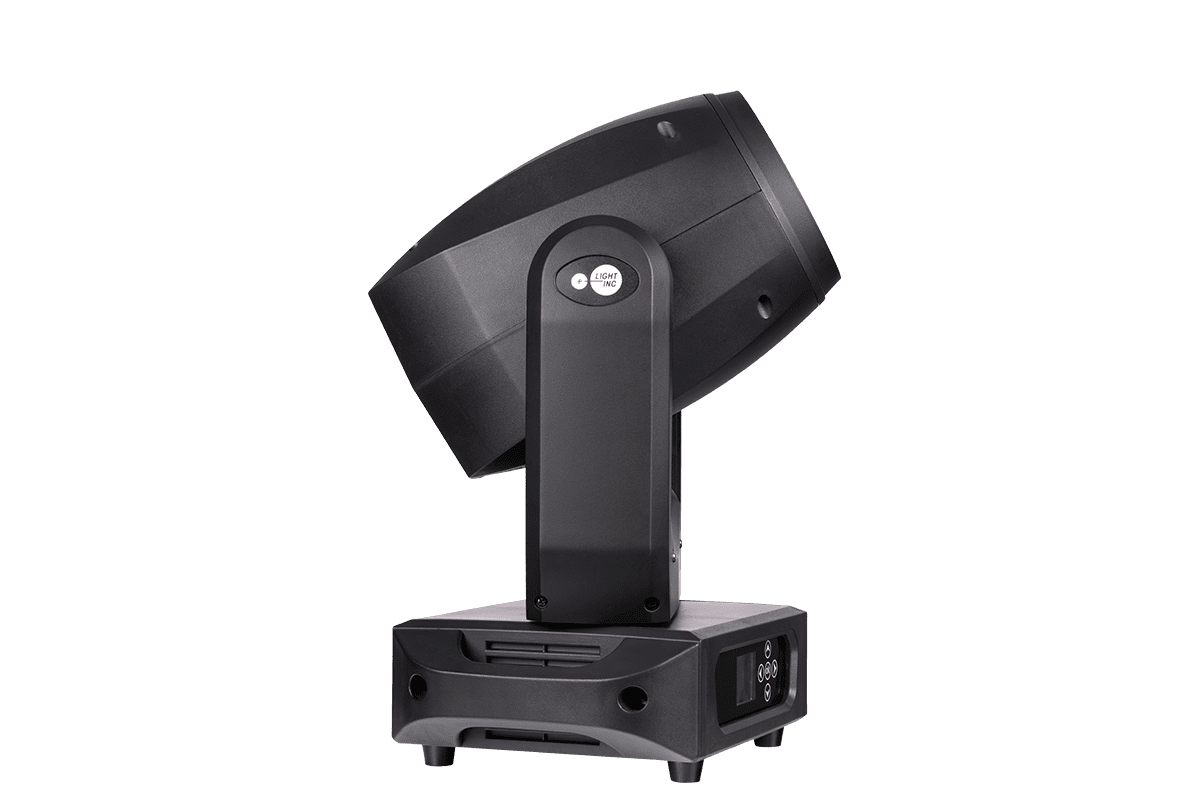

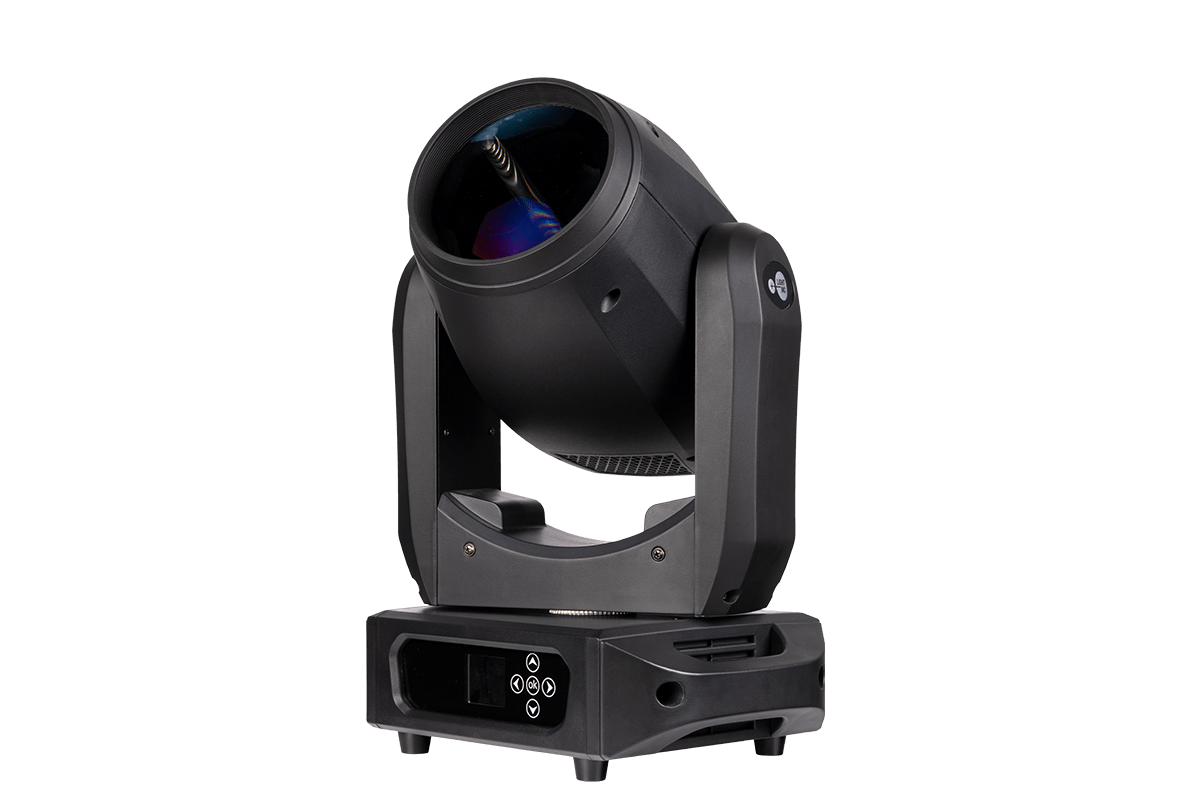

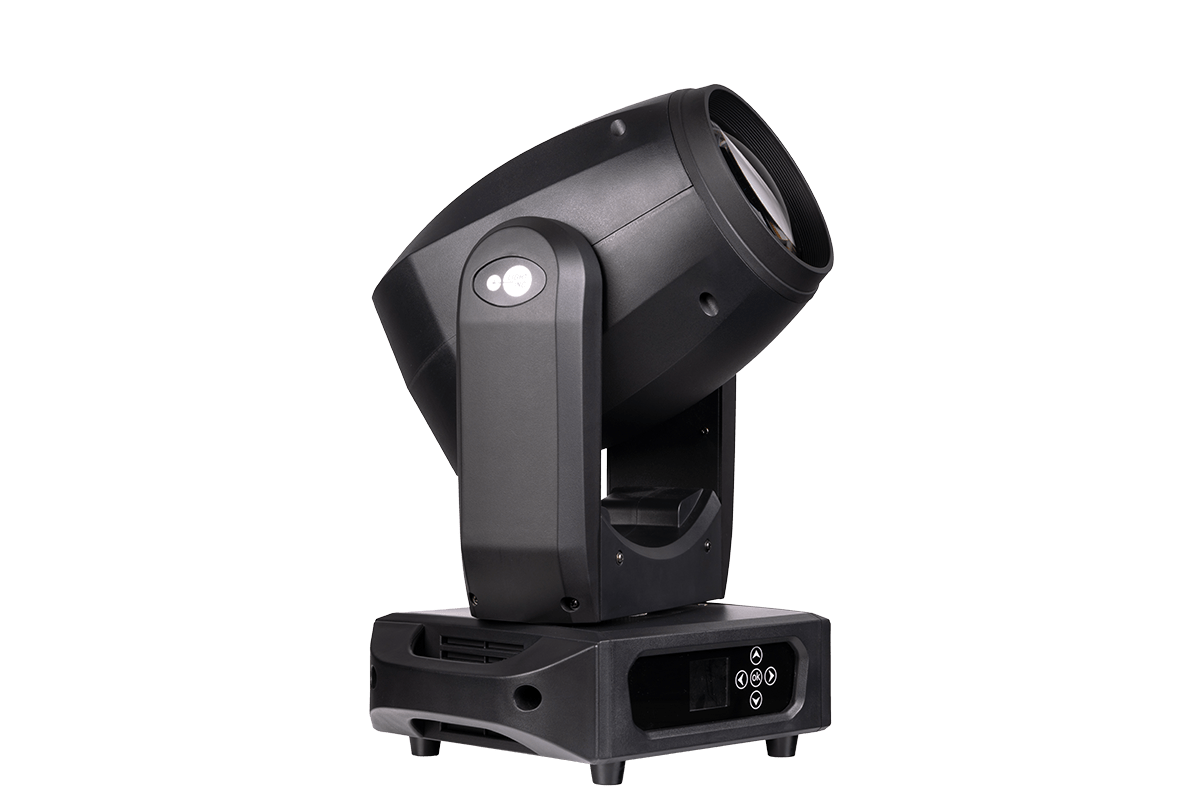

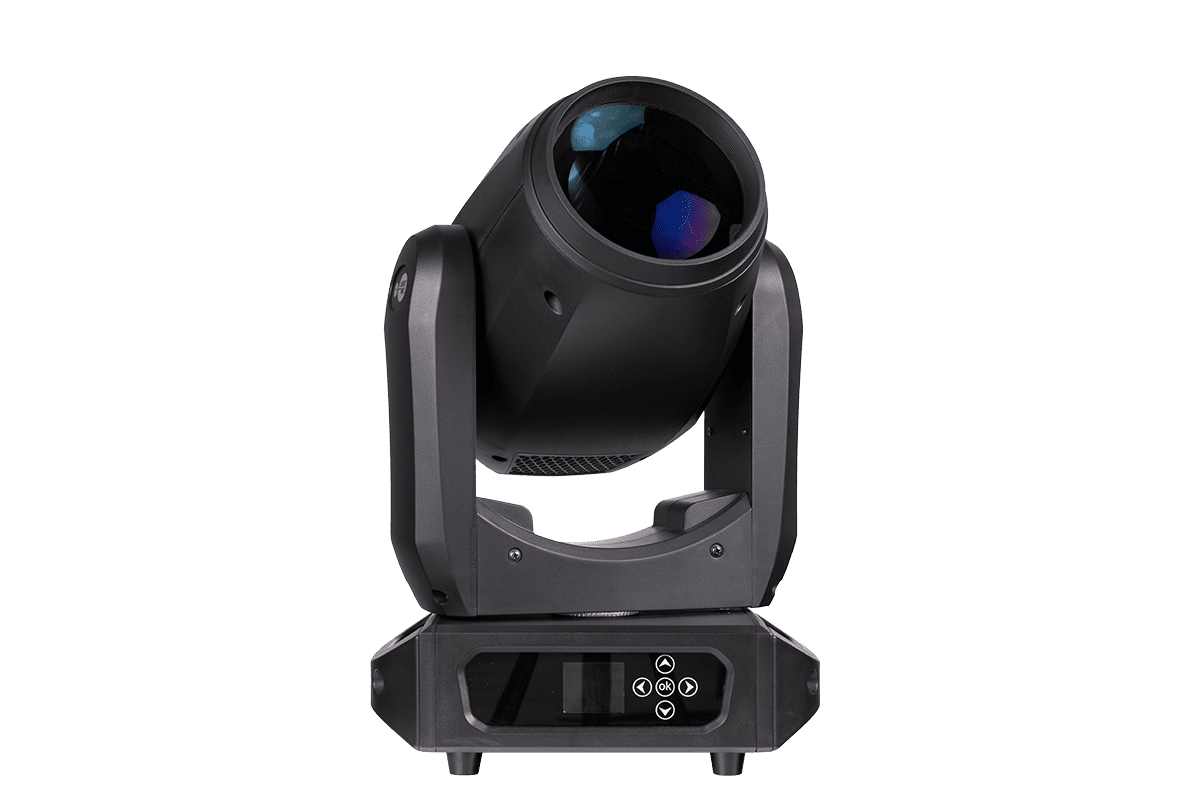

ERA BEAM-150X LED
150 Watt LED - Dual Prism - Color Wheel - Frost - Infinite Movement
SKU 8718868788180
1 / 10
Product details
Introducing the ERA Beam-150X LED, the highest-performing model in the new ERA series in terms of dependability, value, and quality. With its brilliant performance, which will literally shoot stars out of the sky, this 150 Watt LED Beam moving head is ready to dazzle.
Enjoy dazzling light displays with the 150 Watt LED source of the ERA Beam-150X LED, which has a fantastic 7800K color temperature and a phenomenal 20,000-hour longevity. The twin overlapping prism, linear frost system, and unlimited rotating tilt of this light source produce intriguing visual effects, while its ultra-narrow 2° beam angle, 14 colors, and 13 gobo settings offer limitless creative possibility. This fixture ensures seamless control and accuracy with a 180° reversible LCD colorful display, DMX512, Master-Slave, Auto Run, and Music operating modes, as well as smooth 0-100% dimming. The ERA Beam-150X LED is a portable powerhouse that adds breathtaking lighting effects to any event or stage while only weighing 10.2 kg.
Specifications
Light source and output
- Light source
- 150 Watt LED (7800K, 20.000hrs)
Optics
- Beam angle
- 2°
Movement
- Pan / Tilt
- 540°/270°
- Pan / Tilt resolution
- 8/16 bit
Control
- DMX channels
- 13/16
- Display
- 180° reversible LCD colorful display
- Operating modes
- DMX512/mater-Slave/Auto Run/Music

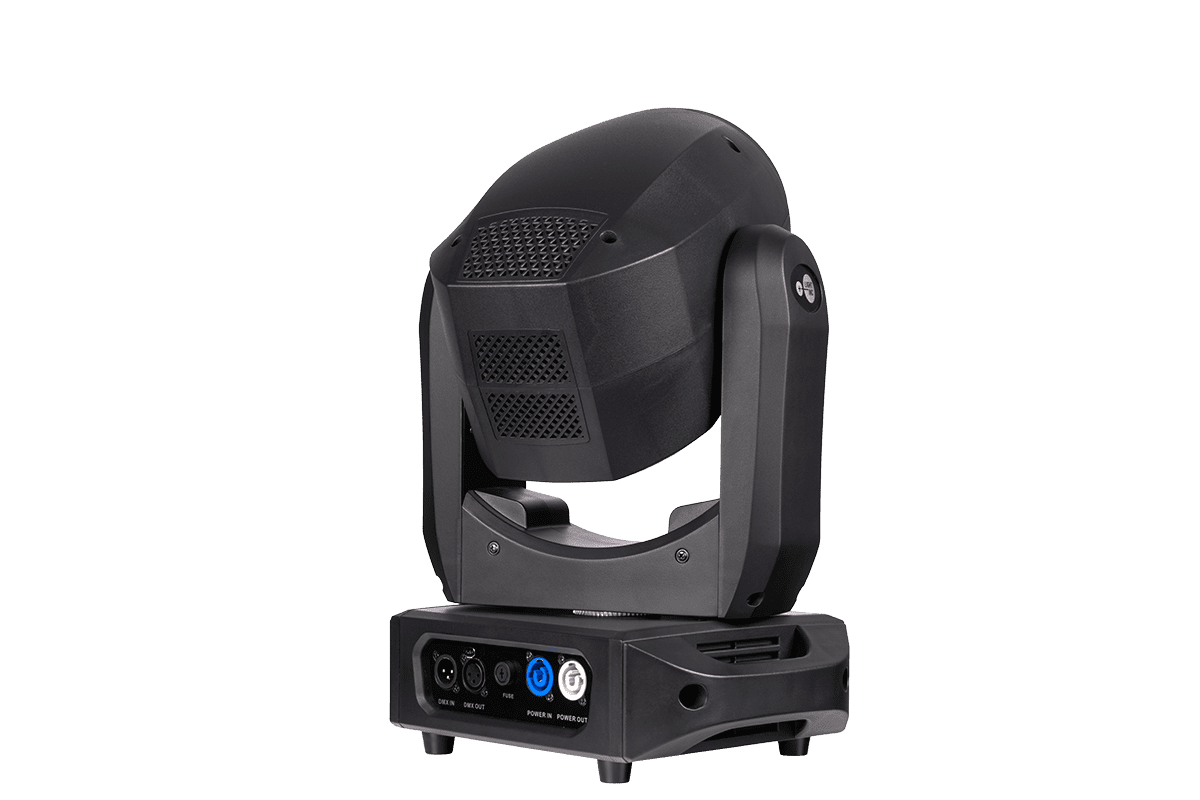

Connections
- Data connection
- 3-pin XLR sockets
- Power connection
- Powercon in/out
Power
- Input voltage
- AC 100-240 V 50/60 Hz
- Power consumption
- 200 W
Physical
- Dimensions
- 287 mm × 206 mm × 428 mm
- Weight
- 10,2 kg
Protection
- Protection rating
- IP20
Features
- Dimmer 0-100% smooth dimming
- 14 colors
- 13 gobo’s
- Endless rotating tilt
- Dual overlapping prism
- Linear Frost system
Wheel tables and DMX values
DMX ranges and labels from the linked product manual.
Colors
Manual ↓- DMX 0-4
- Open
- DMX 5-8
- Open+Color1
- DMX 9-12
- Color1
- DMX 13-17
- Color1+Color2
- DMX 18-21
- Color2
- DMX 22-25
- Color2+Color3
- DMX 26-29
- Color3
- DMX 30-34
- Color3+Color4
- DMX 35-38
- Color4
- DMX 39-42
- Color4+Color5
- DMX 43-46
- Color5
- DMX 47-51
- Color5+Color6
- DMX 52-55
- Color6
- DMX 56-59
- Color6+Color7
- DMX 60-63
- Color7
- DMX 64-68
- Color7+Color8
- DMX 69-72
- Color8
- DMX 73-76
- Color8+Color9
- DMX 77-81
- Color9
- DMX 82-85
- Color9+Color10
- DMX 86-89
- Color10
- DMX 90-93
- Color10+Color11
- DMX 94-98
- Color11
- DMX 99-102
- Color11+Color12
- DMX 103-106
- Color12
- DMX 107-110
- Color12+Color13
- DMX 111-115
- Color13
- DMX 116-119
- Color13+Color14
- DMX 120-123
- Color14
- DMX 124-127
- Color14+Open
- DMX 128-149
- Open
- DMX 150-202
- Clockwise rotation: Fast->Slow
- DMX 203-255
- Anti-clockwise rotation: Slow->Fast
Gobo
Manual ↓- DMX 0-4
- Open
- DMX 5-7
- Gobo1
- DMX 8-10
- Gobo2
- DMX 11-13
- Gobo3
- DMX 14-16
- Gobo4
- DMX 17-19
- Gobo5
- DMX 20-22
- Gobo6
- DMX 23-25
- Gobo7
- DMX 26-28
- Gobo8
- DMX 29-31
- Gobo9
- DMX 32-34
- Gobo10
- DMX 35-37
- Gobo11
- DMX 38-40
- Gobo12
- DMX 41-43
- Gobo13
- DMX 44-54
- Open
- DMX 55-62
- Shake from slow to fast: Gobo 1
- DMX 63-70
- Shake from slow to fast: Gobo 2
- DMX 71-78
- Shake from slow to fast: Gobo 3
- DMX 79-86
- Shake from slow to fast: Gobo 4
- DMX 87-94
- Shake from slow to fast: Gobo 5
- DMX 95-102
- Shake from slow to fast: Gobo 6
- DMX 103-110
- Shake from slow to fast: Gobo 7
- DMX 111-118
- Shake from slow to fast: Gobo 8
- DMX 119-126
- Shake from slow to fast: Gobo 9
- DMX 127-134
- Shake from slow to fast: Gobo 10
- DMX 135-142
- Shake from slow to fast: Gobo 11
- DMX 143-150
- Shake from slow to fast: Gobo 12
- DMX 151-158
- Shake from slow to fast: Gobo 13
- DMX 159-201
- Open
- DMX 202-227
- Clockwise rotation: Fast->Slow
- DMX 228-229
- Stop
- DMX 230-255
- Anti-clockwise rotation: Slow->Fast
