Static light

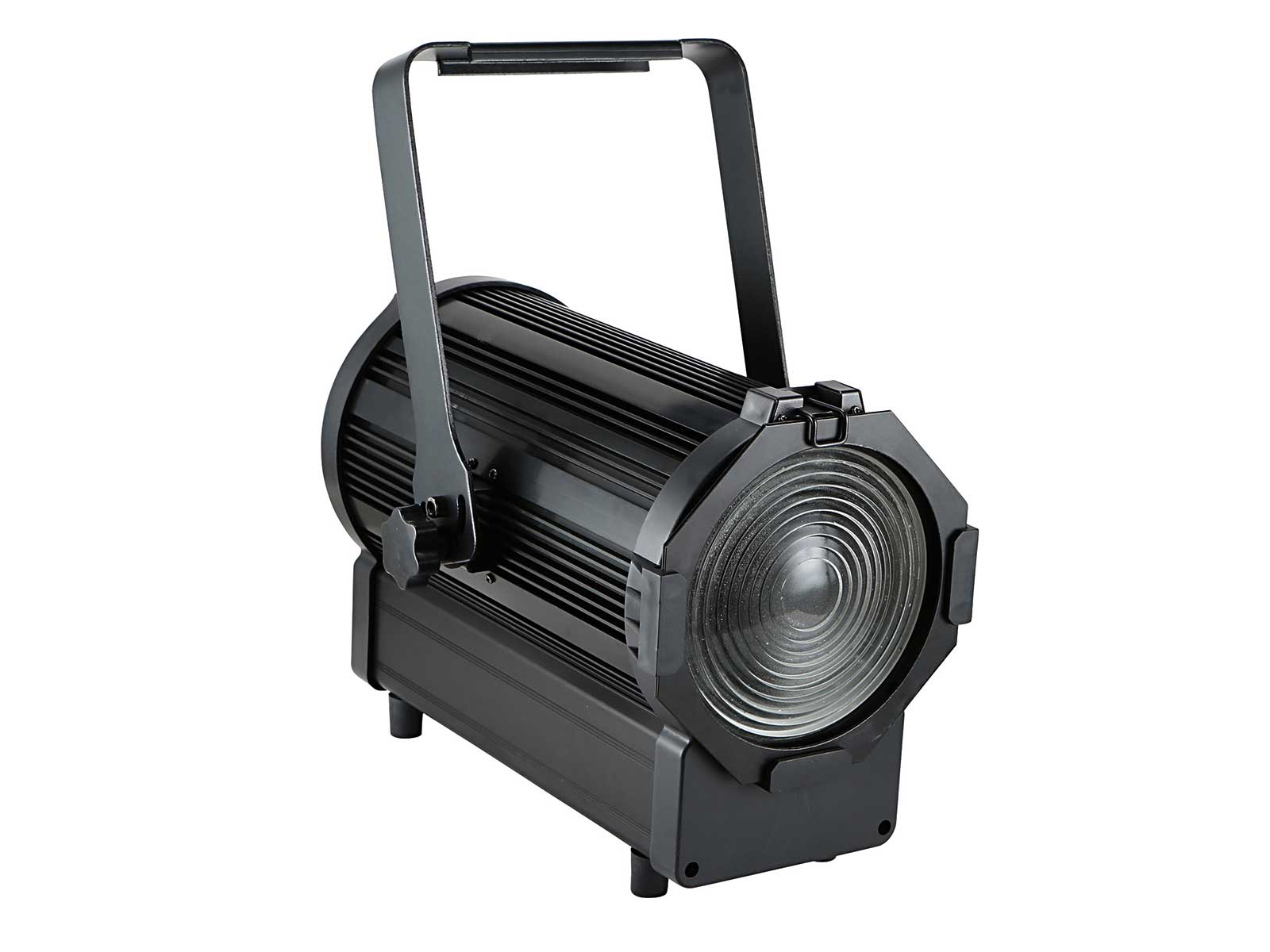

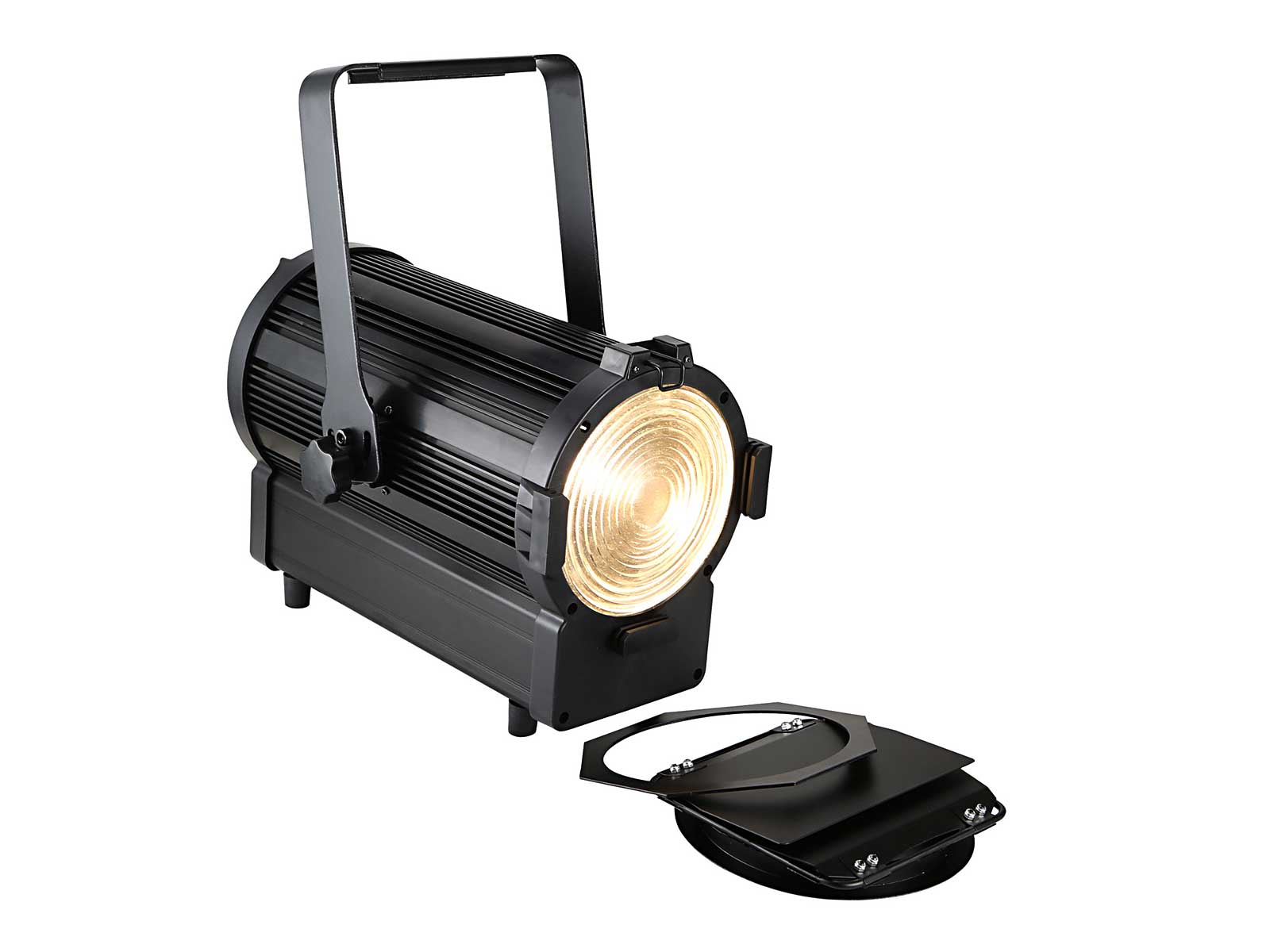

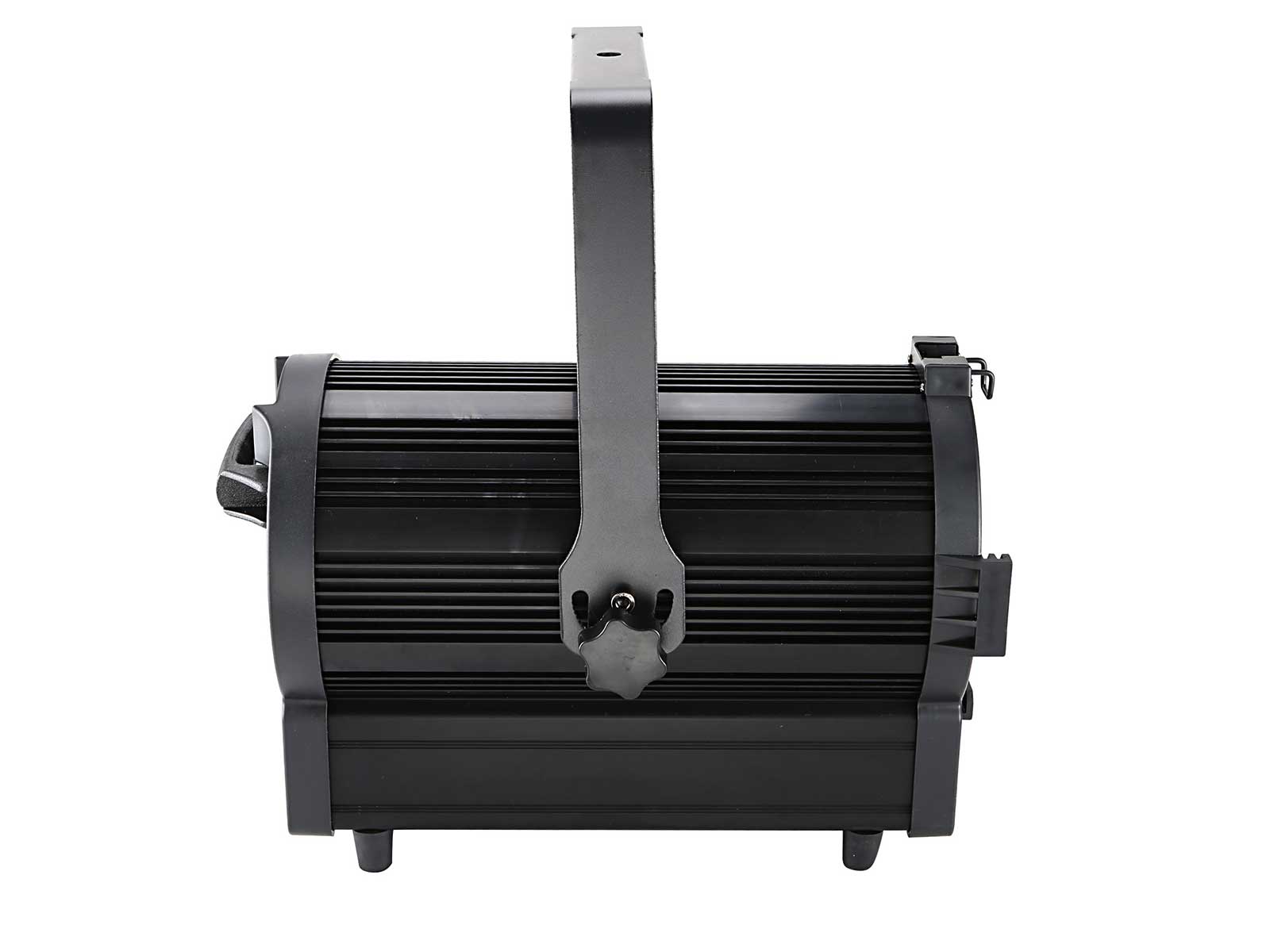

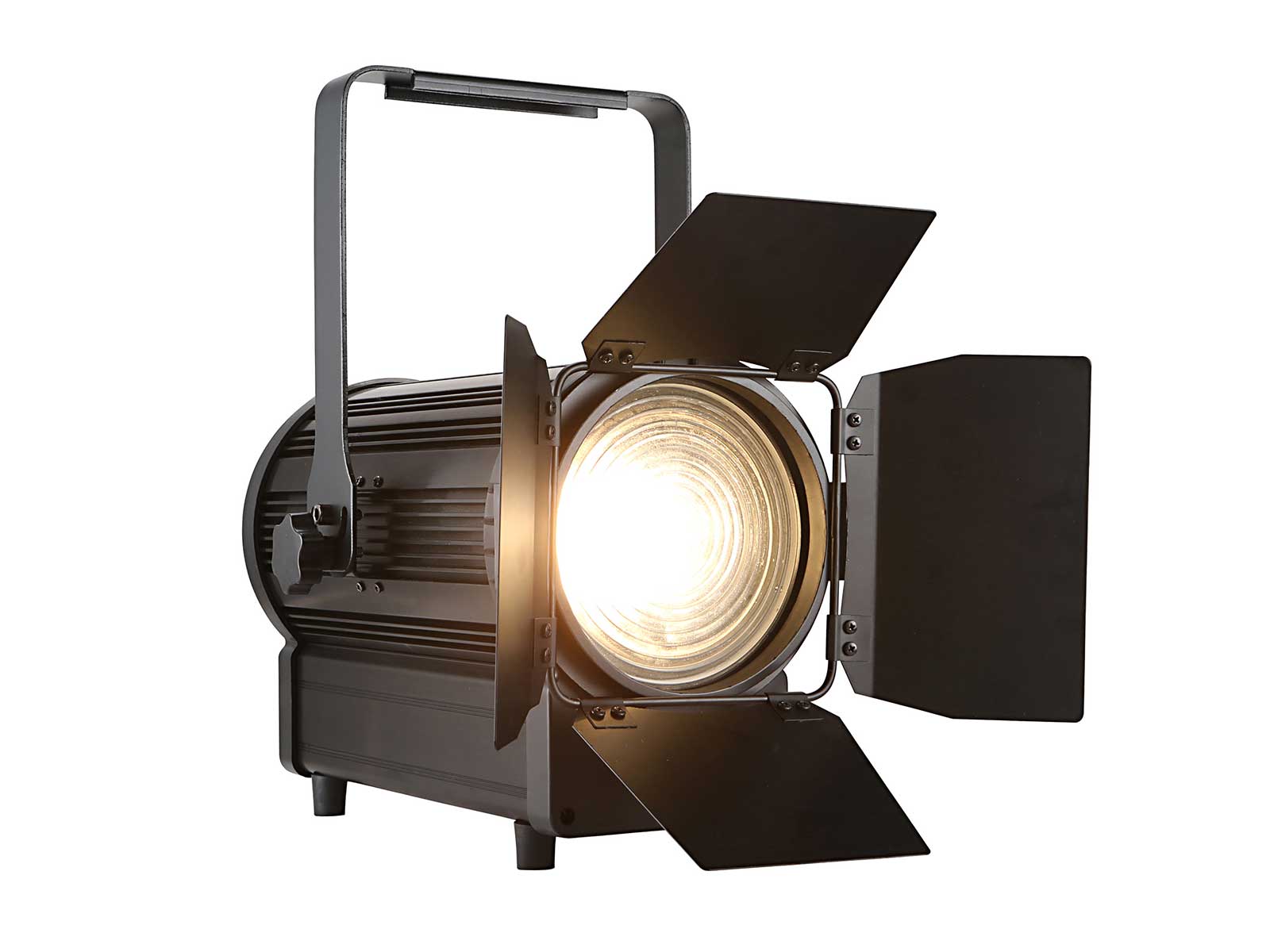

Theater Fresnel
High-end lighting equipment, the Theater Fresnel is intended for use on stages and in theaters. It has a 250W COB warm white LED with an average lifetime of 50,000 hours. Using the motorized zoom, you may adjust the beam angle from 15 to 52 degrees. It guarantees precise and even lighting with a CRI of over 95 and flicker-free operation.
SKU 8718868788320
1 / 6
Product details
The fixture features master/slave, DMX512, and stand-alone modes and supports 3-channel DMX control. It is strong and dependable because its housing is made of die-cast aluminum. The Theater Fresnel has PowerCON in and out connections and consumes 300 watts of electricity. It is a sturdy and adaptable lighting system, measuring 278 x 455 x 292mm and weighing 10.1 kg.
Specifications
Light source and output
- Light source
- 250 W COB warm white led
- Color temperature
- 3200 K
- CRI
- >95, flicker-free
- Lifetime
- 50.000 Hours
Optics
- Zoom (motorized)
- 15-52 degrees
Control
- Control
- master/slave, DMX512 control, stand-alone
- DMX channels
- 3 channels
- Display
- LCD display

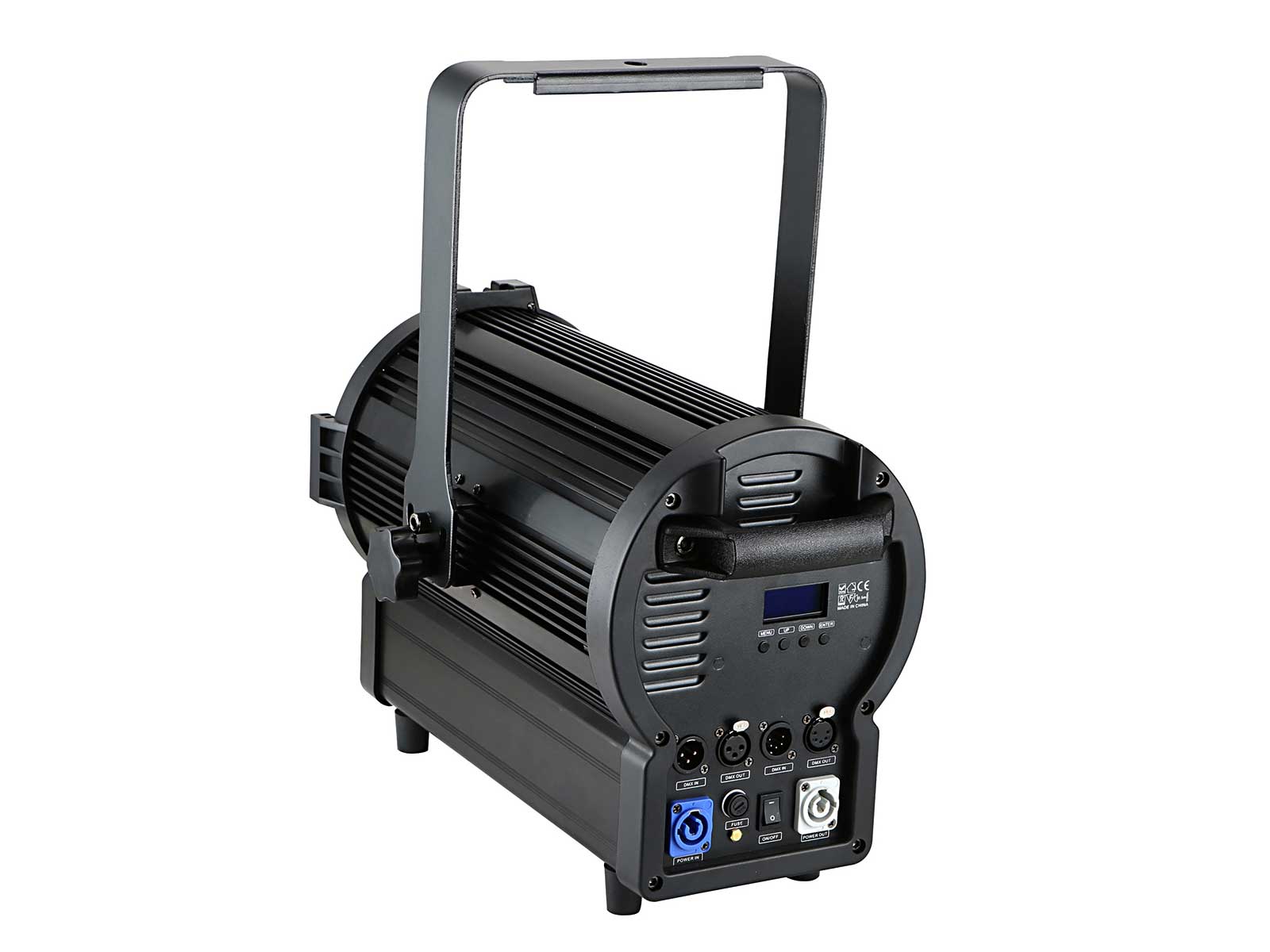

Connections
- Power connection
- powercon in & out
Power
- Input voltage
- 120 V/60 Hz, 230 V/50 Hz
- Rated power
- 300 watt
Physical
- Dimensions
- 278 × 455 × 292 mm
- Weight (net)
- 10.1 kg
- Housing
- die casting aluminium housing
Features
- 16-Bit drive, 4 dimming curve modes
- Heat pipe cooling system
Documentation
Contact support for the current manual, DMX chart or fixture profile.
Request documentation
