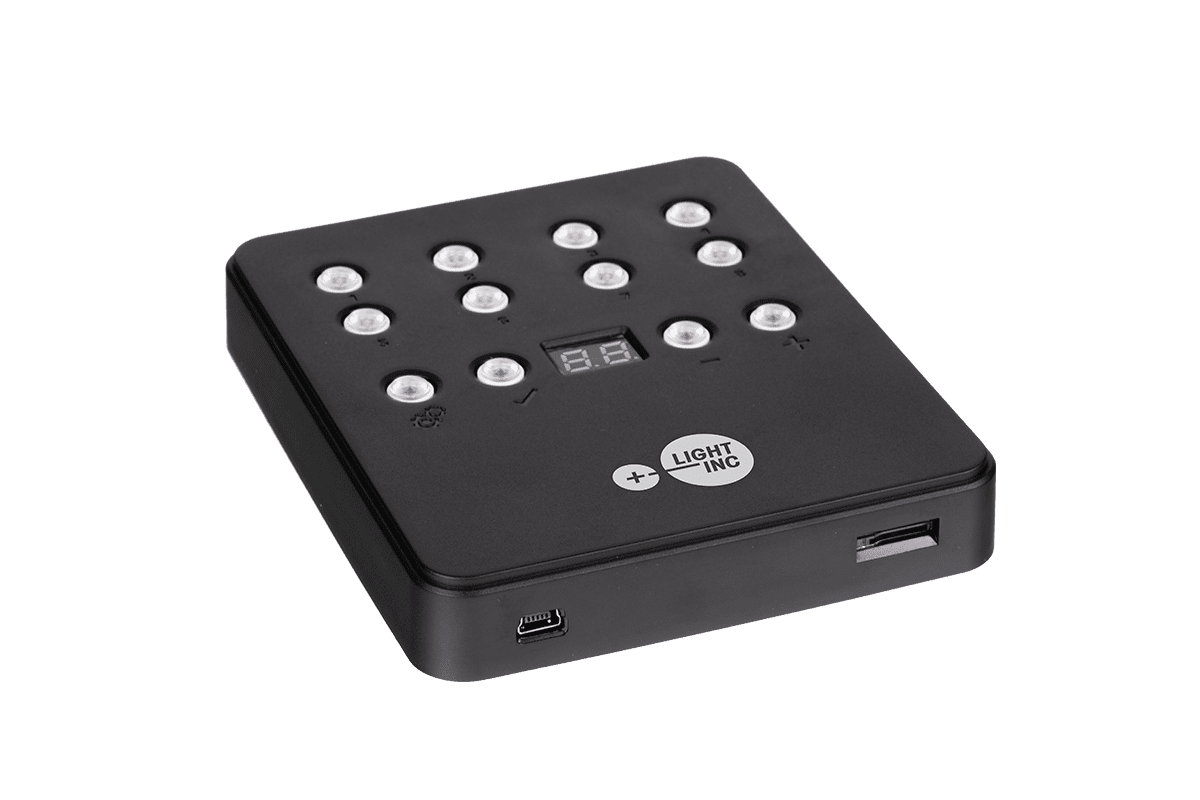

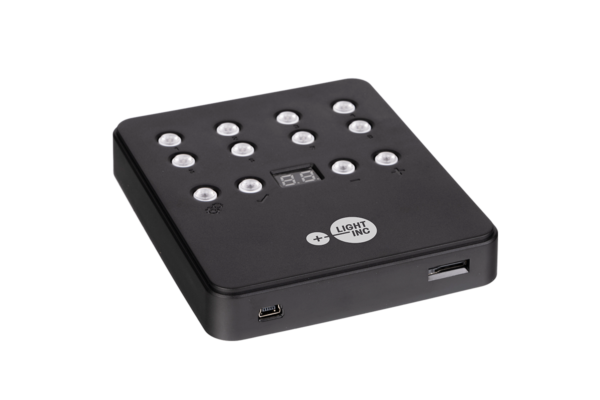

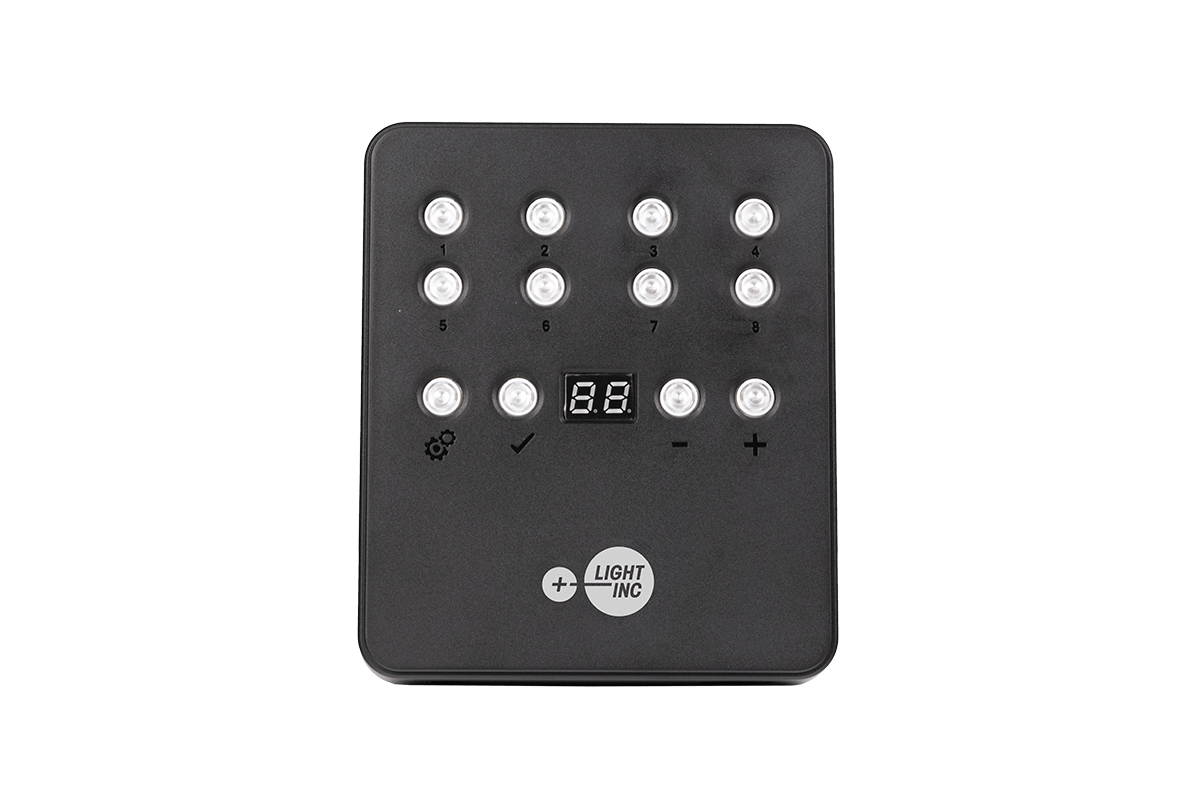

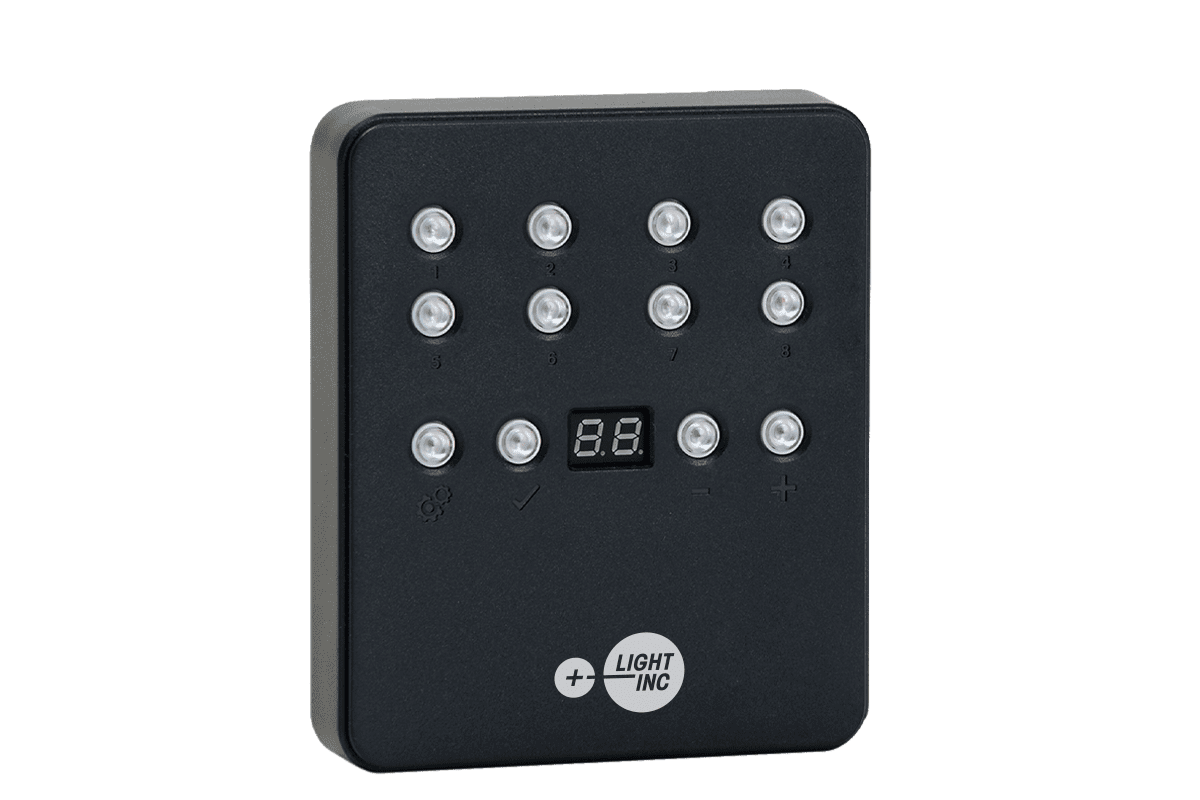

DMX Controller
LIGHT-UP STAND ALONE SLIM
1 Universe; 8 Buttons; Stand-Alone Network Control, Slim profile
SKU 8718868788634
1 / 7
Product details
Learn about the LIGHT-UP Standalone Slim, the pinnacle of sophistication and effectiveness for controlling interior lighting. This stylish wall-mounted interface offers an accessible option for beautiful lighting installations and blends perfectly with any environment.
Enjoy the flexibility of Stand Alone mode, controlling scenes without a computer, using 512 or 1024 Stand Alone DMX channels. Your lighting automatically comes on with planned scene triggers based on time or a calendar. This interface, which is CE certified and compatible with both Windows and Mac OS X platforms, ensures a smooth and dependable lighting experience.
Accept the power of LIGHT-UP Standalone Slim, where design and functionality come together to give flawless interior lighting management for an atmosphere that is genuinely engaging.
Specifications
Power
- Power consumption
- 0.3 ~ 0.5 W
- Power supply
- 5 V to 24 V DC, 0.5A max on DC connectors, 5 V, 0.5A via USB
Physical
- Dimensions
- H: 20 mm(0.79in) / W : 128 mm(5.04in) / D : 109 mm (4.29in)
- Weight (net)
- 0.2 kg (0.44 lbs.)
- Weight (gross)
- 0.41 kg (0.9 lbs.)
- Housing
- Black or White with 4 mounting slots, ABS Plastic
Protection
- Protection rating
- IP40
- Operating temperature
- – 30 à +85 C°
- Environment
- Indoor
- Storage
- Keep dry
- High-voltage protection
- Yes
- Certifications
- CE, RoHS

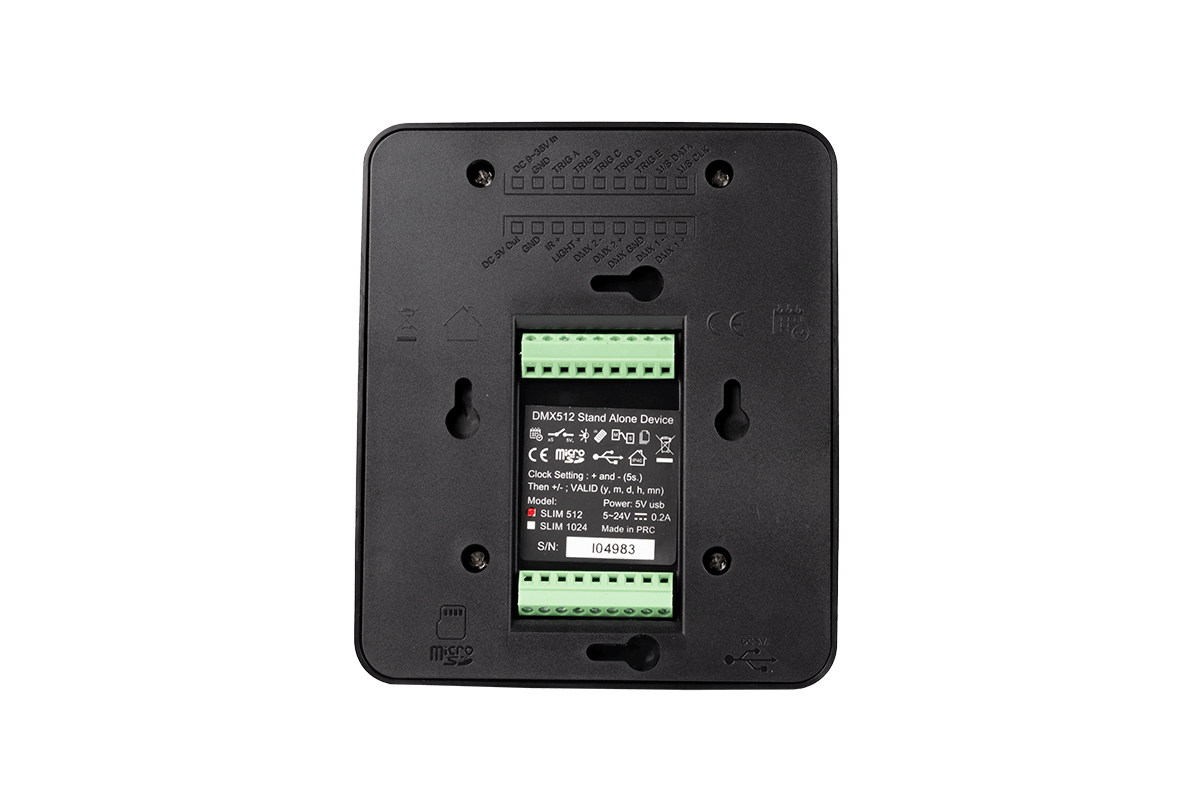

Inputs and outputs
- Inputs
- USB 2.0 via Mini USB
- DMX outputs
- Up to 512/1024 on 5 pins terminal screws
- DMX modes (512)
- 2×512 (Splitter, PC, Stand Alone) or 512 in/out (PC)
- DMX modes (1024)
- 2×512 ,1024 or 512 in/out (PC + Stand Alone)
Processing
- Internal memory
- Yes, 4Mb (no SD card required)
- Memory capacity
- 20000 steps with 16 ch., 6000 steps with 512 ch., 3000 steps with1024 ch.
- External memory
- SD card slot (accepts FAT format, Class 6, 8 and 10, up to 256 GB)
- Compatibility
- Windows (7 and +), MAC OS X (10.6 and higher) and Linux (64 Bits, Debian,Redhat, Archlinux, Raspberry Pi)
Documentation
Contact support for the current manual, DMX chart or fixture profile.
