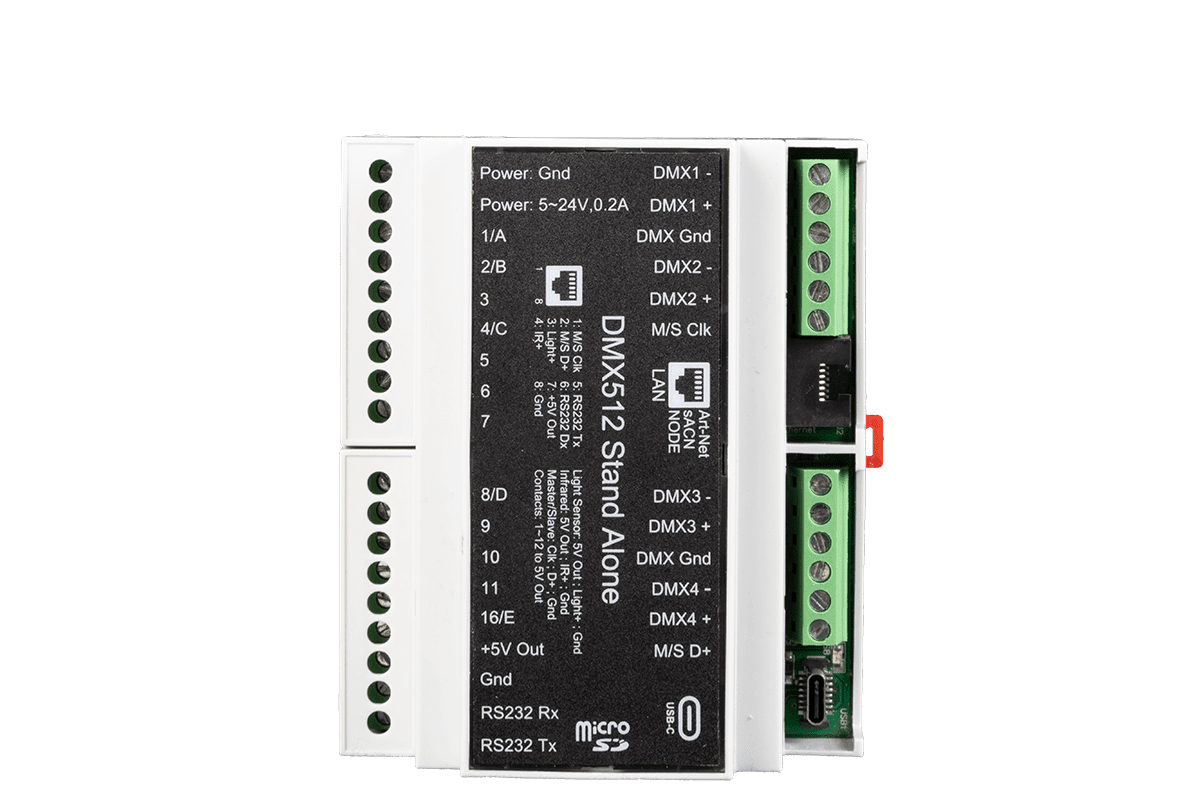

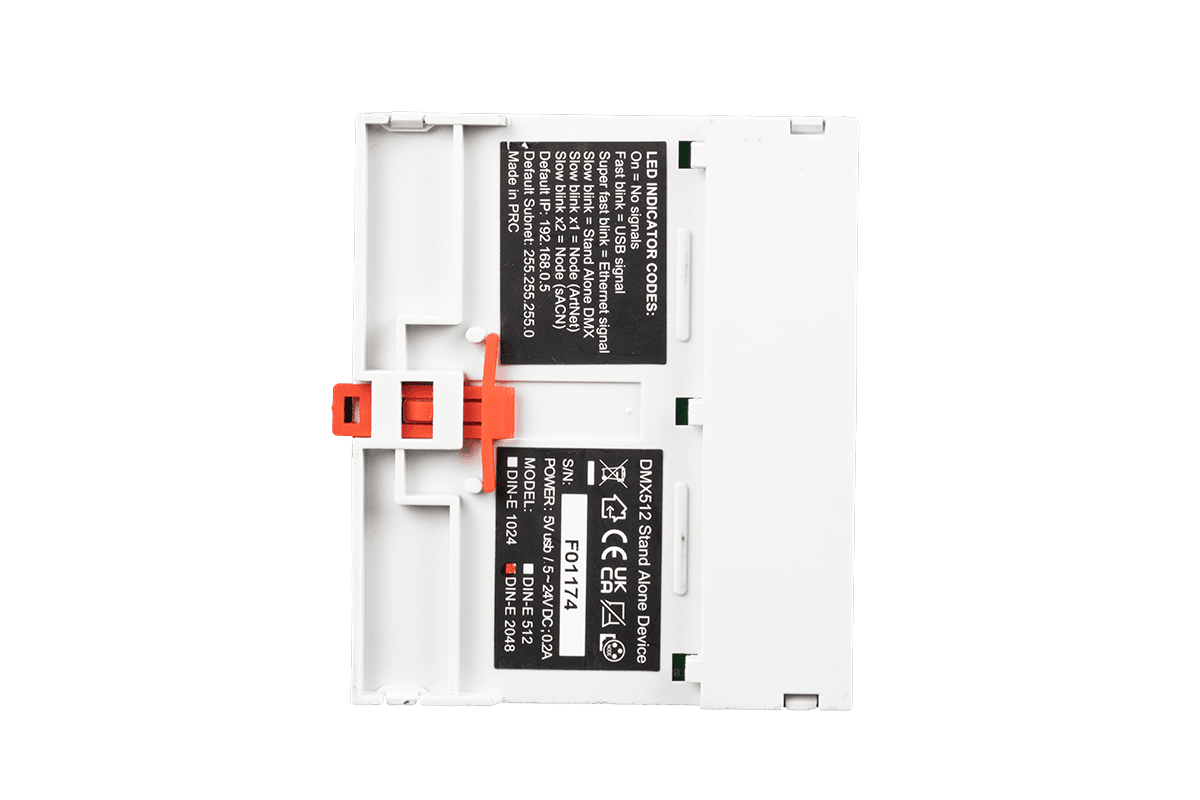

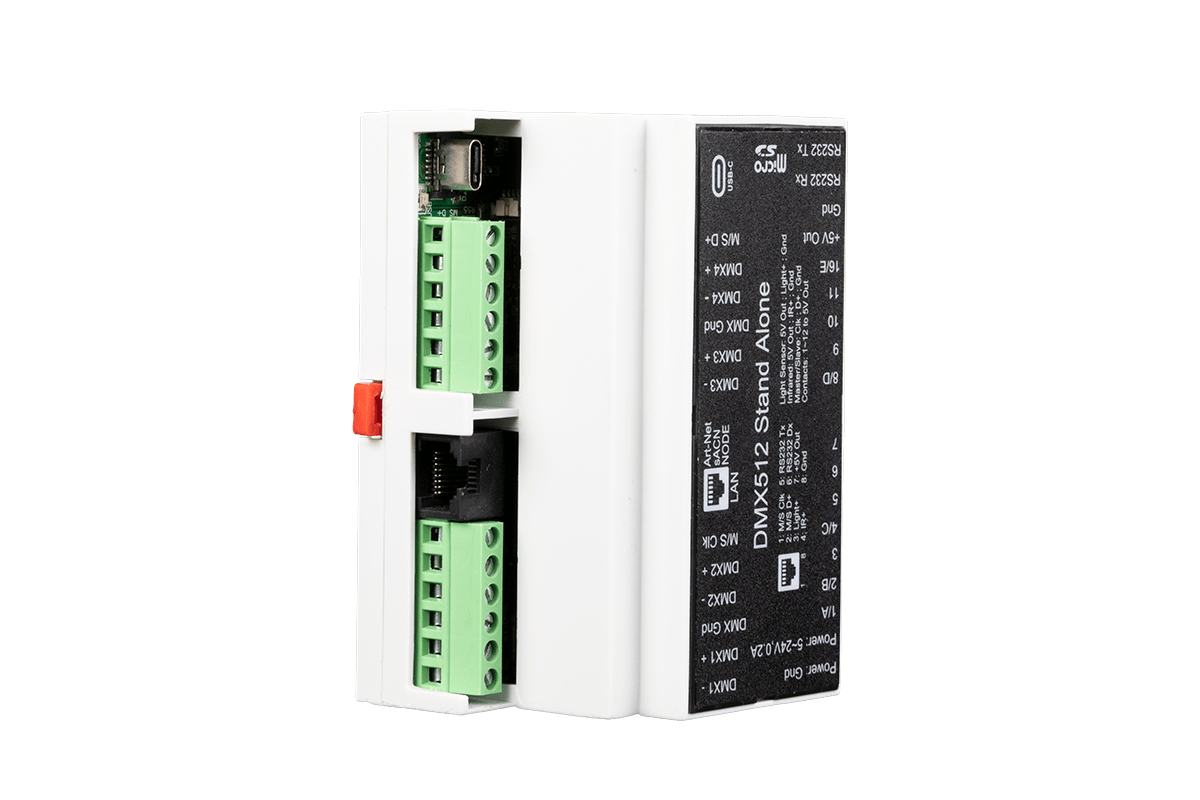

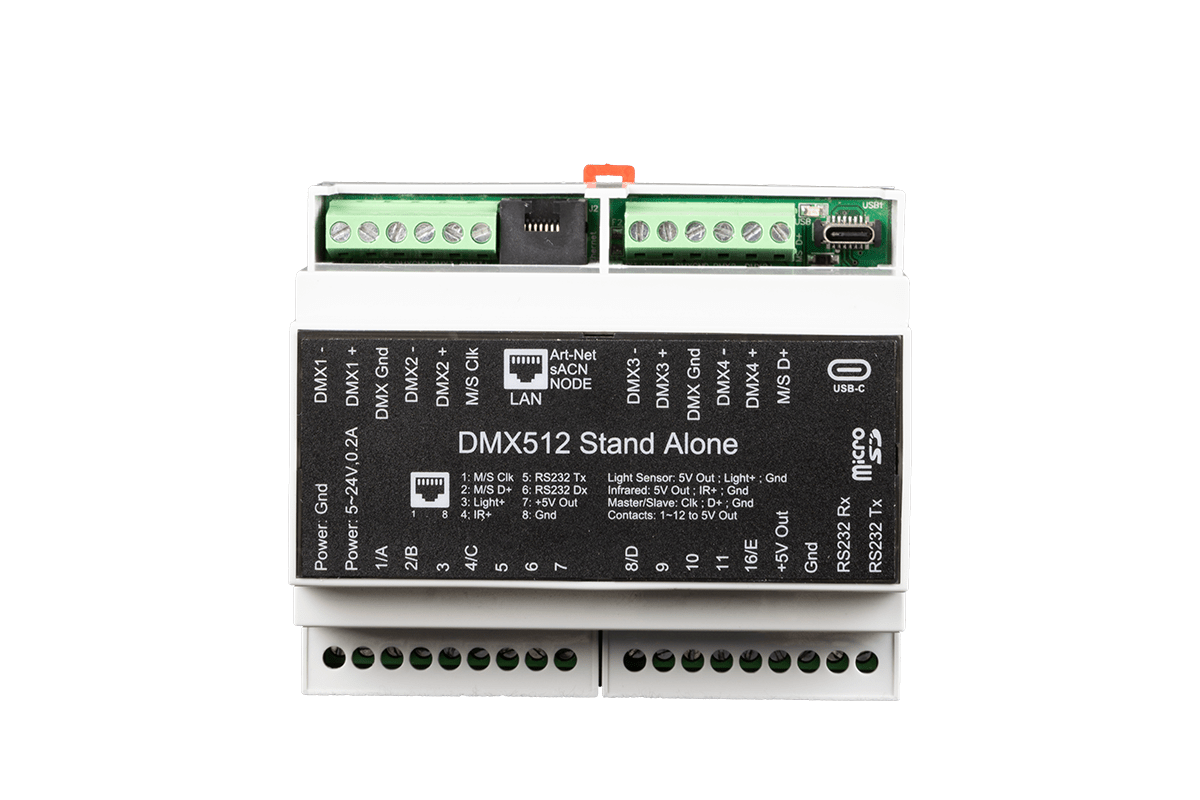

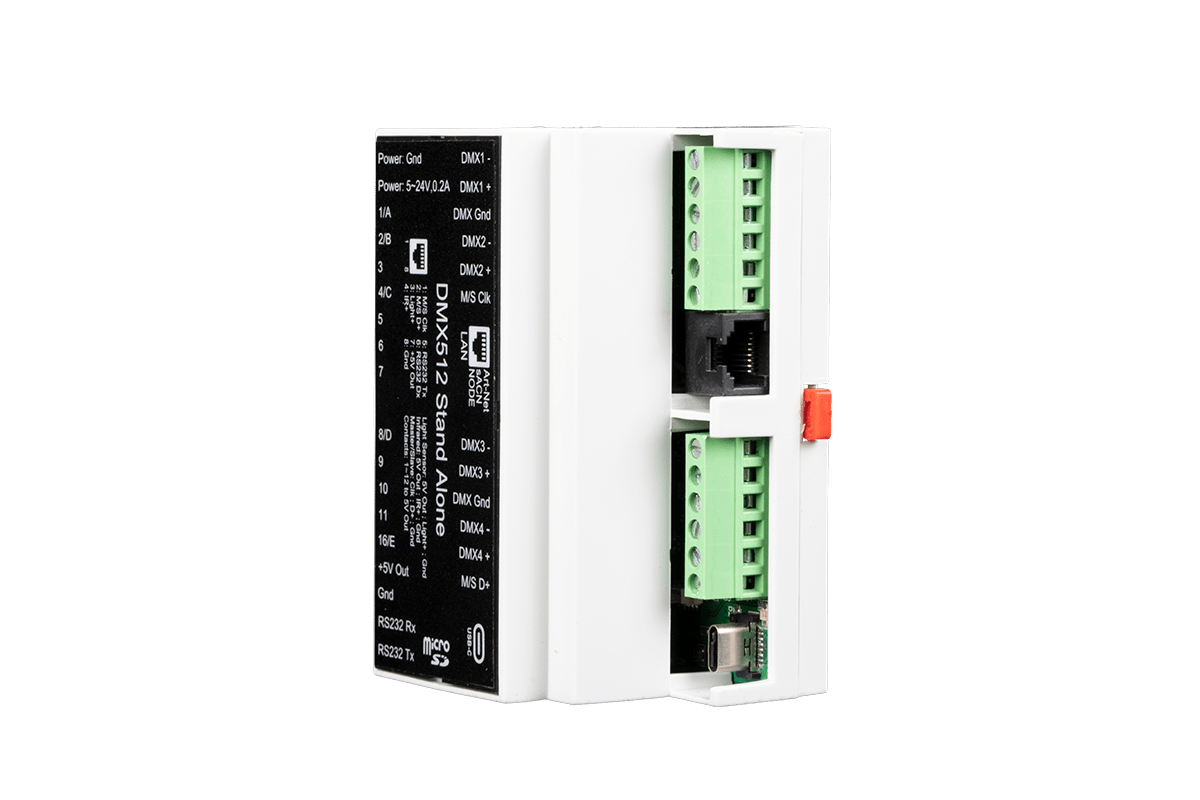

DMX Controller
LIGHT-UP DIN PRO
4 Universe; Stand-Alone Netowrk Control; Screw Connnectors
SKU 8718868788641
1 / 9
Product details
The ultimate DIN-mounted DMX controller, LIGHT-UP DIN Pro, transforms lighting control. This powerful device, which offers a robust Stand Alone mode and a variety of trigger options including RS232, Contacts, Clock, NODE x4 ports, and Master/Slave on LAN, is ideal for architectural installations and major integration projects.
LIGHT-UP DIN Pro enables smooth integration and accurate management of your lighting setup with i/O triggers, WAN/LAN ports, and 4 outputs to control distinct worlds. Discover the ease of Stand Alone mode, controlling 4 universes via 4 ports NODE. LIGHT-UP DIN Pro is the clever and adaptable solution for all your lighting control needs because to its sleek and compact structure, which is simple to operate and integrate.
Specifications
Connections
- Connectors
- USB-C, Screw terminal (2×9+2×6 pins) Ethernet and RJ45 (External contact x12, Master/Slave, Infrared, Light Sensor, 5S232 in/out)
Power
- Power consumption
- 0.3 ~ 0.5 W
- Power supply
- 5 V to 24 V DC, 0.2A/5 V via USB-C
Physical
- Dimensions
- H: 106 mm, W: 90 mm, D: 59 mm (pcb: 103/87/19)
- Weight (net)
- 170 Gr. (0.37 lbs)
- Weight (gross)
- 0.3 kg (0.66 lbs)
- Color
- Beige
Protection
- Protection rating
- IP20
- Operating temperature
- – 25 to +70 C°
- Environment
- Interior
- Storage
- Store dry
- High-voltage protection
- Yes, fuses and diodes
- Certifications
- CE, RoHS
Inputs and outputs
- DMX outputs
- Up to 4 x 512 channels 8 and 16-bit DMX channels
Processing
- Processor
- 32-bit processor
- Internal memory
- yes, 4MB (no SD card required)
- Memory capacity
- 20000 steps with 16 hp., 6000 steps with 512 hp., 3000 steps with 1024 hp.
- External memory
- Micro SD card (accepts FAT, FAT 32, Class 10 SD card up to 256 GB)
- Compatibility
- Windows (7 and higher), MAC OS X (10.13 and higher) and Linux (64 Bits, Debian, Redhat, Archlinux, Raspberry Pi)
Documentation
Contact support for the current manual, DMX chart or fixture profile.
Request documentation
