Moving Light

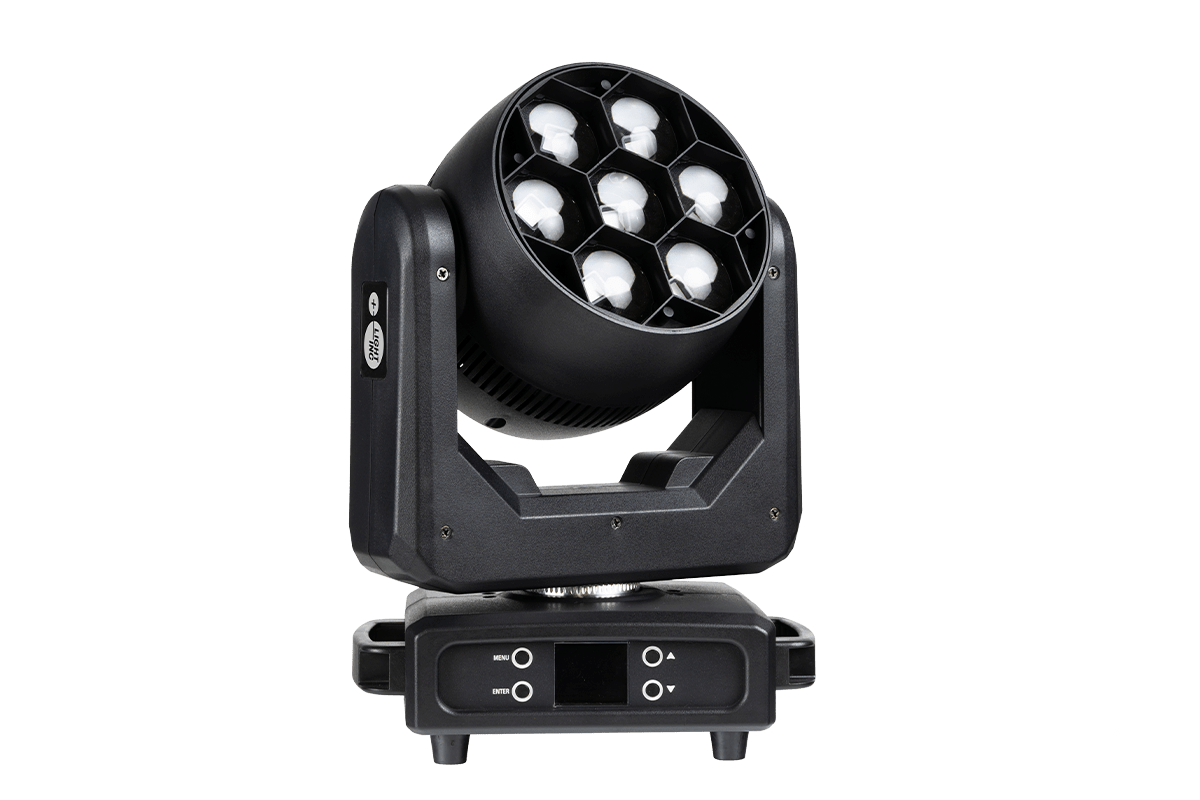

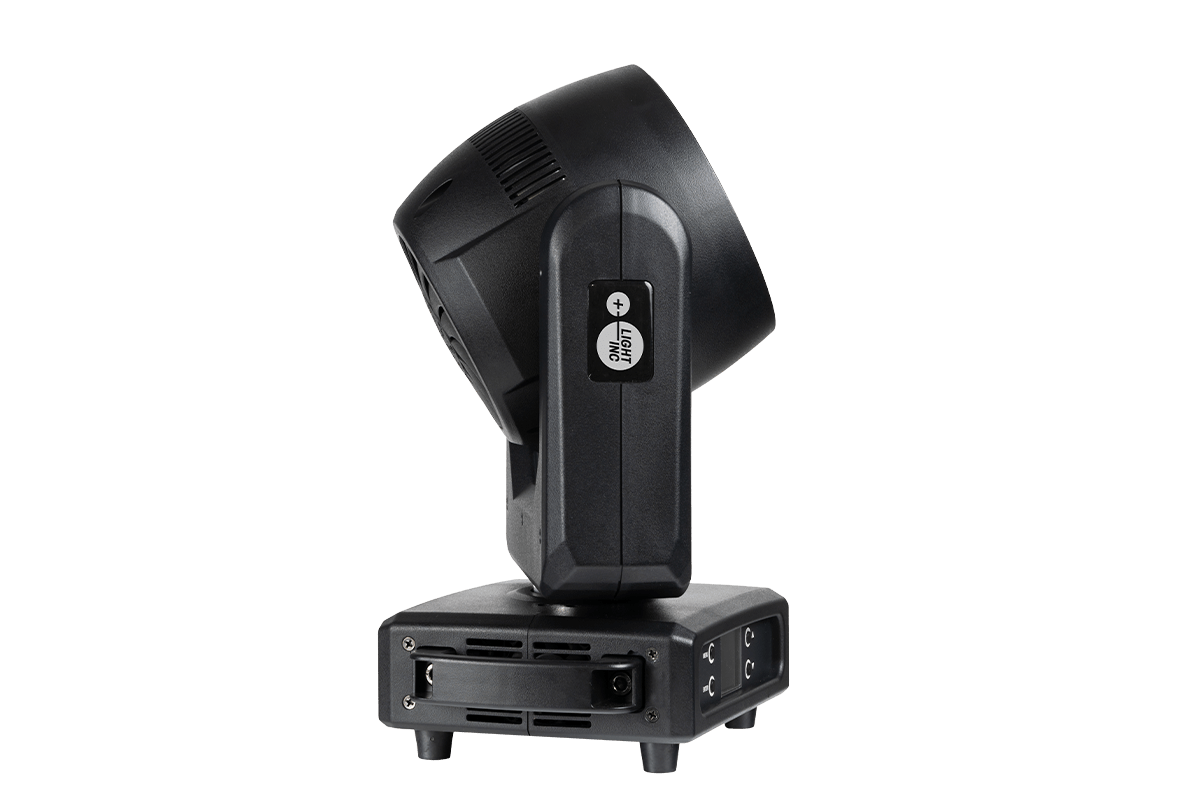

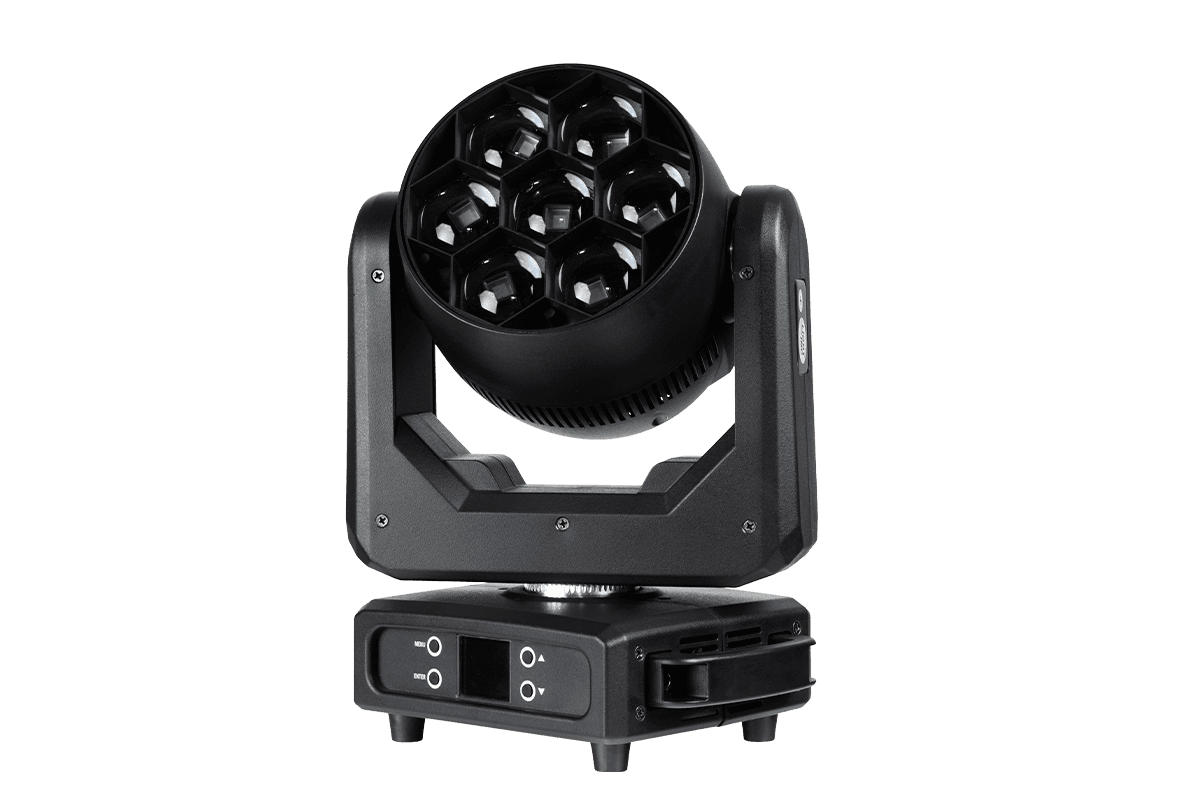

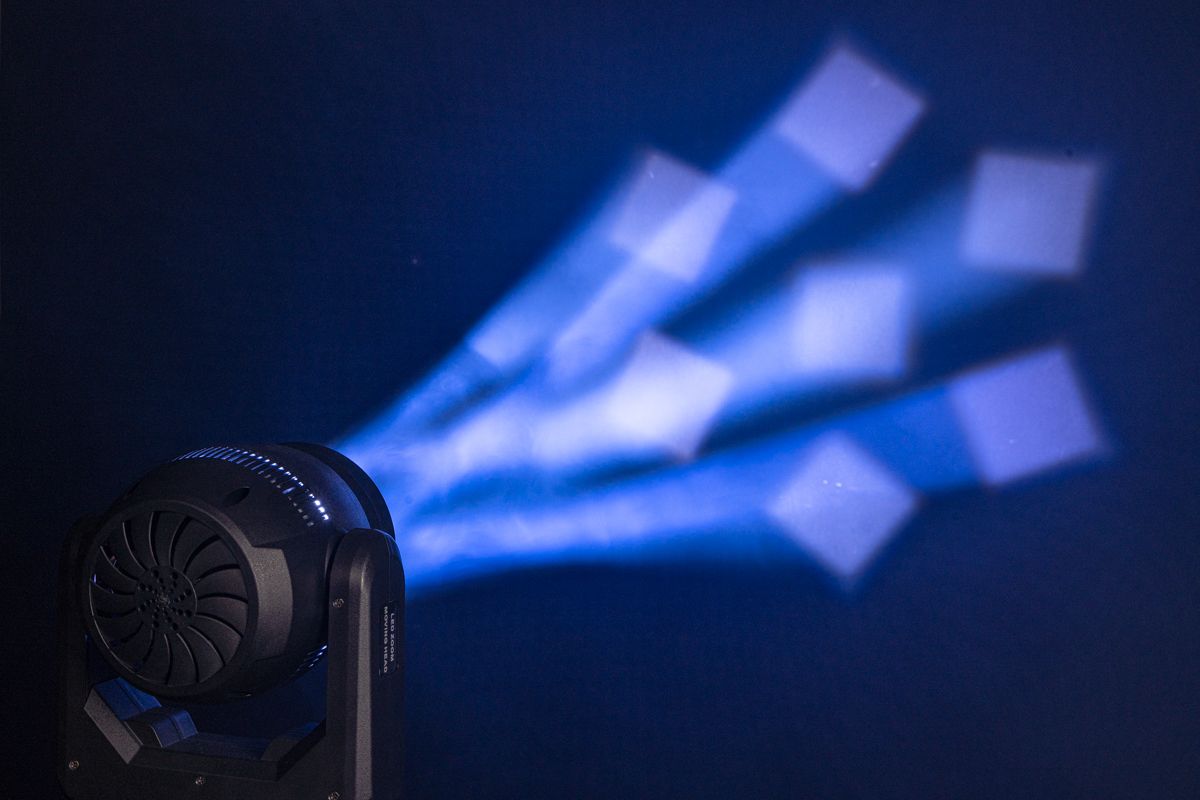

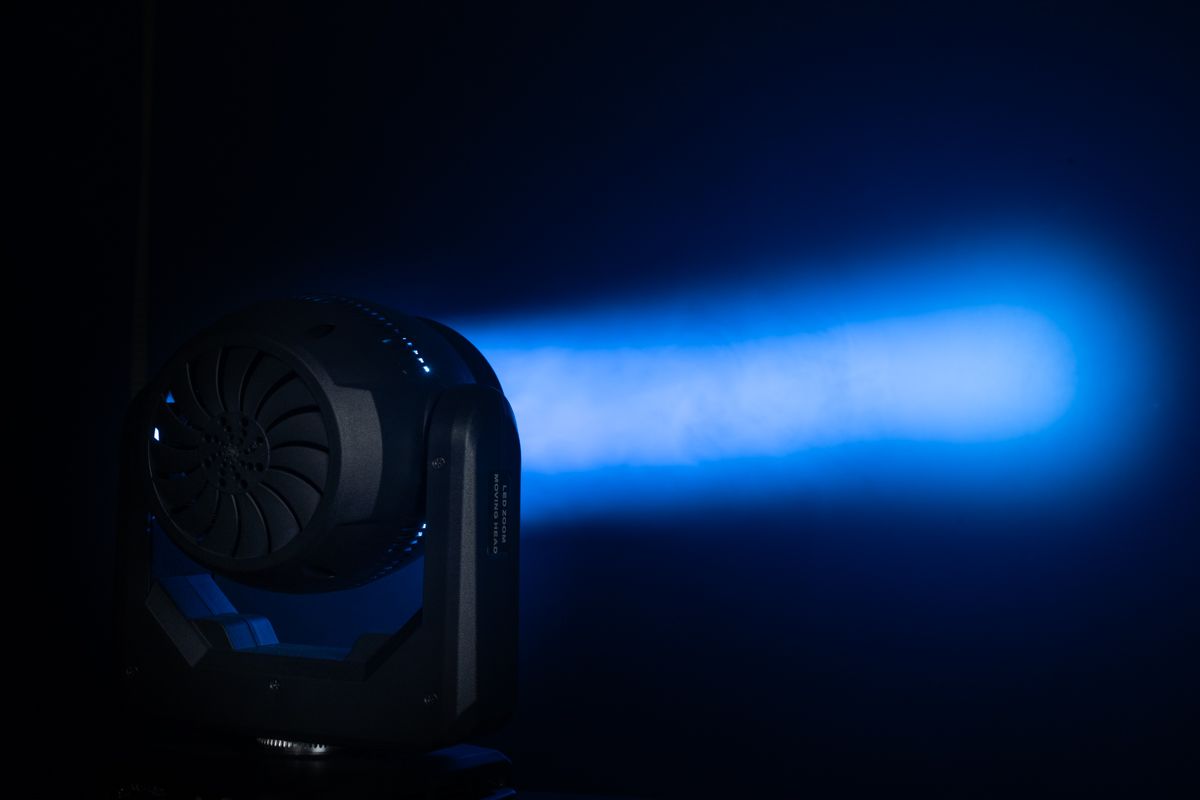

MH-740X LED WASH
7 x 40 Watt RGBW LED Wash Moving Head
SKU 8718868788825
1 / 12
Product details
Unleash vibrant lighting with the MH-740 X LED Wash. Boasting seven powerful 40W RGBW LEDs, it delivers a stunning spectrum of colors, from subtle shades to bold brilliance. The electronic zoom system allows you to customize your beam from 4° to 55°, adapting to any setting with precision. Effortlessly control your lighting masterpiece with DMX, RDM, and Master/Slave modes, offering seamless integration. Its 0~100% smooth dimming and variable strobe speeds provide versatility for dynamic shows. Designed for durability, the MH-740 features a 16-bit pan/tilt resolution and an IP20 protection rating. Compact and lightweight, this fixture is a versatile and reliable lighting companion. Elevate your lighting experience with the MH-740 X LED Wash.
Specifications
Light source and output
- Light source
- 7PCSX40 W RGBW LED
Optics
- Zoom
- 4°~55°
Movement
- Pan
- 540°
- Tilt
- 270°
- Pan / Tilt resolution
- 16BIT
Control
- Control
- DMX, RDM, MASTER/SLAVE
- DMX channels
- 16/44 CHANNELS
- Display
- OLED DISPLAY
- Dimming / Strobe
- 0~100% SMOOTH DIMMING, VARIABLE STROBE SPEEDS
- Firmware upgrade
- UPDATE VIA DMX LINK
Connections
- Data connection
- 3-PIN XLR
- Power connection
- POWER CONNECTOR IN/OUT PROTECTION RATING: IP20
Power
- Input voltage
- AC 100~240 V, 50/60HZ
- Power consumption
- 320 W
Physical
- Dimensions
- 33 × 16 × 17 cm, WEIGHT:5,1 kg
Features
- ELECTRONIC LINEAR ZOOM SYSTEM RING CONTROL, OUTSTANDING COLOR MACRO EFFECT
Wheel tables and DMX values
DMX ranges and labels from the linked product manual.
Colour macro
Manual ↓- DMX 000-009
- No macro colour
- DMX 010-014
- White 1
- DMX 015-019
- Light pink
- DMX 020-024
- Deep pink
- DMX 025-029
- Pink
- DMX 030-034
- Lavender
- DMX 035-039
- Light cyan 1
- DMX 040-044
- Light sky blue
- DMX 045-049
- Deep sky blue
- DMX 050-054
- Cyan 1
- DMX 055-059
- Light blue
- DMX 060-064
- Powder blue
- DMX 065-074
- Light cyan 2
- DMX 075-079
- Light cyan 3
- DMX 080-084
- White 2
- DMX 085-089
- White 3
- DMX 090-094
- Light cyan 4
- DMX 095-099
- Cyan 2
- DMX 100-104
- Soft aquamarine
- DMX 105-109
- Green 1
- DMX 110-114
- Green 2
- DMX 115-119
- Green 3
- DMX 120-124
- Green 4
- DMX 125-129
- Green 5
- DMX 130-134
- Yellow 1
- DMX 135-139
- Yellow 2
- DMX 140-144
- Yellow 3
- DMX 145-149
- Green 6
- DMX 150-154
- Yellow 4
- DMX 155-159
- Dark yellow 1
- DMX 160-164
- Dark yellow 2
- DMX 165-169
- Yellow 5
- DMX 170-174
- Orange
- DMX 175-179
- No macro colour
- DMX 180-204
- Forward macro fade
- DMX 205-229
- Backward macro fade
- DMX 230-234
- No macro colour
- DMX 235-249
- Colour jump
- DMX 250-255
- No macro colour
Colour of macro program individually
Manual ↓- DMX 000-017
- White 1
- DMX 018-024
- Light pink
- DMX 025-032
- Deep pink
- DMX 033-039
- Pink
- DMX 040-047
- Lavender
- DMX 048-054
- Light cyan 1
- DMX 055-061
- Light sky blue
- DMX 062-069
- Deep sky blue
- DMX 070-076
- Cyan 1
- DMX 077-084
- Light blue
- DMX 085-091
- Powder blue
- DMX 092-106
- Light cyan 2
- DMX 107-113
- Light cyan 3
- DMX 114-121
- White 2
- DMX 122-128
- White 3
- DMX 129-136
- Light cyan 4
- DMX 137-143
- Cyan 2
- DMX 144-151
- Soft aquamarine
- DMX 152-158
- Green 1
- DMX 159-165
- Green 2
- DMX 166-173
- Green 3
- DMX 174-180
- Green 4
- DMX 181-188
- Green 5
- DMX 189-195
- Yellow 1
- DMX 196-203
- Yellow 2
- DMX 204-210
- Yellow 3
- DMX 211-217
- Green 6
- DMX 218-225
- Yellow 4
- DMX 226-232
- Dark yellow 1
- DMX 233-240
- Dark yellow 2
- DMX 241-247
- Yellow 5
- DMX 248-255
- Orange
Colour of macro program
Manual ↓- DMX 000-017
- White 1
- DMX 018-024
- Light pink
- DMX 025-032
- Deep pink
- DMX 033-039
- Pink
- DMX 040-047
- Lavender
- DMX 048-054
- Light cyan 1
- DMX 055-061
- Light sky blue
- DMX 062-069
- Deep sky blue
- DMX 070-076
- Cyan 1
- DMX 077-084
- Light blue
- DMX 085-091
- Powder blue
- DMX 092-106
- Light cyan 2
- DMX 107-113
- Light cyan 3
- DMX 114-121
- White 2
- DMX 122-128
- White 3
- DMX 129-136
- Light cyan 4
- DMX 137-143
- Cyan 2
- DMX 144-151
- Soft aquamarine
- DMX 152-158
- Green 1
- DMX 159-165
- Green 2
- DMX 166-173
- Green 3
- DMX 174-180
- Green 4
- DMX 181-188
- Green 5
- DMX 189-195
- Yellow 1
- DMX 196-203
- Yellow 2
- DMX 204-210
- Yellow 3
- DMX 211-217
- Green 6
- DMX 218-225
- Yellow 4
- DMX 226-232
- Dark yellow 1
- DMX 233-240
- Dark yellow 2
- DMX 241-247
- Yellow 5
- DMX 248-255
- Orange
