Moving Light

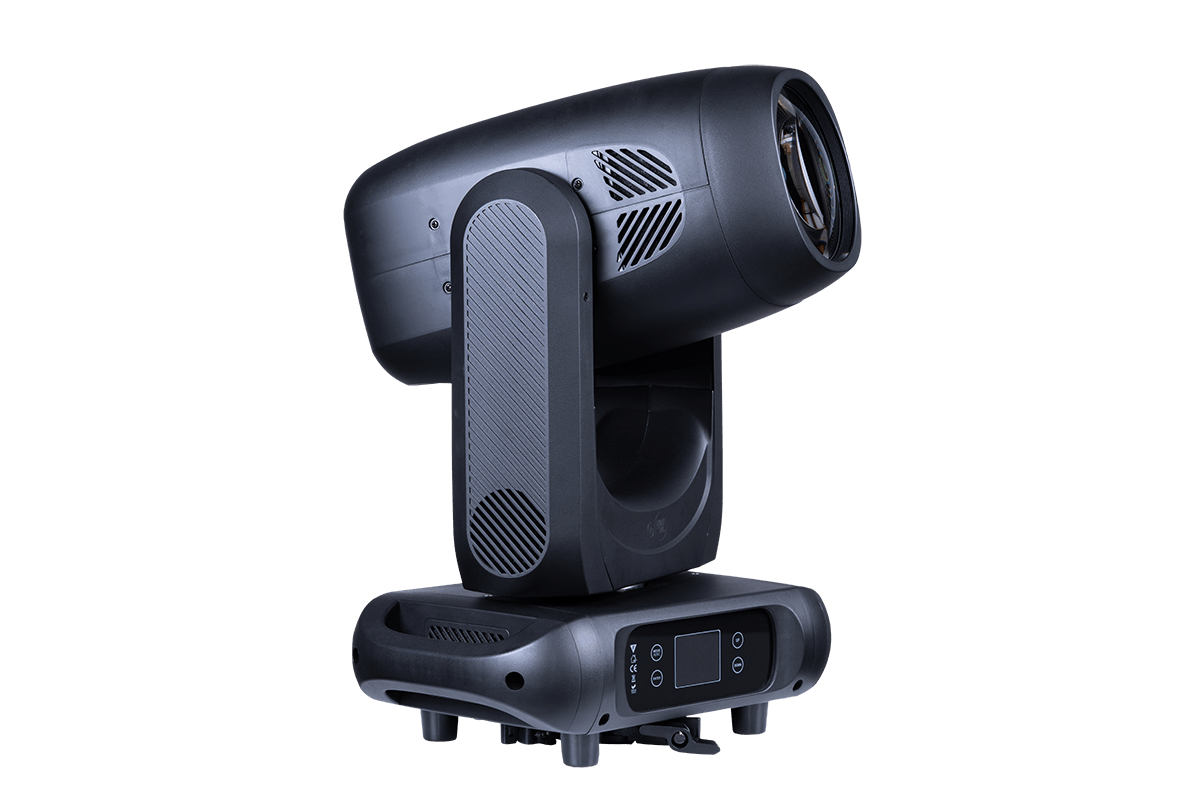

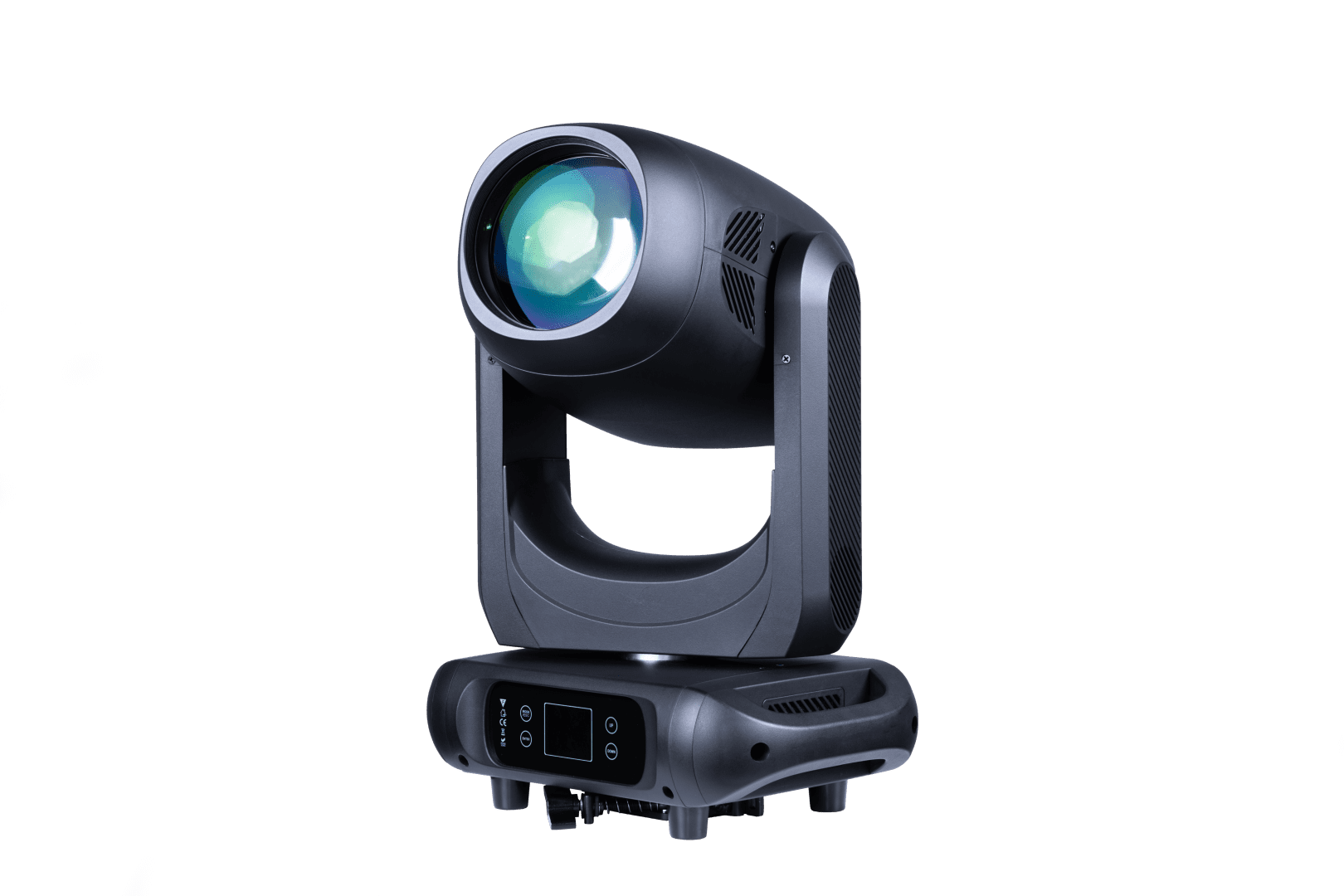

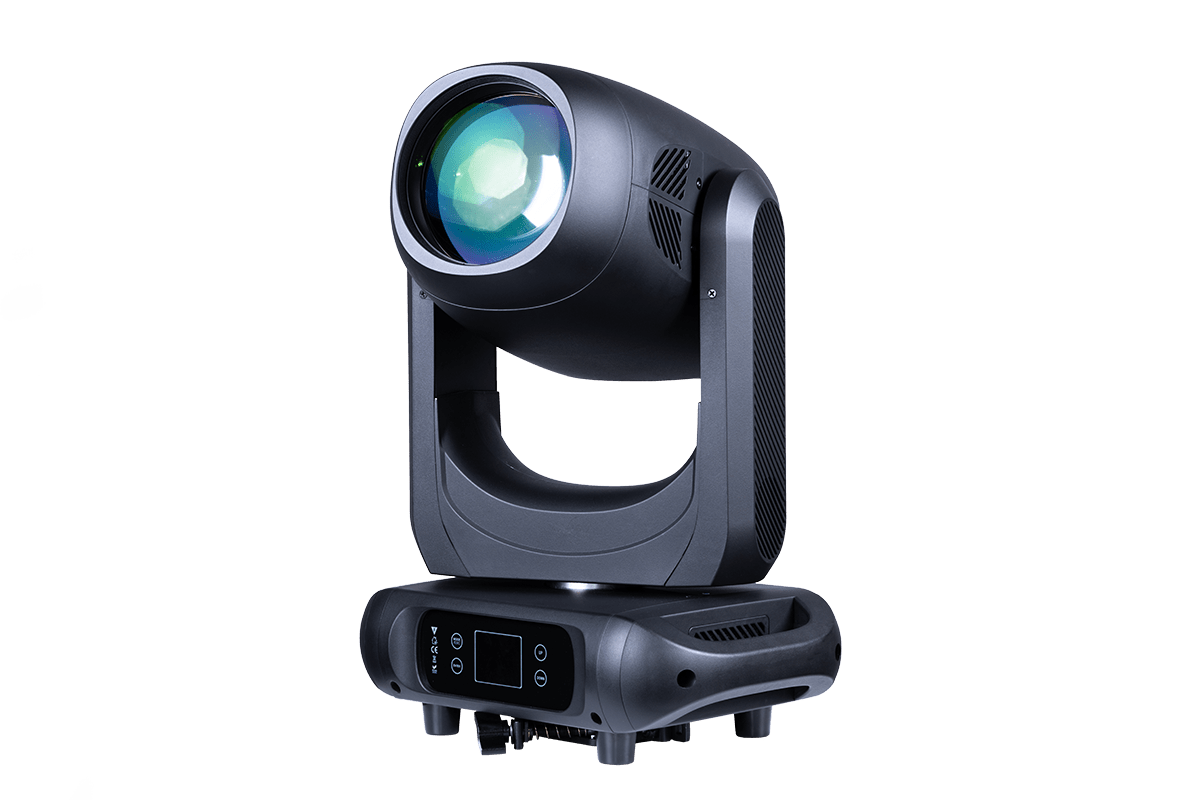

OMNIA HYBRID-350 CMY
350 Watt LED - Fast Zoom Range 3 to 48 Degrees - CMY - Dual Prism
SKU 8718868788979
1 / 10
Product details
Elevate your productions with the Omnia Hybrid-350 CMY, a versatile moving head that combines power and precision. Featuring a robust 350W white LED source with a color temperature of 7200K, it delivers brilliant illumination for any performance. With a lifespan exceeding 20,000 hours and smooth 540° pan and 270° tilt movements, it ensures reliable operation.
The CMY color mixing system, paired with a linear CTO range from 2700K to 7200K, allows for stunning ambiance creation. Enhance your visuals with 7 interchangeable gobos, 10 fixed designs, and dynamic gobo shaking effects. The 5-facet prisms and a zoom range of 3° to 48° offer endless creative possibilities. Compact yet powerful, the Omnia Hybrid-350 CMY is your ultimate lighting solution for concerts, theaters, and performances.
Specifications
Light source and output
- Light source
- 350 W white LED
- Color temperature
- 7200 K
- Lifetime
- >20,000H
Optics

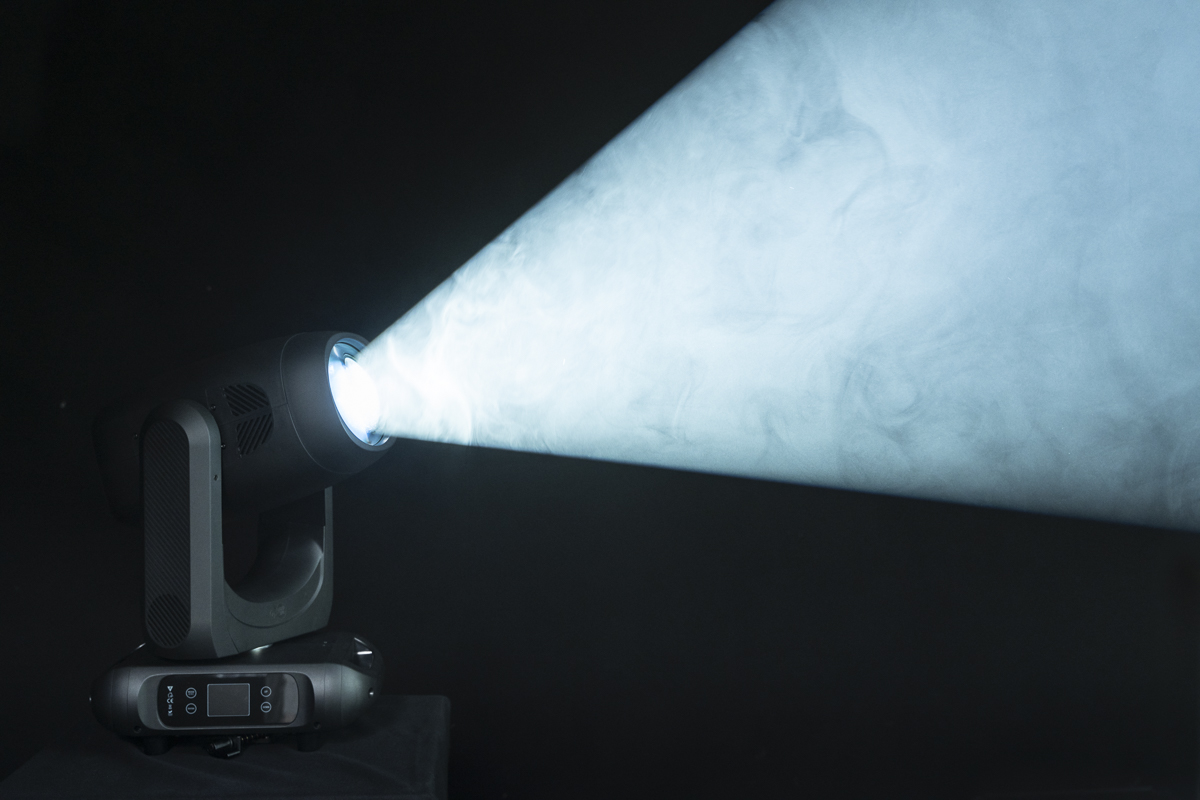

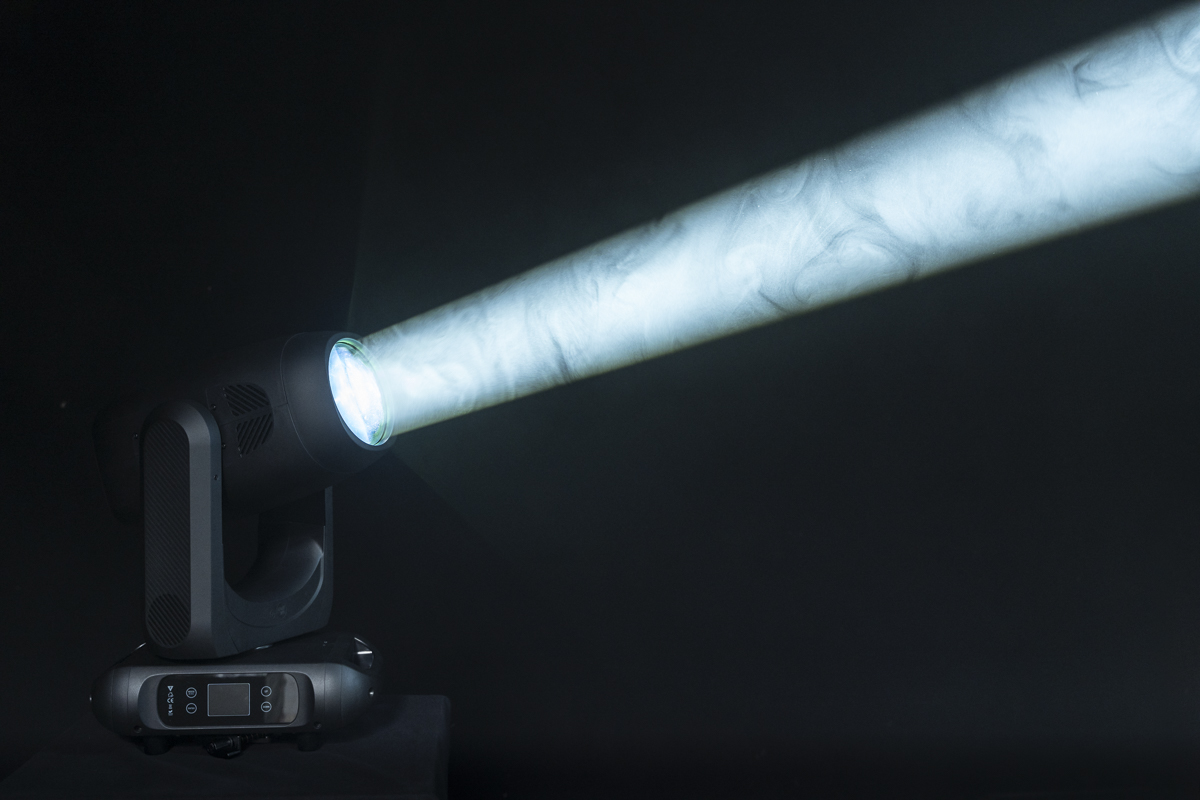

- Zoom
- 3°- 48° linear zoom
Color
- 1 color wheel with 8 colors + white
- Interchangeable, indexable, bidirectional infinite color rotation effect
- CMY color mixing
- Linear CTO (3200K-7200K)
Effects
- Rotating gobo wheel
- 7 interchangeable gobo + open, indexable and gobo shaking effect Inside diameter: 13 mm. Outside diameter: 22.8 mm
- Static gobo wheel
- 10 fixed gobo + open, with gobo shaking effect

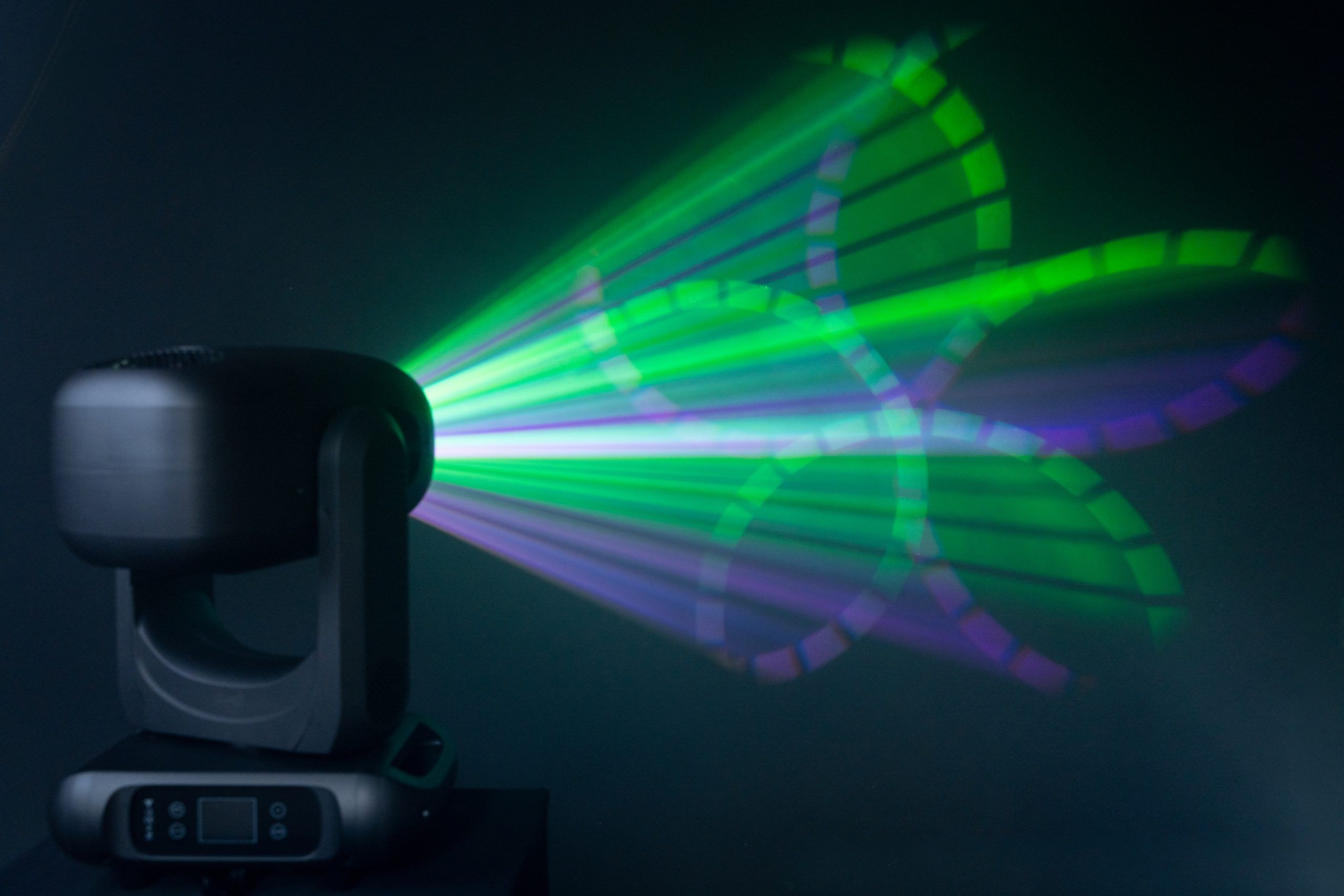

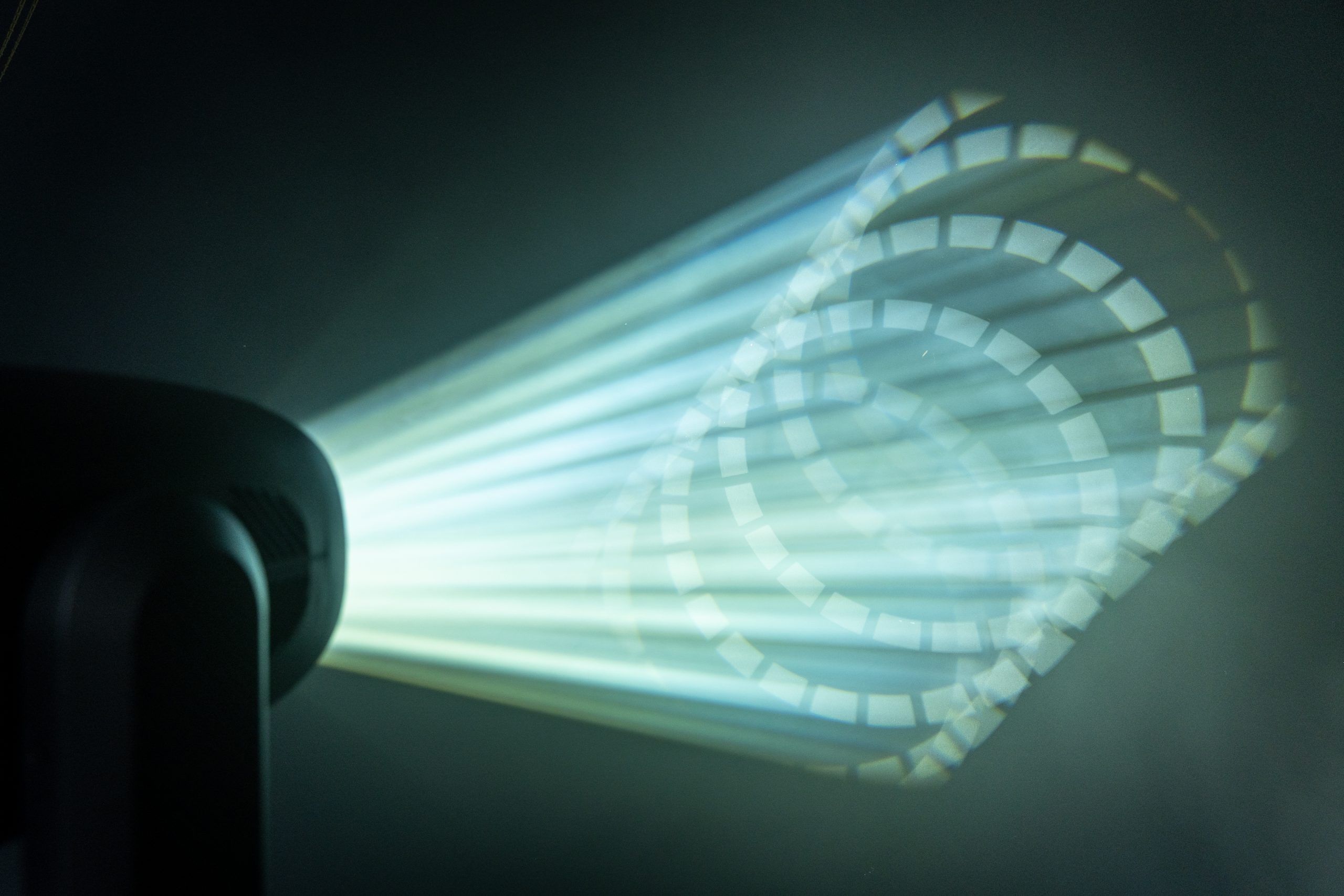

- Prism
- 5 facet circular prism + 6 facet linear prism
Movement
- Pan
- 540° (16 bit)
- Tilt
- 270° (16 bit)
- Motion system
- auto repositioning
Control
- DMX channels
- 25/36CH
- Dimming
- 0-100% linear dimming
- DMX, Auto, Manual
- 2.8 inch LCD display with English/Chinese menu
- Auto lock and display flip
Power
- Input voltage
- AC100~240v,50/60 Hz
- Power consumption
- 420 W
Physical
- Dimensions
- 368 × 210 × 597 mm
- Packing dimensions
- 505 × 415 × 620 mm
- Weight (net)
- 21 kg
- Weight (gross)
- 24 kg
Features
- Rotates in both directions at variable speed
- Motorized Focus
- Various strobe
- 0-100% linear heavy frost
- Input signal isolation
- Optional ArtNET control
- RDM compatible
- Self-adjusting variable speed fans
- Overheating protection
Wheel tables and DMX values
DMX ranges and labels from the linked product manual.
Color Wheel
Manual ↓- DMX 0-19
- Open
- DMX 20-25
- Open/Red
- DMX 26-31
- Red
- DMX 32-37
- Red/CTO 3200K
- DMX 38-43
- CTO 3000K
- DMX 44-49
- CTO 3000K /Yellow
- DMX 50-55
- Yellow
- DMX 56-61
- Yellow/Green
- DMX 62-67
- Green
- DMX 68-73
- Green/Orange
- DMX 74-79
- Orange
- DMX 80-85
- Orange/Light blue
- DMX 86-91
- Light blue
- DMX 92-97
- Light blue/Magenta
- DMX 98-103
- Magenta
- DMX 104-109
- Magenta/Blue
- DMX 110-115
- Blue
- DMX 116-121
- Blue/Open
- DMX 122-127
- Open
- DMX 128-189
- Forwards rainbow effect from fast to slow
- DMX 194-255
- Backwards rainbow effect from slow to fast
Rotating gobos, cont. rotation
Manual ↓- DMX 0-7
- Open
- DMX 8-20
- Rot. gobo 1
- DMX 21-33
- Rot. gobo 2
- DMX 34-46
- Rot. gobo 3
- DMX 47-59
- Rot. gobo 4
- DMX 60-72
- Rot. gobo 5
- DMX 73-85
- Rot. gobo 6
- DMX 86-98
- Rot. gobo 7
- DMX 99-111
- Gobo 1 shake slow to fast
- DMX 112-124
- Gobo 2 shake slow to fast
- DMX 125-137
- Gobo 3 shake slow to fast
- DMX 138-150
- Gobo 4 shake slow to fast
- DMX 151-163
- Gobo 5 shake slow to fast
- DMX 164-176
- Gobo 6 shake slow to fast
- DMX 177-189
- Gobo 7 shake slow to fast
- DMX 190-221
- Gobo wheel rotation forwards from fast to slow
- DMX 224-255
- Gobo wheel rotation backwards from slow to fast
Fixed Gobo
Manual ↓- DMX 0-9
- Open
- DMX 10-17
- Beam reducer 1
- DMX 18-25
- Beam reducer 2
- DMX 26-33
- Gobo 1
- DMX 34-41
- Gobo 2
- DMX 42-49
- Gobo 3
- DMX 50-57
- Gobo 4
- DMX 58-65
- Gobo 5
- DMX 66-73
- Gobo 6
- DMX 74-81
- Gobo 7
- DMX 82-89
- Gobo 8
- DMX 90-99
- Beam reducer 1 shake slow to fast
- DMX 100-109
- Beam reducer 2 shake slow to fast
- DMX 110-119
- Gobo 1 shake slow to fast
- DMX 120-129
- Gobo 2 shake slow to fast
- DMX 130-139
- Gobo 3 shake slow to fast
- DMX 140-149
- Gobo 4 shake slow to fast
- DMX 150-159
- Gobo 5 shake slow to fast
- DMX 160-169
- Gobo 6 shake slow to fast
- DMX 170-179
- Gobo 7 shake slow to fast
- DMX 180-189
- Gobo 8 shake slow to fast
- DMX 190-221
- Gobo wheel rotation forwards from fast to slow
- DMX 224-255
- Gobo wheel rotation backwards from slow to fast
