Epikon Buddy
Audio

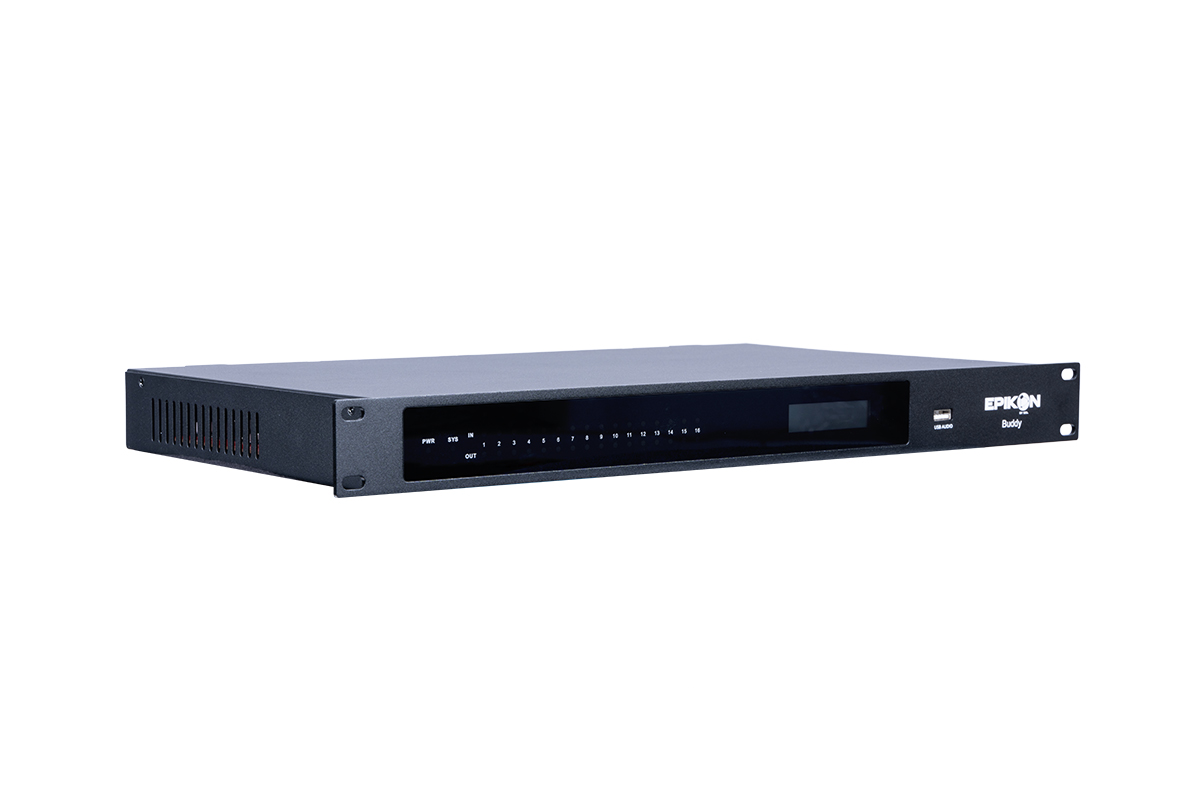

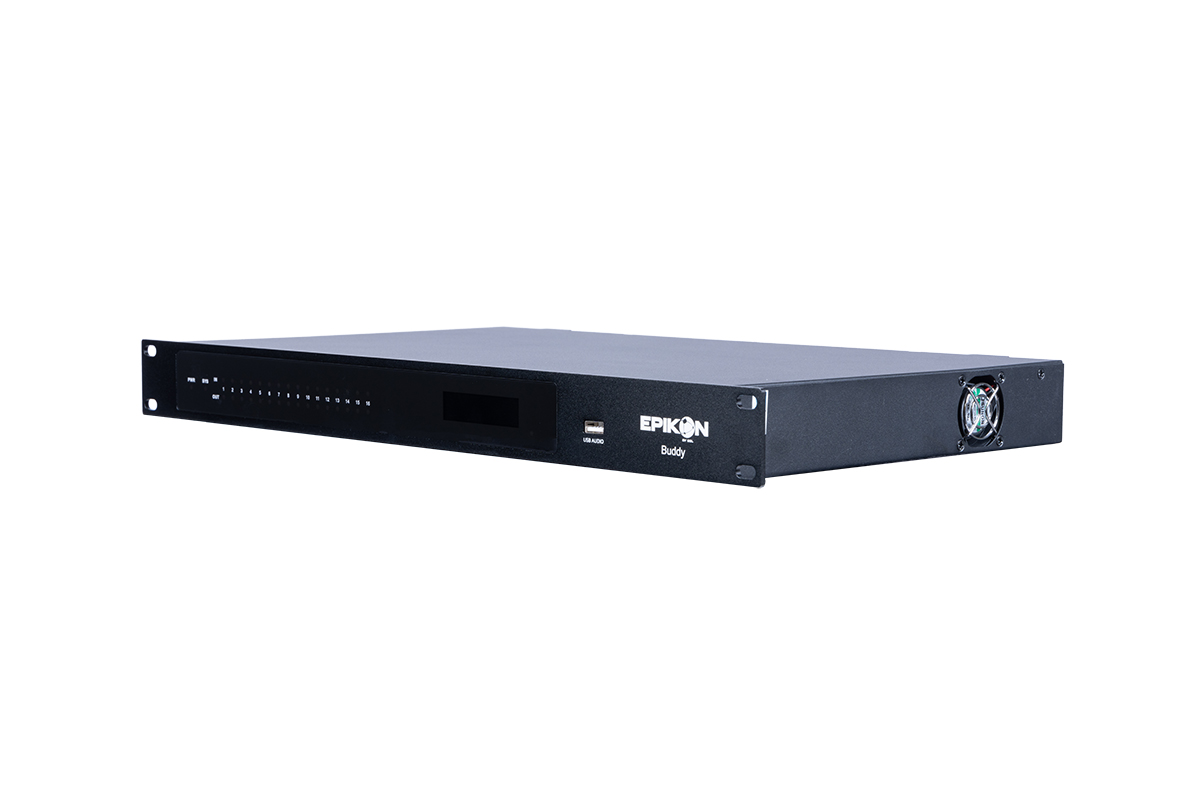

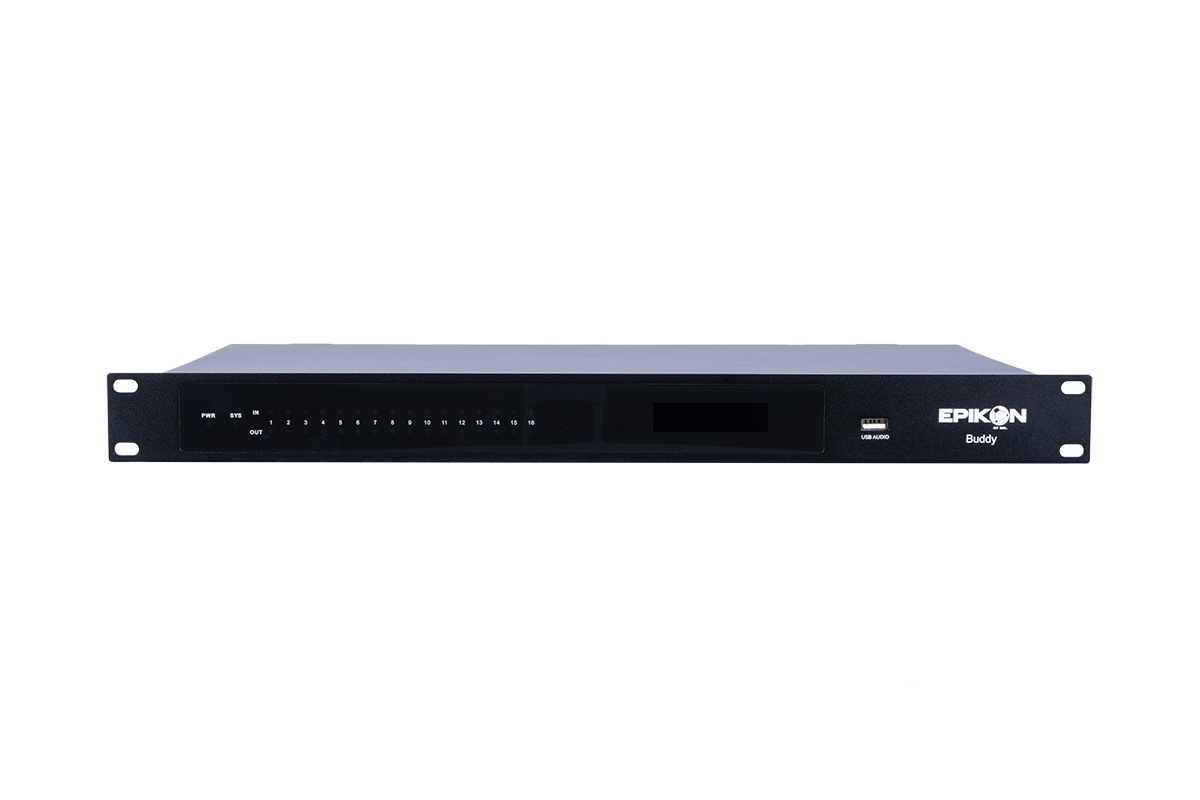

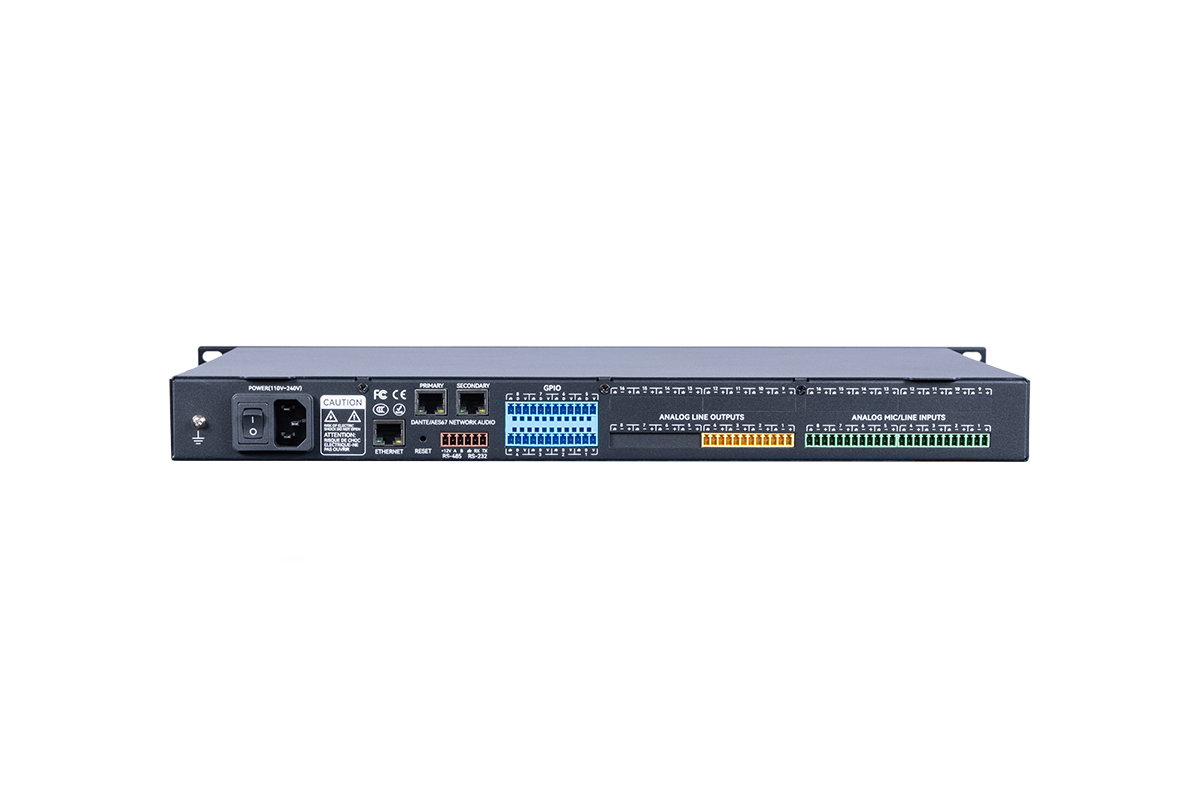

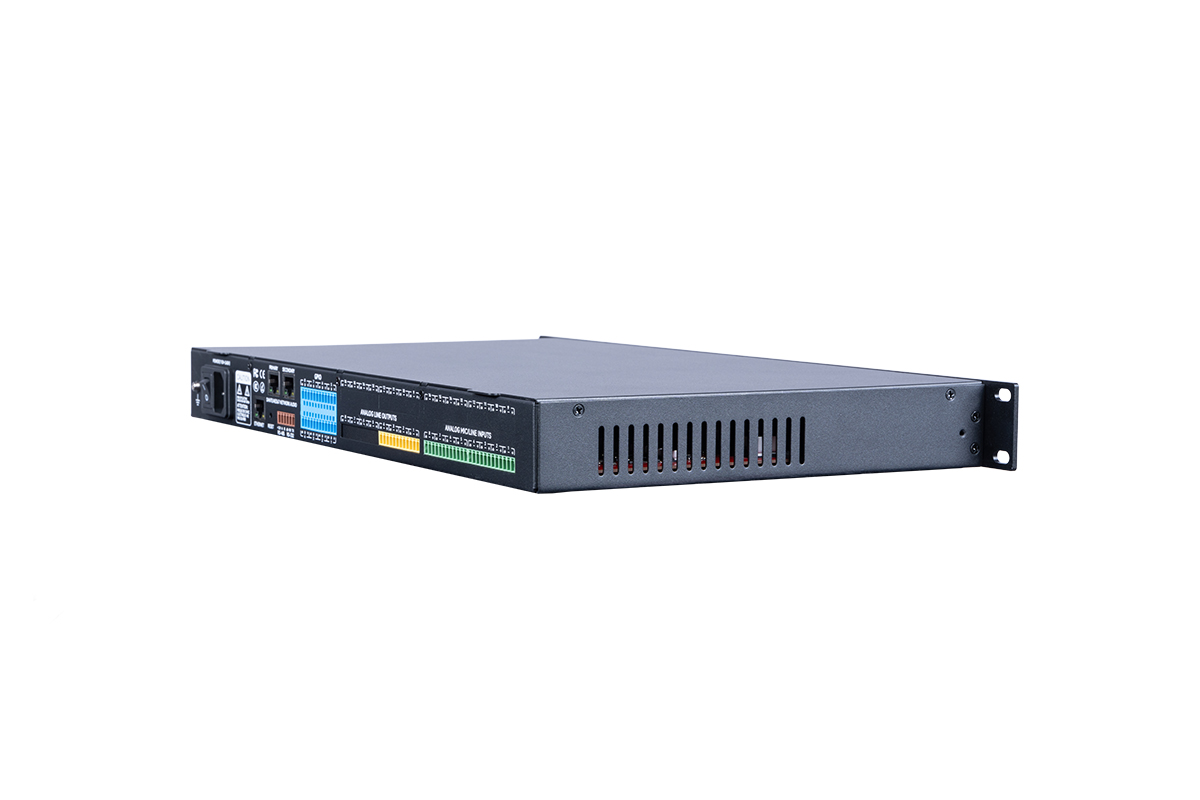

Epikon Buddy
The Epikon series represents cutting-edge audio technology, delivering unmatched flexibility and performance for modern AV systems. Buddy, a standout in the series, features 8 analog inputs, 4 analog outputs, 8 Dante inputs, and 8 Dante outputs, making it ideal for both live and installed applications.
SKU 8721082763011
1 / 6
Product details
With advanced DSP processing, adaptive echo cancellation, noise suppression, and feedback control, Buddy ensures crystal-clear audio in any environment. Fully controllable via TCP/IP and UDP, it offers seamless integration, centralized control, and effortless scalability.
Specifications
17 entries
Power
- Input voltage
- 110-240 V AC 50/60 Hz
Physical
- Dimensions (W × D × H)
- 482 × 260 × 45 mm
Inputs and outputs
- Dante channels (in × out)
- 8×8
- Analog channels (in × out)
- 8×4
- Phantom power
- +48 V/10mA max
Audio performance
- Frequency response
- ±0.5 dB(20~20 kHz)
- THD+N
- <-95 dB @ 17 dBu
- Dynamic range (input)
- 113 dB
- Dynamic range (output)
- 113 dB
- Channel isolation (1 kHz)
- 108 dB
- Input impedance (balanced)
- 5.4KΩ
- Output impedance (balanced)
- 600Ω
- Maximum level
- +18 dBu
- Input gain
- 0/3/6/9/12/15/18/21/24/27/30/33/36/39/42/45/48 dBu
Processing
- Processor
- ADI SHARC 21489@450 MHz SIM
- Sampling rate / bit depth
- 48K/24Bit
- System delay
- <3 ms
Documentation
Contact support for the current manual, DMX chart or fixture profile.
Request documentation
