Moving Light
FORIS BEAM 300
300 Watt Lamp - 2.4 Degrees - Dual Prism - Frost - Flower - IP65
SKU 8721082763073
1 / 9
Product details

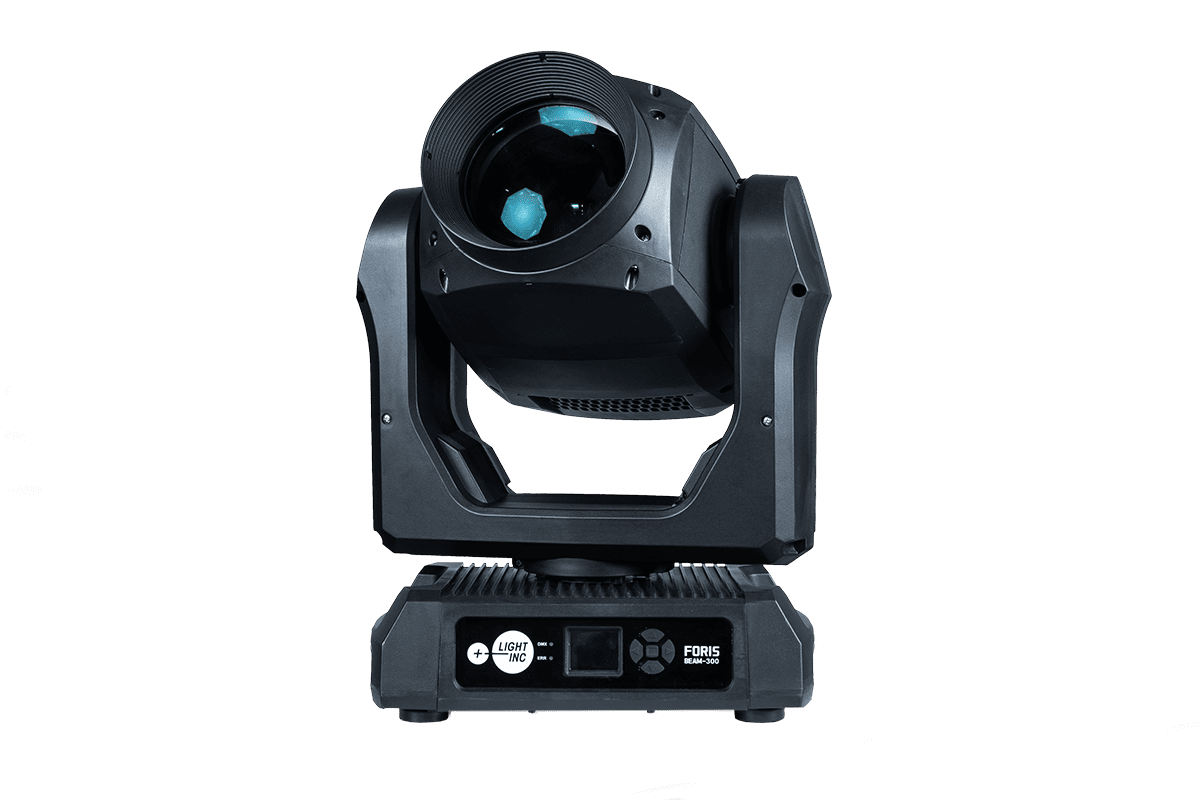

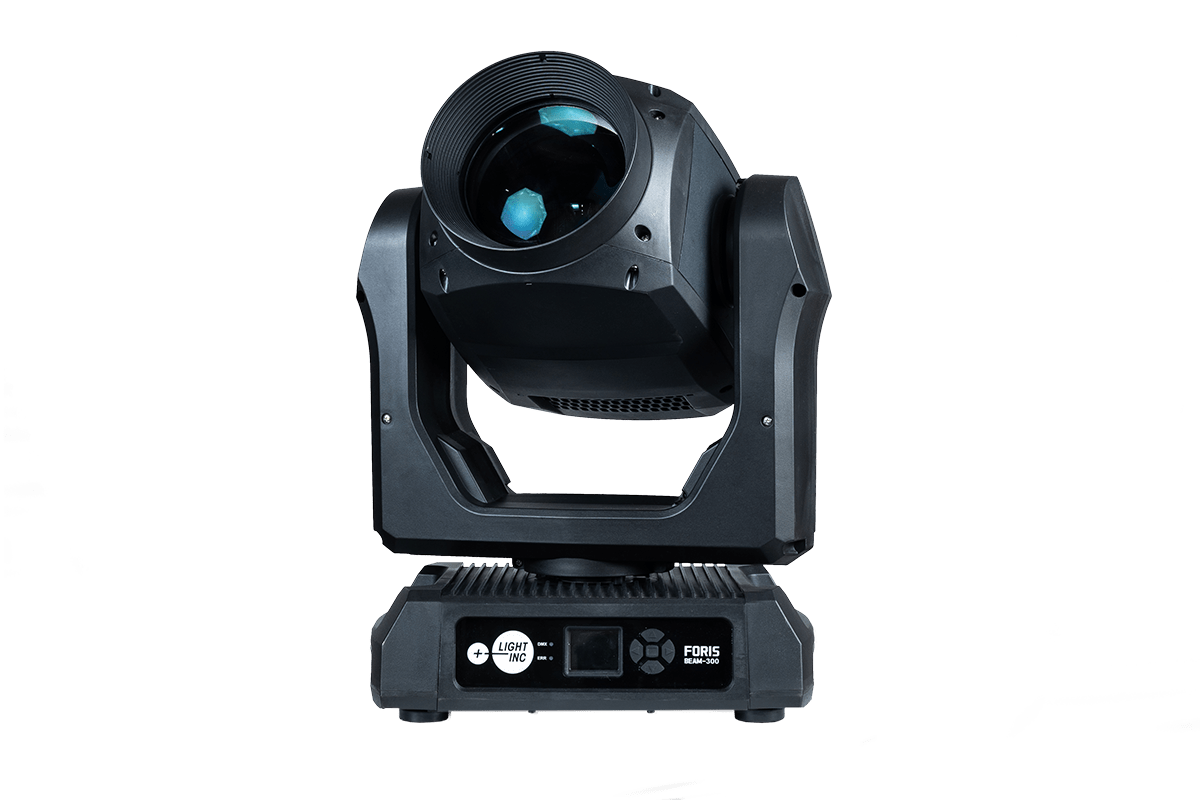

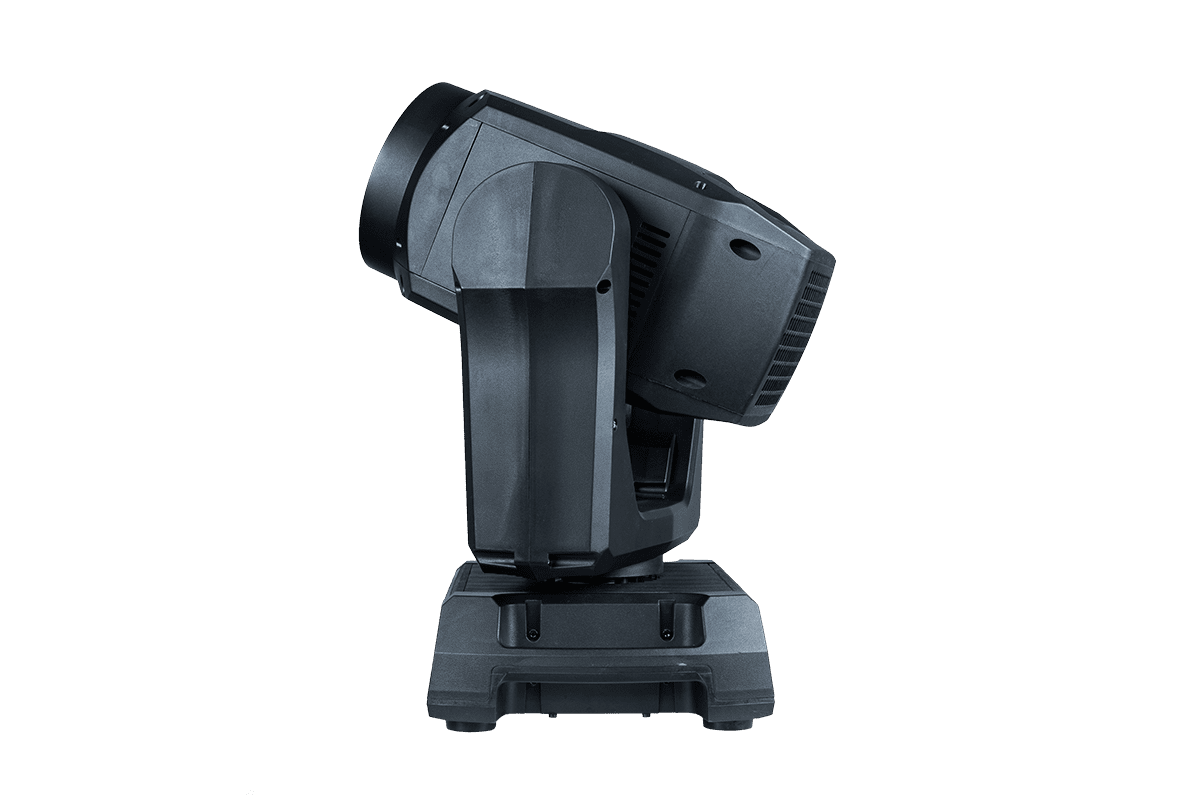

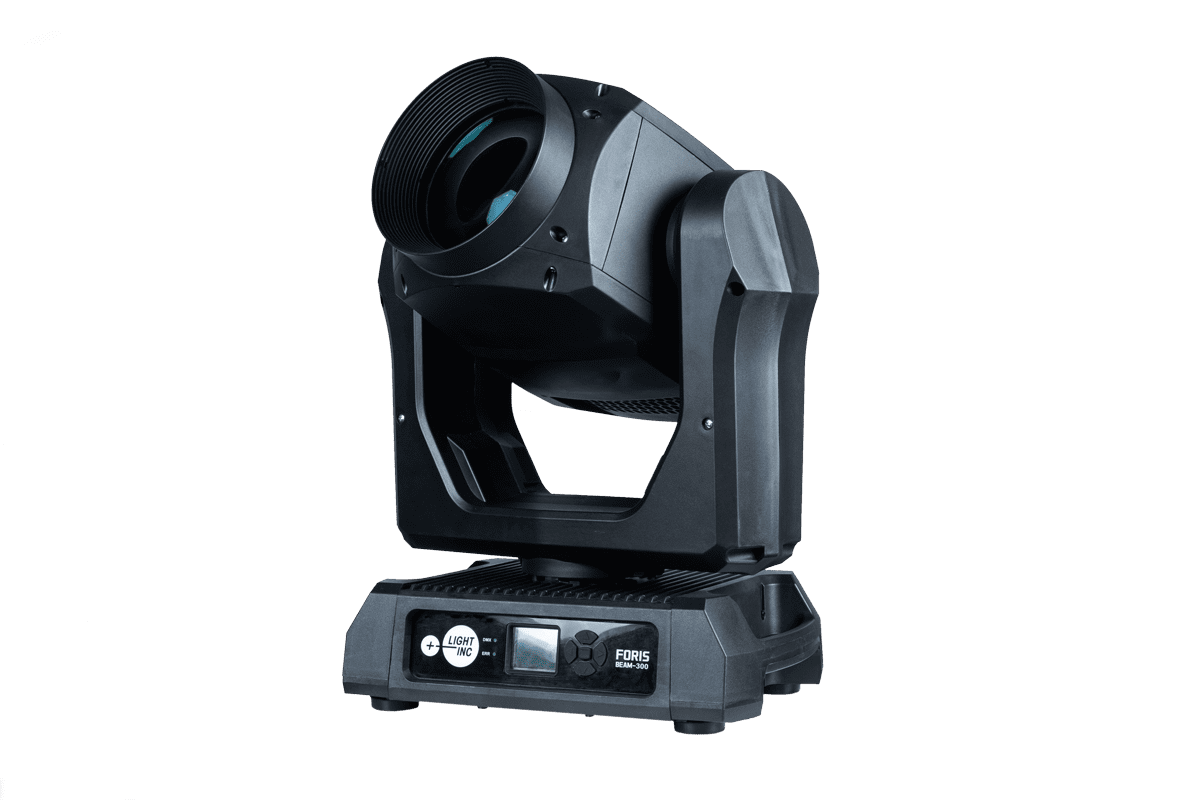

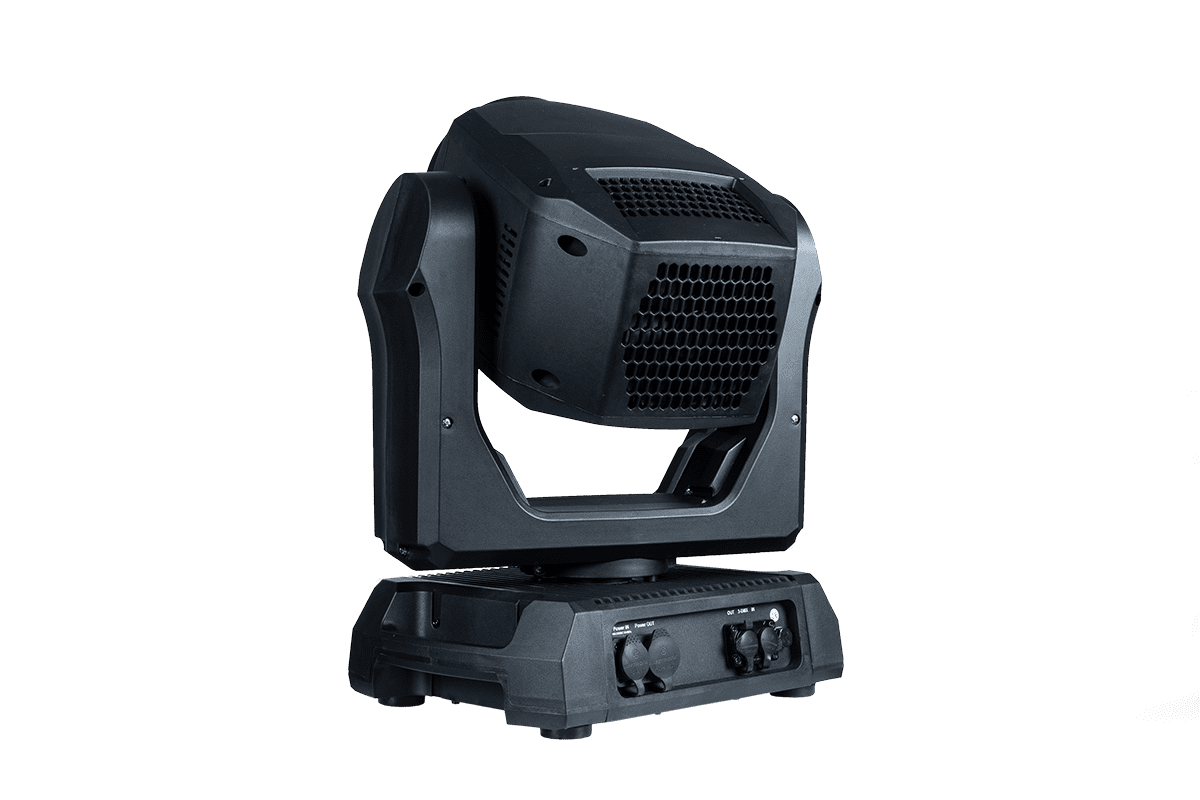

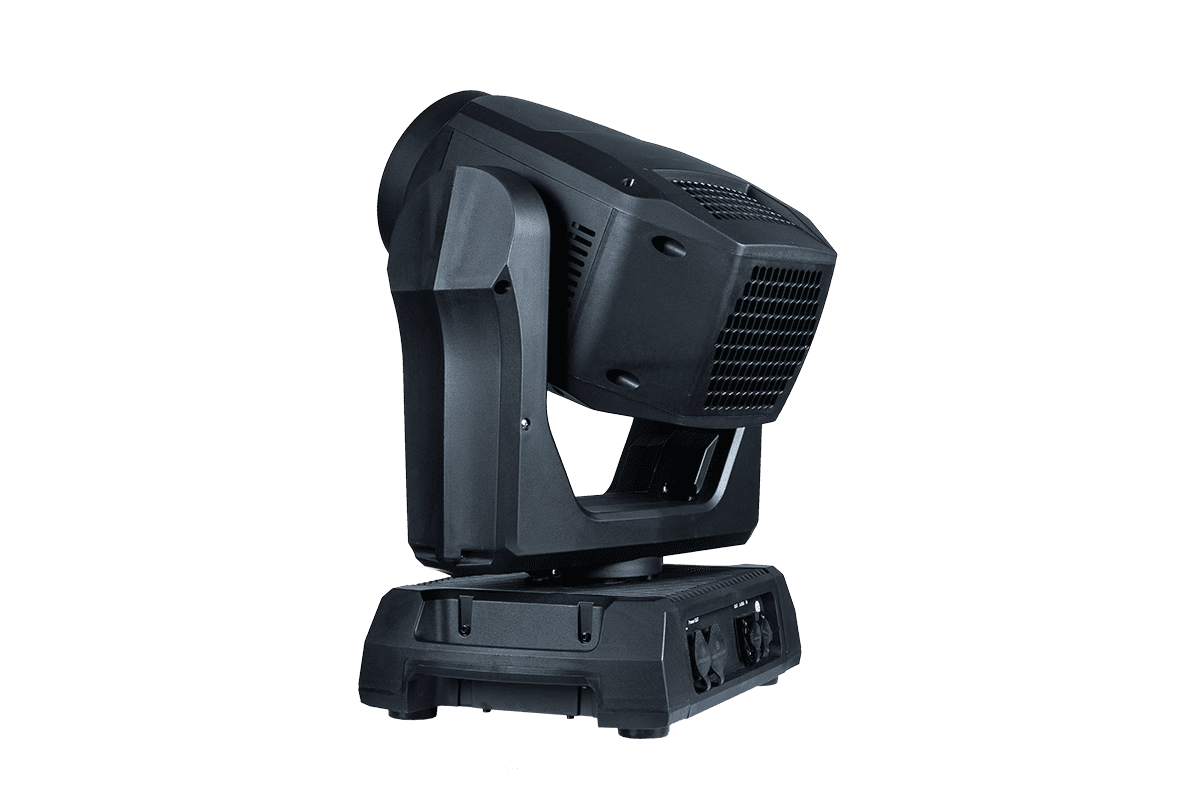

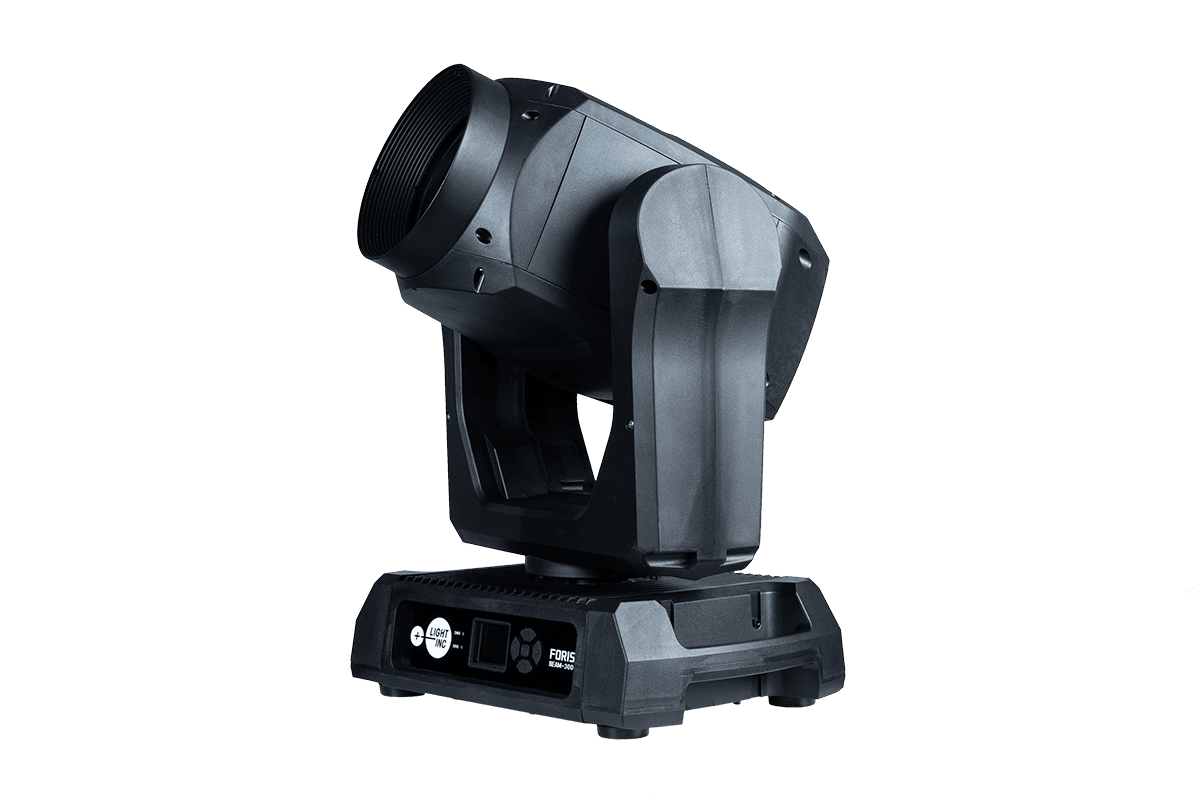

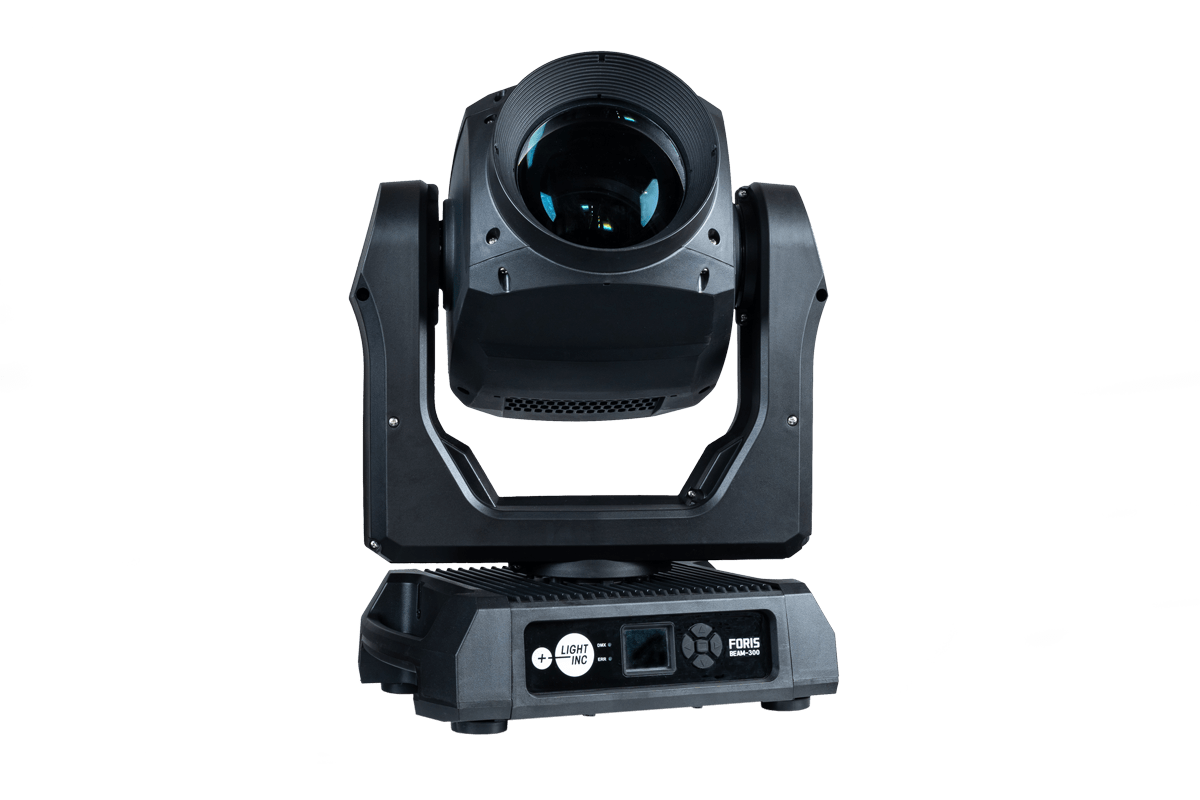

Powerful, quick and lightweight IP65 beam moving head with animation effects.
The Foris Beam 300 is built for outdoor and indoor use, combining a powerful 300W lamp with a narrow 1.7° beam and precise optics. With dual prisms, frost, and rich color mixing, it delivers stunning visual effects for any stage or event. Designed with a lightweight IP65-rated housing, it offers reliable performance even in challenging environments.
Specifications
55 entries
Light source and output
- Light source
- 300 W lamp, 6000 h lifetime
- Color temperature
- 8000 K
Optics
- Beam angle
- 1.7°
- Frost
- 1 frost wheel
Color
- Color wheel
- 14 colors + white, half-color and flow effects
- Multicolor wheel
- 1 multicolor wheel
Effects
- Prism
- Dual prism wheels, independently bi-rotating, combinable
- Gobo wheel
- 14 static gobos + white, shake & bidirectional rotation
Movement
- Pan / Tilt
- 540° / 270° (16-bit)
Control
- Control
- DMX512, Master/Slave, Auto
- DMX channels
- 16CH
- Dimming
- 0–100% linear
- Display
- LCD with 5-button menu
- RDM
- Ready
Connections
- Data connection
- XLR 5 pin in/out
- Power connection
- TRUE1 PowerCON in/out
Power
- Input voltage
- AC100–240 V, 50/60 Hz
- Power consumption
- 350 W
Physical
- Dimensions
- 388 × 256 × 533 mm
- Weight (net)
- 16.5 kg
- Housing
- Die-cast aluminum + plastic
- Cooling
- Automatic fan cooling
Protection
- Protection rating
- IP65 (waterproof)
Wheel tables and DMX values
DMX ranges and labels from the linked product manual.
Color Wheel
Manual ↓- DMX 0-4
- White
- DMX 5-8
- White + Red
- DMX 9-12
- Red
- DMX 13-17
- Red + Orange
- DMX 18-21
- Orange
- DMX 22-25
- Orange + Aquamarine
- DMX 26-29
- Aquamarine
- DMX 30-34
- Aquamarine + Dark Green
- DMX 35-38
- Dark Green
- DMX 39-42
- Dark Green + Green
- DMX 43-46
- Green
- DMX 47-51
- Green + Lavender
- DMX 52-55
- Lavender
- DMX 56-59
- Lavender + Pink
- DMX 60-63
- Pink
- DMX 64-68
- Pink + Yellow
- DMX 69-72
- Yellow
- DMX 73-76
- Yellow + Magenta
- DMX 77-81
- Magenta
- DMX 82-85
- Magenta + Blue
- DMX 86-89
- Blue
- DMX 90-93
- Blue + CTO260
- DMX 94-98
- CTO260 / CTO2
- DMX 99-102
- CTO260 + CTO190
- DMX 103-106
- CTO190 / CTO1
- DMX 107-110
- CTO190 + CTB8000
- DMX 111-115
- CTB8000
- DMX 116-119
- CTB8000 + Dark Blue
- DMX 120-123
- Dark Blue
- DMX 124-127
- Dark Blue + White
- DMX 128-191
- CCW Fast - Slow Rotation
- DMX 192-255
- CW Slow - Fast Rotation
