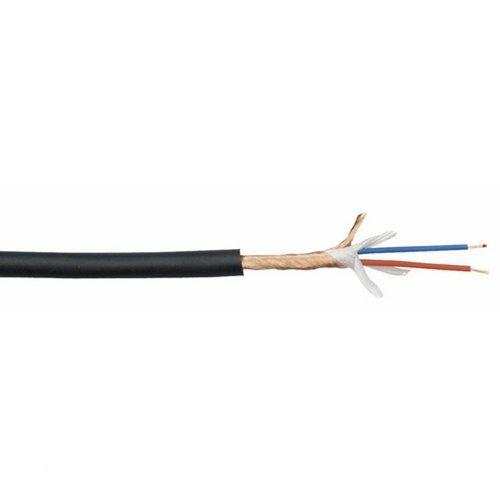

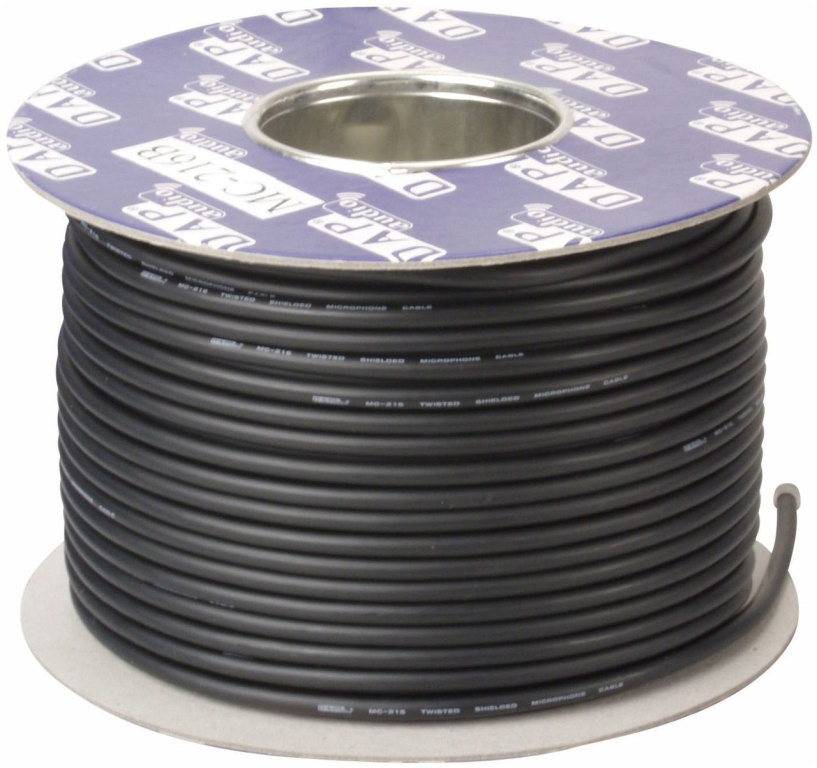

DAP - MC-216B Microfoonkabel zwart getwiste isolatie 100m rol
<p style="margin-top:0pt;margin-bottom:0pt;">Zwarte microfoonkabel met getwiste afscherming, rol 100 meter</p>
SKU D9431B
1 / 2
Product details
Conductor drains Ø mm: OFC 28 x0,10
Conductor insulation: PE red+blue Conductor insulation Ø in mm: 1.5
Filler material: paper + cotton yarn
1st shield:OFC twisted 83x0,12
2nd shield:-
Outer isolation: PVC black,blue,red,yellow+green
Outer isolation Ø in mm: 6
Conductor resistance: 80 Ohm/Km
Shield resistance: 25 Ohm/Km
Capacity Inner conductor: 45 pF/m
Capacity Inner cond Shield / Inner cond: 112 pF/m
Working temperature min / max -20~60 °C
Working Voltage overflash 30V
Nom. Impedance 107 Ohm
Specifications
Additional data
- Aansluitingen
- � Conductor drains � mm: OFC 28 x 0,10 <br />� Conductor insulation: PE red+blue <br />� Conductor insulation: 1,5 (� in mm)<br />� Filler material: paper + cotton yarn<br />� 1st shield: OFC twisted 83 x 0,12<br />� 2nd shield: -<br />� Outer isolation: PVC black, blue, red, <br /> yellow, green<br />� Outer isolation � in mm: 6<br /><br />Conductor resistance: 80 Ohm/Km<br />Shield resistance: 25 Ohm/Km<br />Capacity Inner conductor: 60 pF/m<br />Cap. Inner conduct. Shield <br />/ Inner conduc
- Gewicht (kg)
- 5.34
- Hoogte
- 0.155
- Diepte
- 0.24
- Breedte
- 0.24
