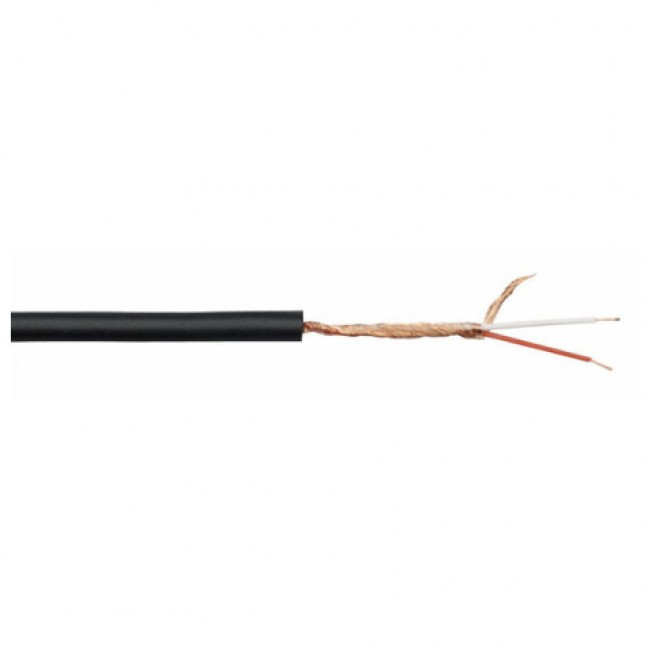

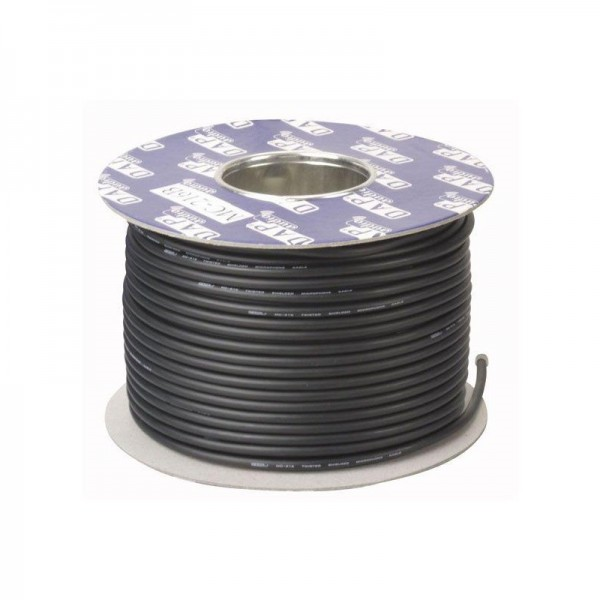

DAP - MC-206B Microfoonkabel 6mm 100m rol
<p style="margin-top:0pt;margin-bottom:0pt;line-height:14pt;"><span style="font-family:'verdana';font-size:9pt;color:#111111;background-color:#FFFFFF;">Zwarte 6mm betaalbare microfoonkabel, rol 100 meter</span></p>
SKU D9435B
1 / 2
Product details
• Conductor drains Ø mm: OFC 10 x 0,10
• Conductor insulation: PE red+blue
• Conductor insulation: 1,0 (Ø in mm)
• Filler material: -
• 1st shield: OFC twisted 40 x 0,12
• 2nd shield: -
• Outer isolation: PVC black
• Outer isolation Ø in mm: 6
Conductor resistance: 160 Ohm/Km
Shield resistance: -
Capacity Inner conductor: 60 pF/m
Cap. Inner conduct. Shield / Inner conduct.: -
Working temperature min. / max.: -20~60 °C
Working Voltage overflash: 30V
Nom Impedance: 110 Ohm
Specifications
Additional data
- Aansluitingen
- � Conductor drains � mm: OFC 10 x 0,10 <br />� Conductor insulation: PE red+blue <br />� Conductor insulation: 1,0 (� in mm)<br />� Filler material: -<br />� 1st shield: OFC twisted 40 x 0,12<br />� 2nd shield: -<br />� Outer isolation: PVC black<br />� Outer isolation � in mm: 6<br /><br />Conductor resistance: 160 Ohm/Km<br />Shield resistance: -<br />Capacity Inner conductor: 60 pF/m<br />Cap. Inner conduct. Shield <br />/ Inner conduct.: -<br />Working temperature min. / max.: -20~60 �C<br /
- Gewicht (kg)
- 4.48
- Hoogte
- 0.16
- Diepte
- 0.24
- Breedte
- 0.24
