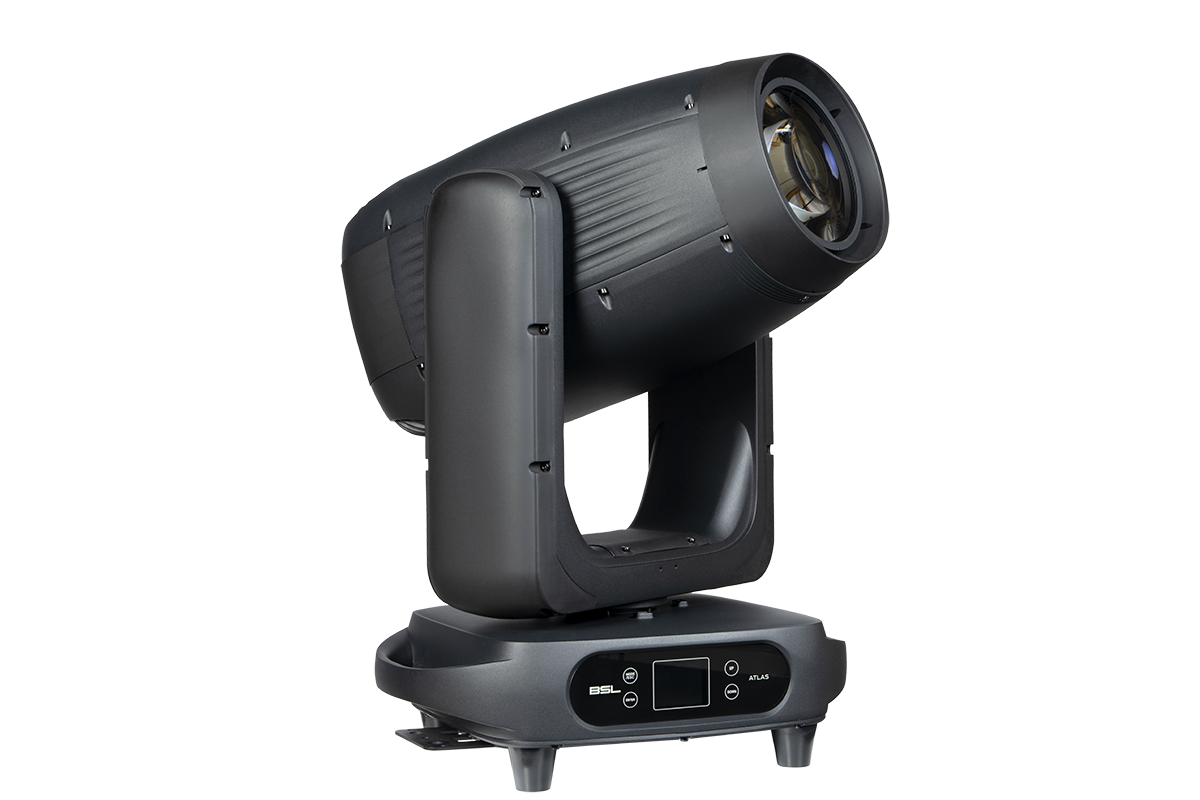

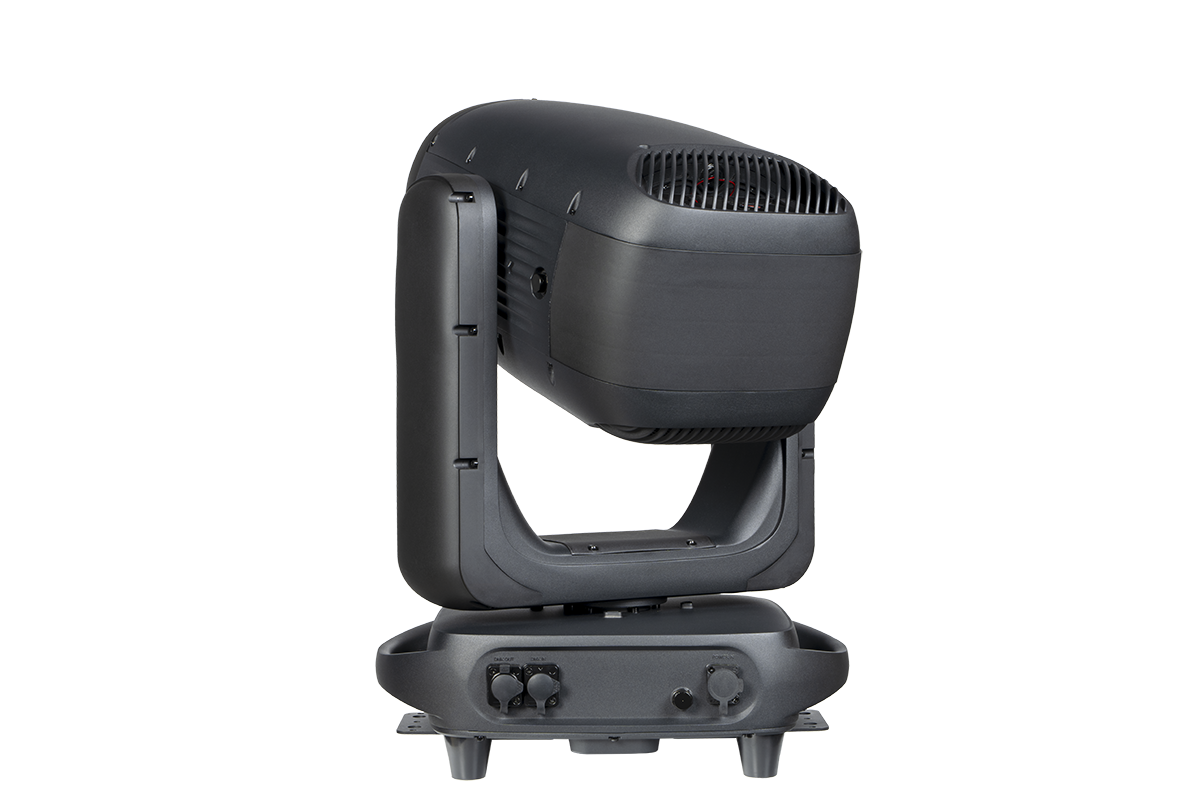

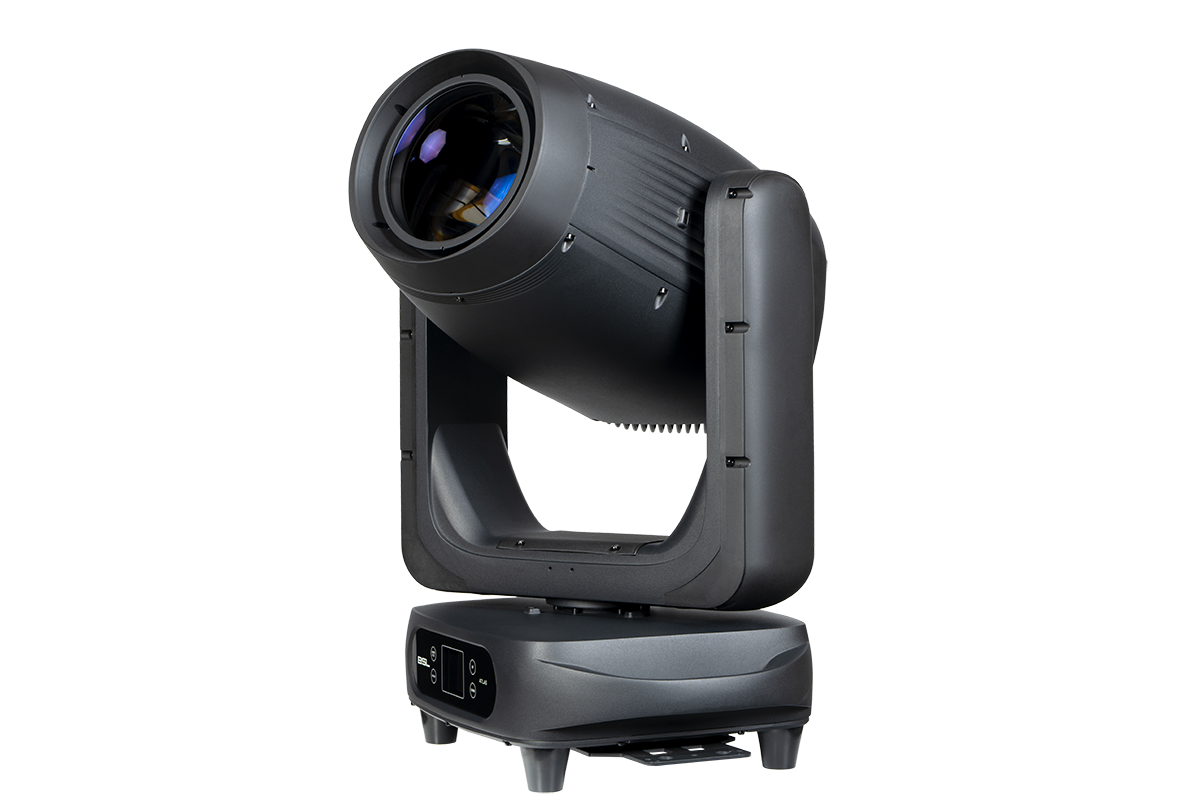

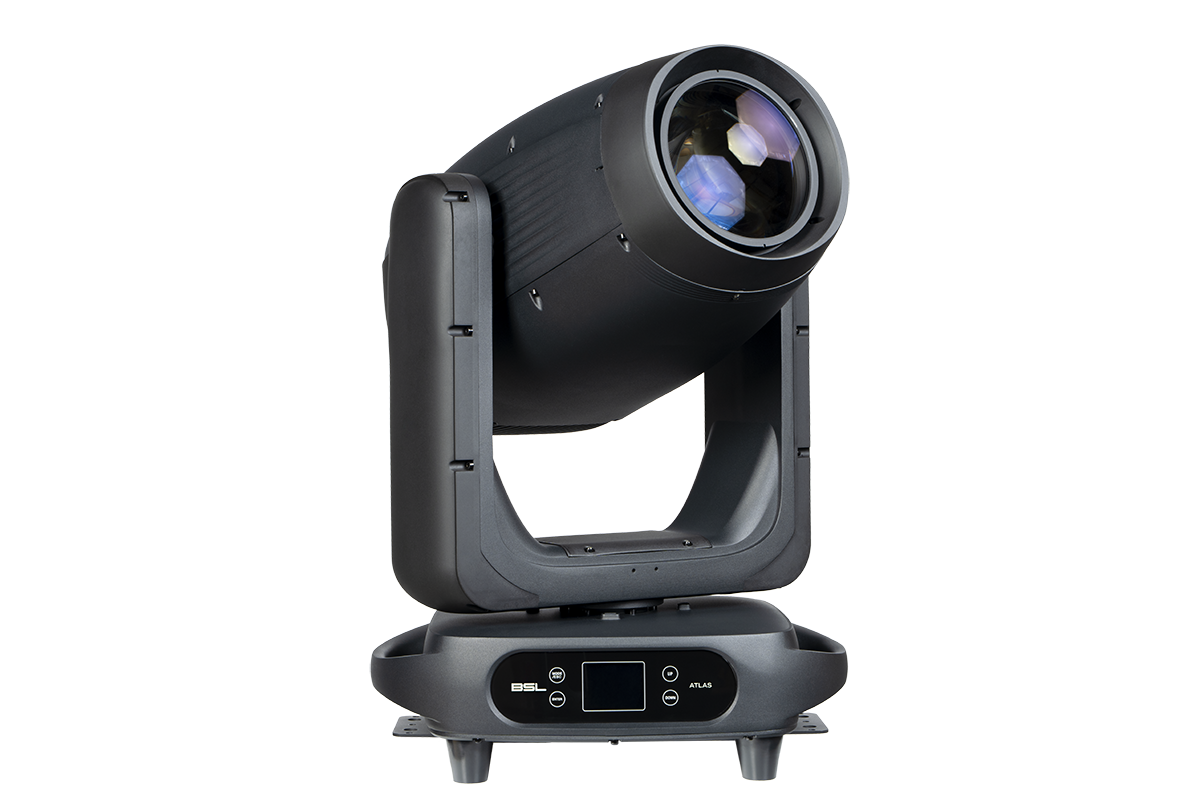

ATLAS
- 38,000-lumen white-light engine
- Fixture output up to 26,000 lumens
- 3.8°–50° linear zoom
- IP66 rated
ATLAS
The performance professionals expect.
ATLAS is a high-output IP66 moving head with advanced framing and precision optics. Built for theatre, touring, broadcast and live event production, it combines professional output, a broad linear zoom and an extensive effects package in a rugged enclosure for indoor and outdoor applications.
Product details
- Dynamic animation wheel
- Gobo indexing and shake effect
- Linear CTO correction
- Heavy frost effect
- Foldable rigging clamps
- Mechanical tilt lock
- RDM compatible
- Optional Art-Net support
Specifications
20 entries
Light source and output
- Light source
- 38,000-lumen white-light engine
- Fixture output
- Up to 26,000 lumens
- Color temperature
- Approx. 7200 K
- Color temperature with High CRI filter
- Approx. 5400 K
- CRI
- >72
- CRI with High CRI filter
- Up to 95
Optics
- Zoom
- 3.8°–50° linear zoom
- Focus
- Motorized
Color
- Color mixing
- CMY
- Color wheel
- 5 colors + CRI95+ + CTB + Open
Effects
- Rotating gobo wheel
- 7 interchangeable rotating gobos + Open
- Framing system
- 4 individually controllable shutters
- Prism
- 5-facet rotating circular prism
Movement
- Pan / Tilt
- 540° / 270°
- Positioning
- 16-bit
Control
- Control
- DMX512 / RDM
Power
- Power consumption
- 780 W
Physical
- Dimensions
- 418 × 300 × 655 mm
- Weight
- 26 kg
Protection
- Protection rating
- IP66
Documentation
Contact support for the current manual, DMX chart or fixture profile.
Request documentation
