Moving Light
FORIS WASH 760
7 x 60 Watt RGBL LED- 4,5 to 48 Degrees - Ring effect - IP65
SKU 8721082763097
1 / 11
Product details

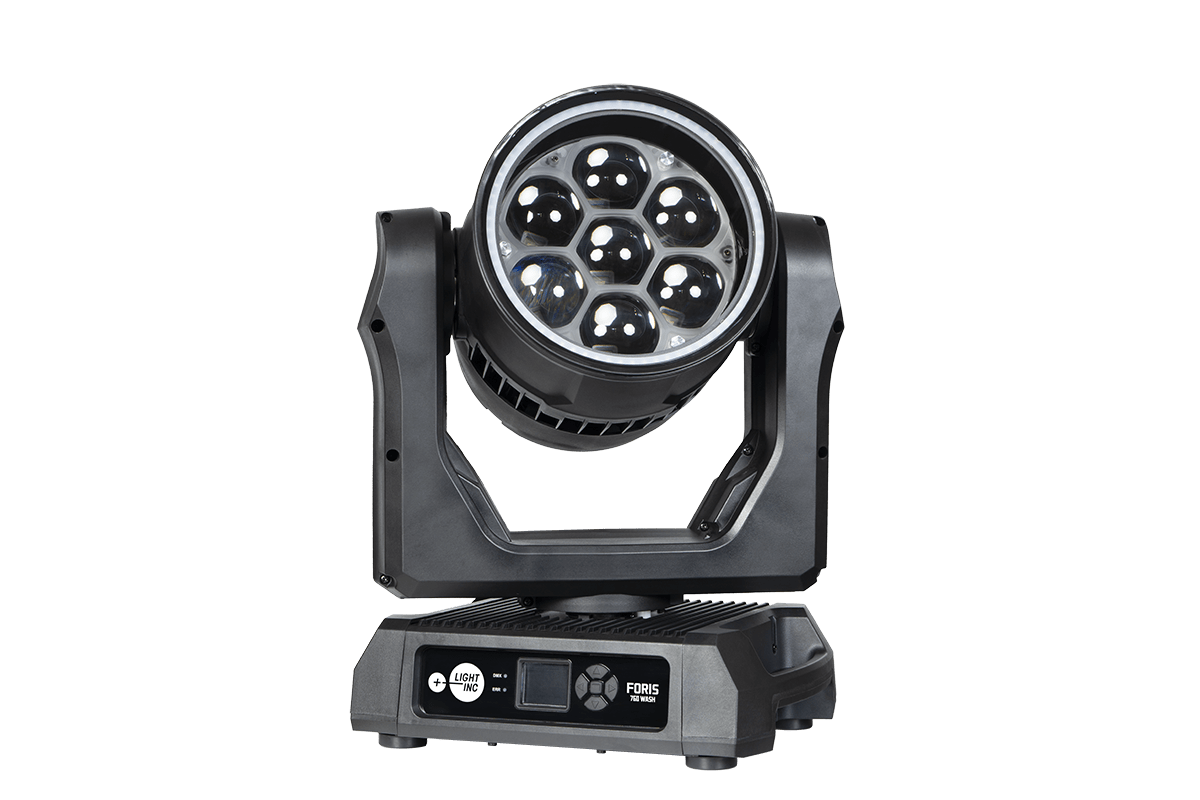

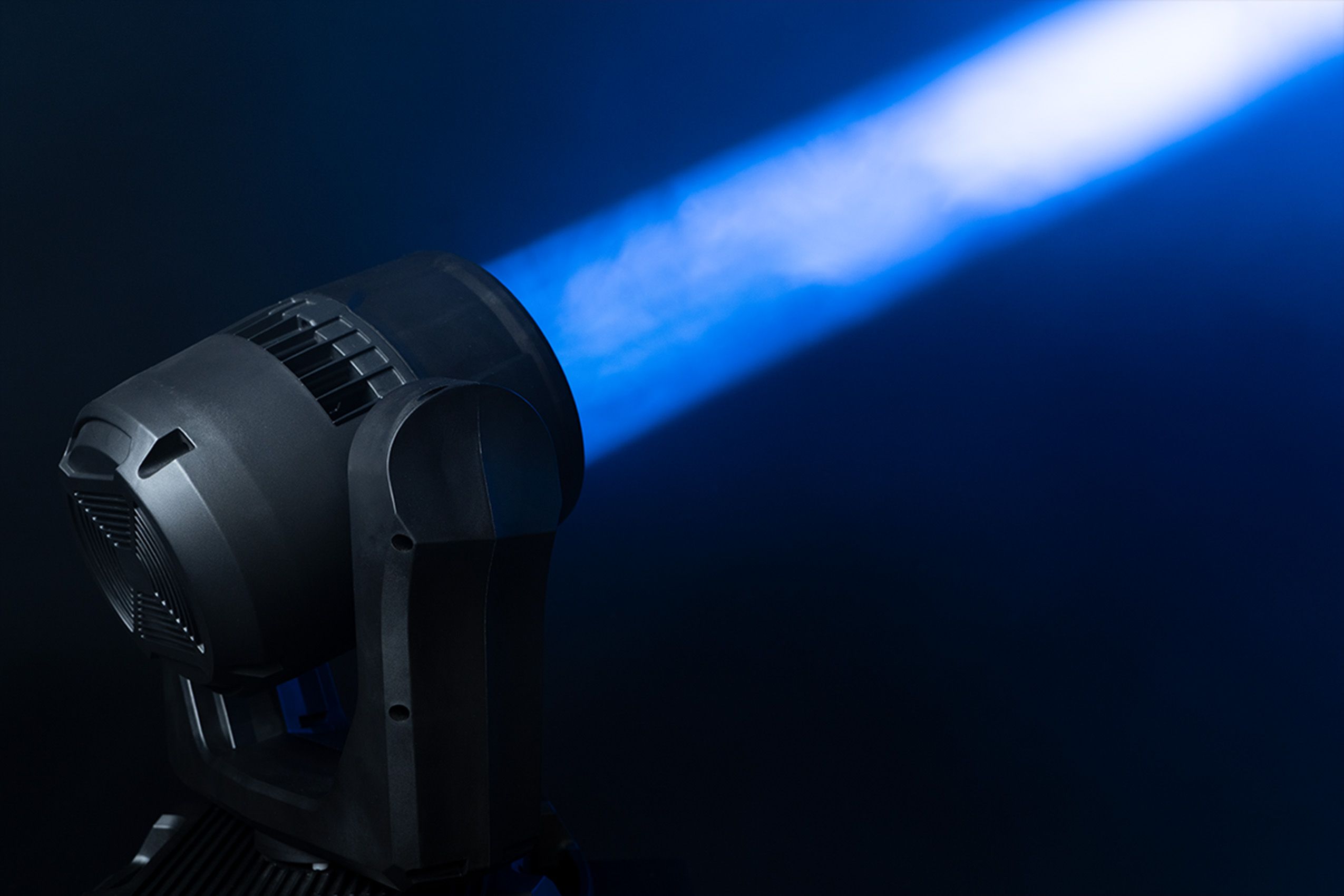

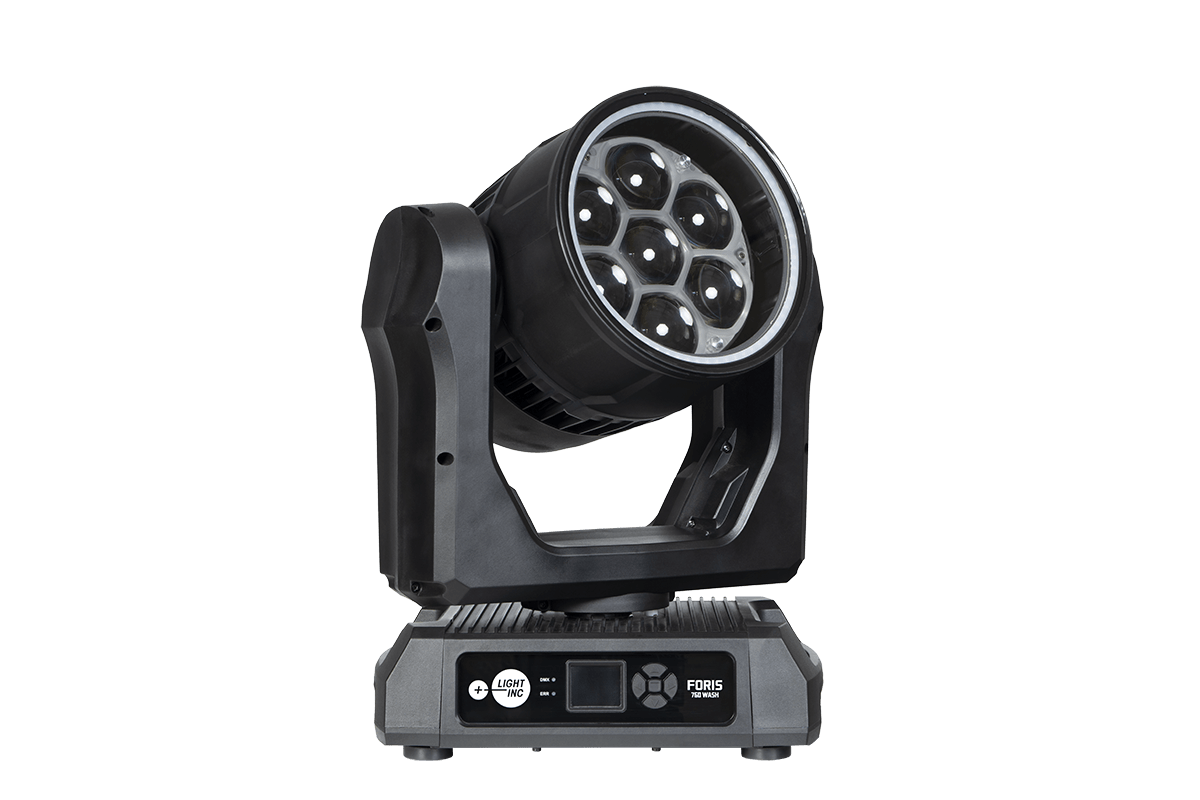

Powerful IP65 wash moving head with fast zoom and vivid RGBL colors.

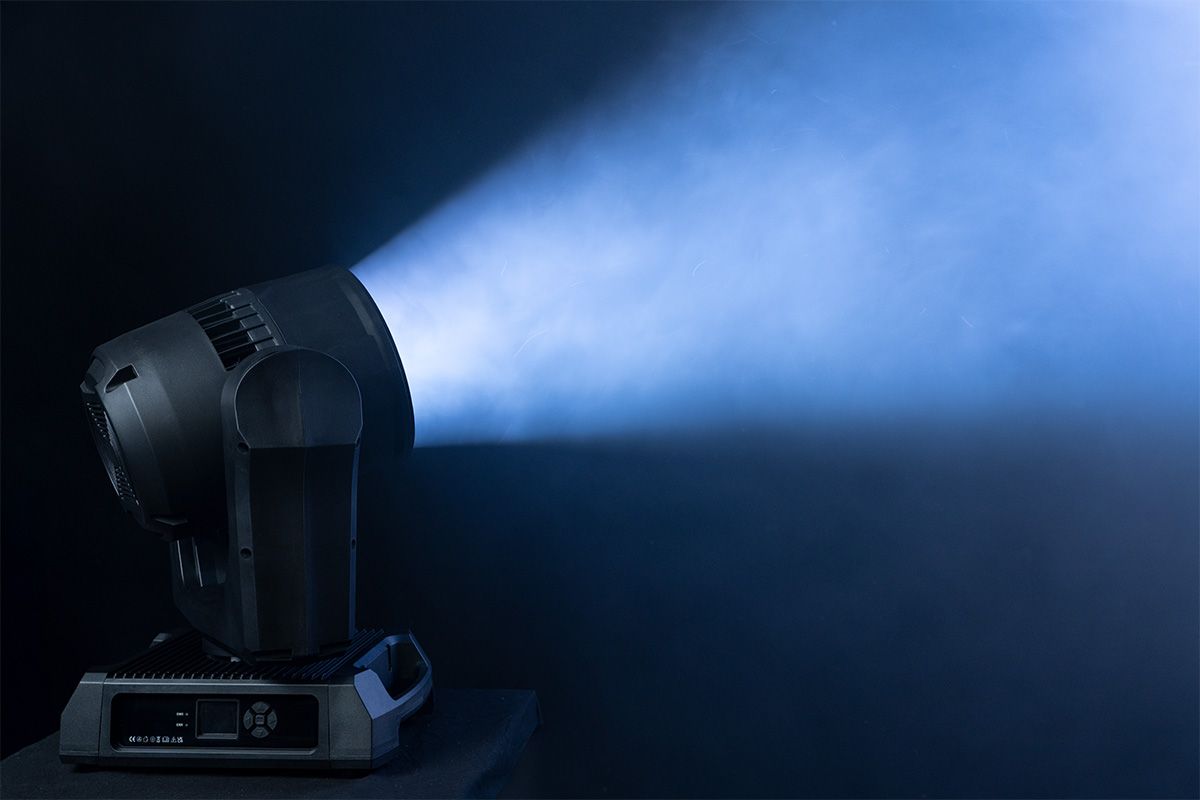

The Foris Wash 760 is designed for powerful and flexible wash effects in both indoor and outdoor environments. Equipped with 7 × 60W RGBL LEDs and a zoom range from 3.4° to 46°, it delivers smooth color mixing, wide coverage, and sharp movement control. The fast pan, tilt, and zoom functions make it ideal for dynamic stages, events, and installations. With its lightweight IP65-rated housing and decorative RGB LED ring effects, the Foris Wash 760 combines creative performance with reliable all-weather use.
Specifications
71 entries
Light source and output
- Light source
- 7 × 60 W RGBL LEDs
- Color temperature
- 2,700 – 8,000 K
- CRI
- 82
- Lifetime
- 20.000 HRS
Optics
- Zoom
- 3.4° – 46°
- Optics
- High-efficiency light-concentrating guide column with integrated high-transmittance acrylic lens
Color
- Color mixing

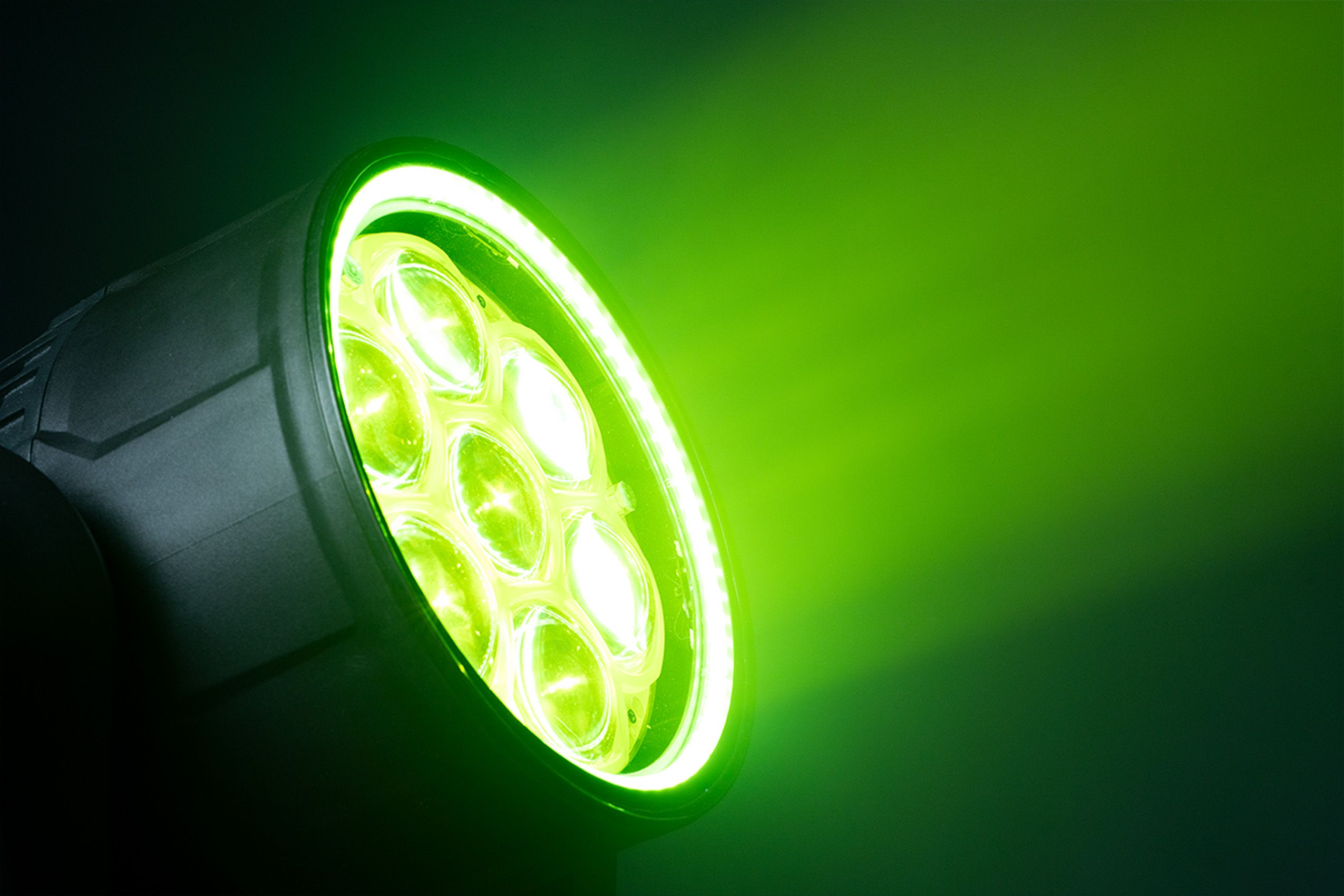

- Infinite colour mixing LED Ring Effects: Decorative RGB LED ring capable of producing various flowing light effects
Effects
- Strobe
- 1 – 20 Hz, variable speed

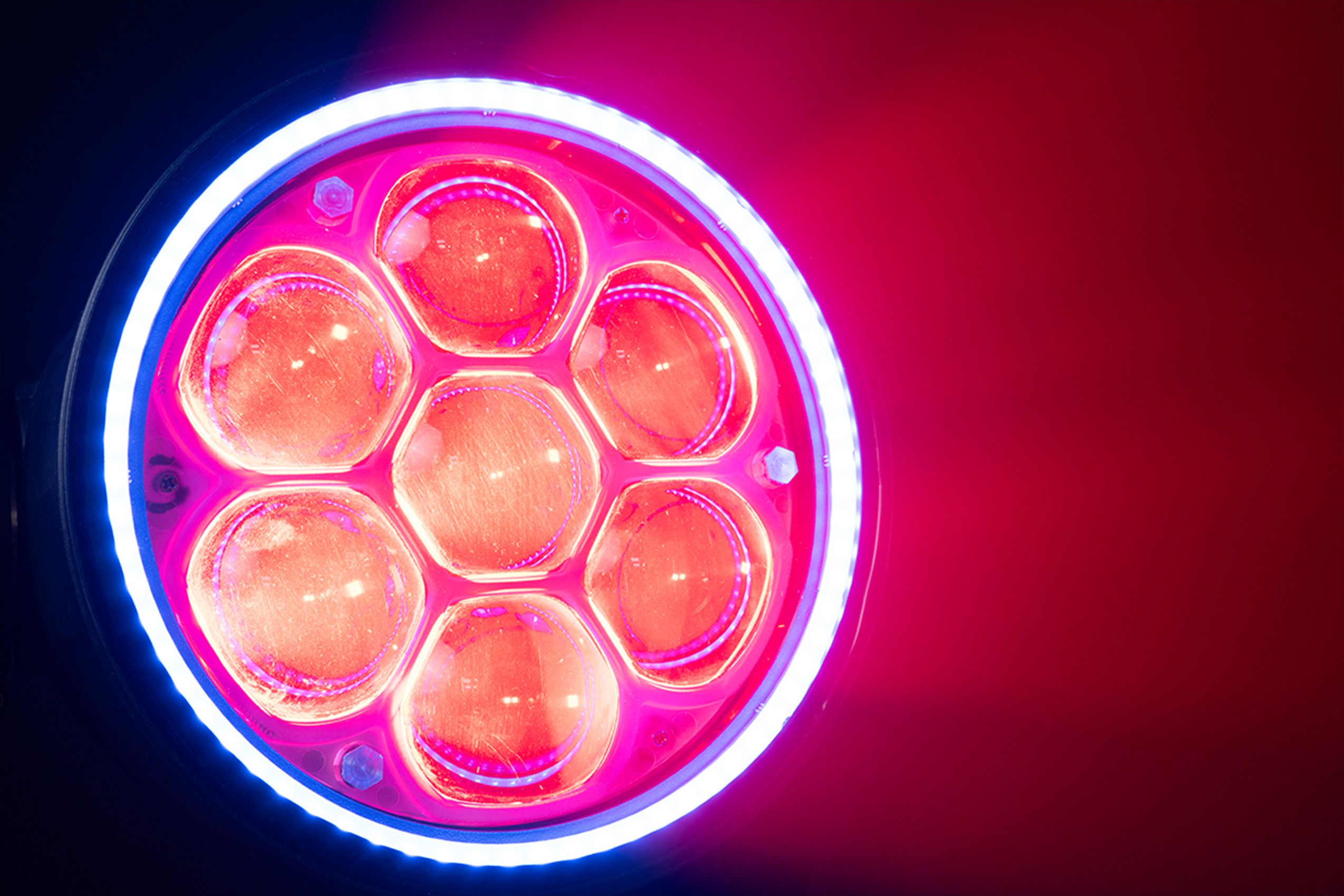

- LED ring
- 72 × 0.12 W RGB 3-in-1 LEDs
Movement
- Pan
- 540°, 16-bit resolution
- Tilt
- 270°, 16-bit resolution
Control
- Control
- Auto, DMX512, RDM
- DMX channels
- 21 / 28 / 65 CH
- Dimming
- 0 – 100% smooth dimming
- Display
- LCD display with 5 buttons
- RDM
- Ready

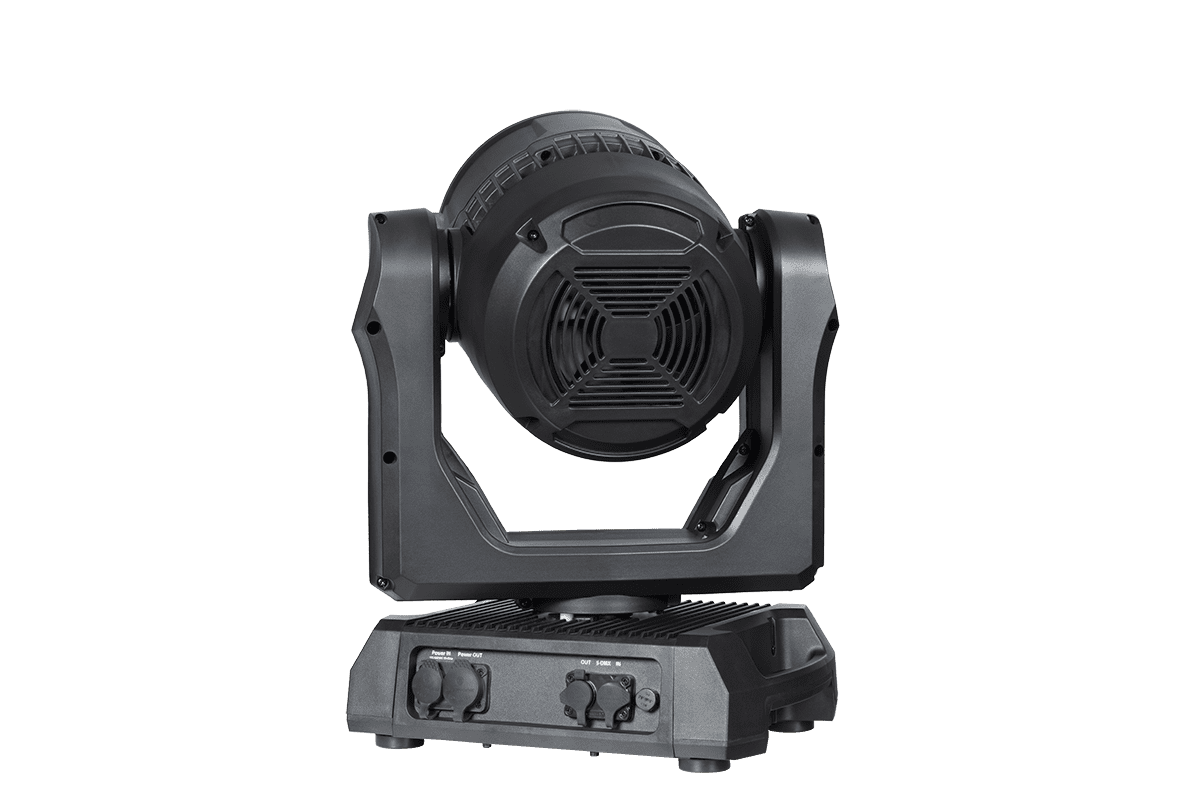

Connections
- Data connection
- 5-pin XLR DMX in/out
- Power connection
- TRUE1 Powercon in/out
Power
- Input voltage
- AC90–260 V, 50/60 Hz
- Power consumption
- 470 W
Physical
- Dimensions
- 388 × 256 × 491 mm
- Weight (net)
- 15.2 kg
- Cooling
- Low-noise waterproof cooling via integrated die-cast aluminium heat sink
Protection
- Protection rating
- IP65
Wheel tables and DMX values
DMX ranges and labels from the linked product manual.
color preset
Manual ↓- DMX 16-20
- Color 1 Red 1
- DMX 21-25
- Color 2 Magenta
- DMX 26-30
- Color 3 Red 2
- DMX 41-45
- Color 4 Pink 1
- DMX 46-50
- Color 5 Rose pink
- DMX 56-60
- Color 6 Light pink
- DMX 61-65
- Color 7 Red 3
- DMX 66-70
- Color 8 Magenta 2
- DMX 76-80
- Color 9 Warm white
- DMX 81-85
- Color 10 Yellow
- DMX 106-110
- Color 11 Green
- DMX 116-120
- Color 12 Cyan
- DMX 136-140
- Color 13 Sea green
- DMX 141-145
- Color 14 Light blue
- DMX 146-150
- Color 15 Medium blue
- DMX 156-160
- Color 16 Cold white
- DMX 161-165
- Color 17 Light cyan
- DMX 181-185
- Color 18 Purple
- DMX 196-200
- Color 19 Pale rose
- DMX 201-205
- Color 20 Dark magenta
- DMX 216-220
- Color 21 Flame red
- DMX 221-225
- Color 22 Light pink 2
- DMX 236-240
- Color 23 Rose 2
- DMX 241-245
- Color 24 Red 4
Ring color effect
Manual ↓- DMX 0-10
- Closed
- DMX 11-20
- Red
- DMX 21-30
- Green
- DMX 31-40
- Blue
- DMX 41-50
- Orange
- DMX 51-60
- Cyan
- DMX 61-70
- Yellow
- DMX 71-80
- Purple
- DMX 81-90
- White
- DMX 91-100
- Macro 1
- DMX 101-110
- Macro 2
- DMX 111-120
- Macro 3
- DMX 121-130
- Macro 4
- DMX 131-140
- Macro 5
- DMX 141-150
- Macro 6
- DMX 151-160
- Macro 7
- DMX 161-170
- Macro 8
- DMX 171-180
- Macro 9
- DMX 181-190
- Macro 10
- DMX 191-200
- Macro 11
- DMX 201-210
- Macro 12
- DMX 211-220
- Macro 13
- DMX 221-255
- Macro 14
